Каталог

Ближний Восток

Модель

AVANZA

VIN

Дата

2004/08

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI

Кузов

VAN

Класс

S TYPE

Фрейм

F601

КПП

АКПП, 4 ступени

Опции

правый руль WITH VVT FOR THAILAND PS1

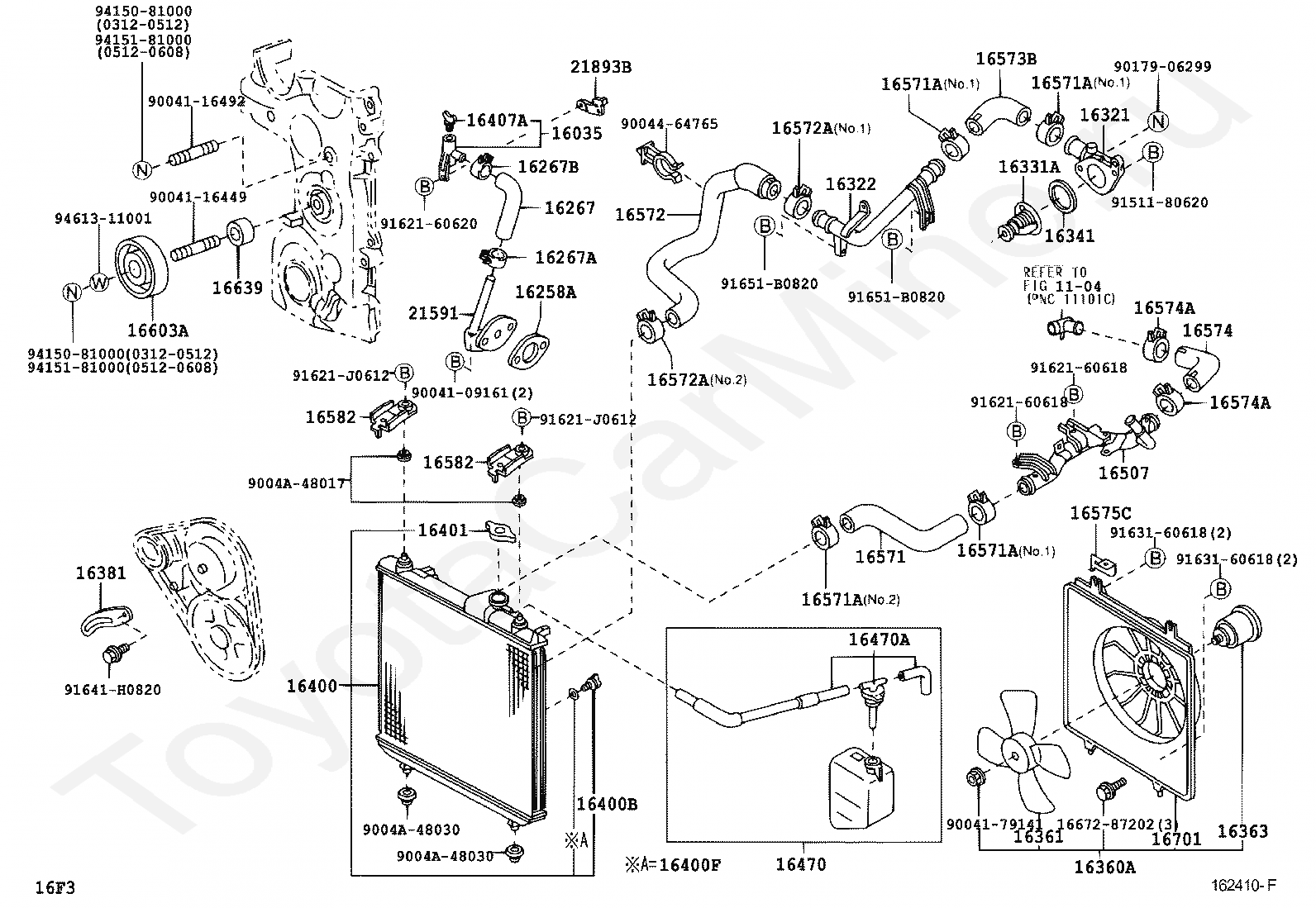

Радиатор и шланги TOYOTA AVANZA







Код

Описание

1104

переход к группе запчастей

16035

JOINT, WATER HOSE

16258A

GASKET(FOR HEATER RETURN)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16321

INLET, WATER

16322

PIPE, WATER INLET

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16360A

FAN ASSY, W/MOTOR

16361

FAN

16363

MOTOR, COOLING FAN

16381

BAR, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16407A

COCK SUB-ASSY, RADIATOR DRAIN

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16507

PIPE SUB-ASSY, RADIATOR

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16573B

HOSE, RADIATOR, NO.3

16574

HOSE, RADIATOR, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16582

BRACKET, RADIATOR, NO.1

16582

BRACKET, RADIATOR, NO.1

16603A

PULLEY SUB-ASSY, IDLER, NO.1

16639

SPACER, IDLER PULLEY

1667287202

Крепеж

16701

SHROUD SUB-ASSY, FAN

21591

PLATE, WATER BY-PASS

21893B

BRACKET

9004109161

Крепеж

9004116449

Крепеж

9004116492

Крепеж

9004179141

Крепеж

9004464765

Крепеж

9004A48017

Крепеж

9004A48030

Крепеж

9004A48030

Крепеж

9017906299

Крепеж

9151180620

Крепеж

9162160618

Крепеж

9162160618

Крепеж

9162160620

Крепеж

91621J0612

Крепеж

91621J0612

Крепеж

9163160618

Крепеж

9163160618

Крепеж

91641H0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

9415081000

Крепеж

9415081000

Крепеж

9415181000

Крепеж

9415181000

Крепеж

9461311001

Крепеж

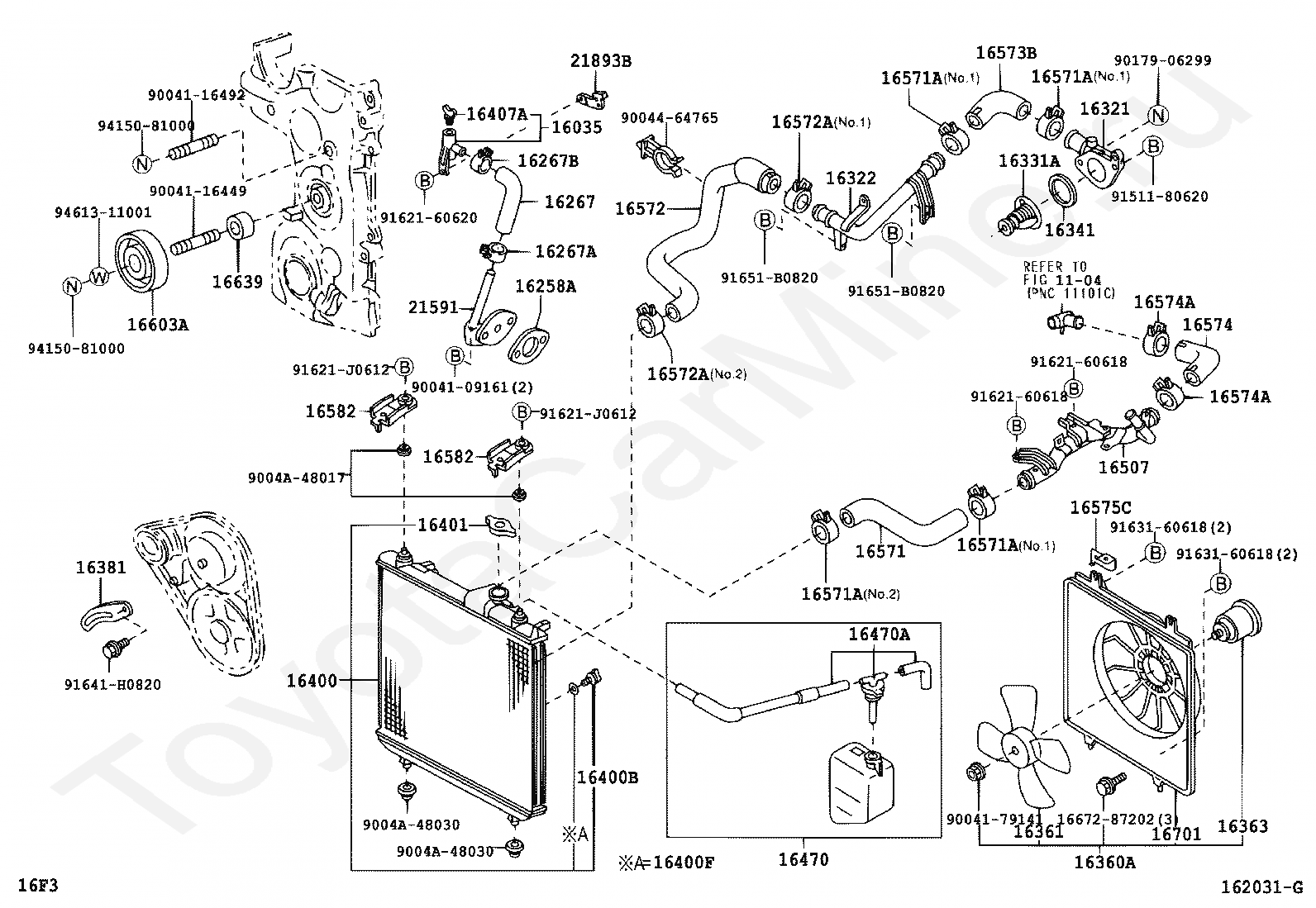

Код

Описание

1104

переход к группе запчастей

16035

JOINT, WATER HOSE

16258A

GASKET(FOR HEATER RETURN)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16321

INLET, WATER

16322

PIPE, WATER INLET

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16360A

FAN ASSY, W/MOTOR

16361

FAN

16363

MOTOR, COOLING FAN

16381

BAR, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16407A

COCK SUB-ASSY, RADIATOR DRAIN

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16507

PIPE SUB-ASSY, RADIATOR

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16573B

HOSE, RADIATOR, NO.3

16574

HOSE, RADIATOR, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16582

BRACKET, RADIATOR, NO.1

16582

BRACKET, RADIATOR, NO.1

16603A

PULLEY SUB-ASSY, IDLER, NO.1

16639

SPACER, IDLER PULLEY

1667287202

Крепеж

16701

SHROUD SUB-ASSY, FAN

21591

PLATE, WATER BY-PASS

21893B

BRACKET

9004109161

Крепеж

9004116449

Крепеж

9004116492

Крепеж

9004179141

Крепеж

9004464765

Крепеж

9004A48017

Крепеж

9004A48030

Крепеж

9004A48030

Крепеж

9017906299

Крепеж

9151180620

Крепеж

9162160618

Крепеж

9162160618

Крепеж

9162160620

Крепеж

91621J0612

Крепеж

91621J0612

Крепеж

9163160618

Крепеж

9163160618

Крепеж

91641H0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

9415081000

Крепеж

9415081000

Крепеж

9461311001

Крепеж

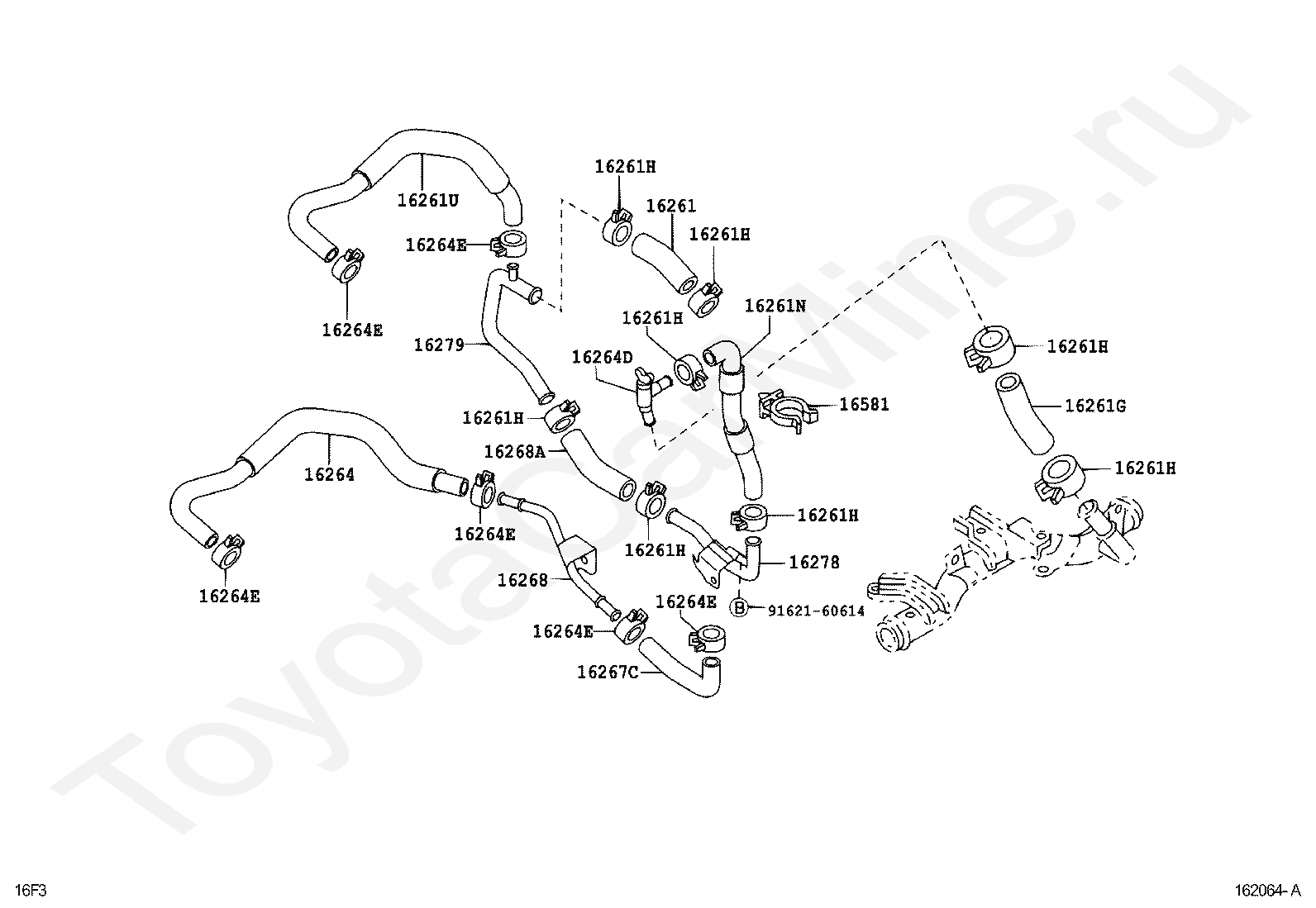

Код

Описание

16261

HOSE, WATER BY-PASS

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261N

HOSE, WATER BY-PASS, NO.2

16261U

WATER BY-PASS HOSE NO.1, HEAT STRAGE

16264

HOSE, WATER BY-PASS, NO.2

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267C

HOSE, WATER BY-PASS, NO.4

16268

PIPE, WATER BY-PASS, NO.1

16268A

HOSE(FOR WATER BY-PASS PIPE)

16278

PIPE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16581

CLAMP, HOSE(FOR WATER HOSE)

17182A

ORIFICE, WATER

9162160614

Крепеж

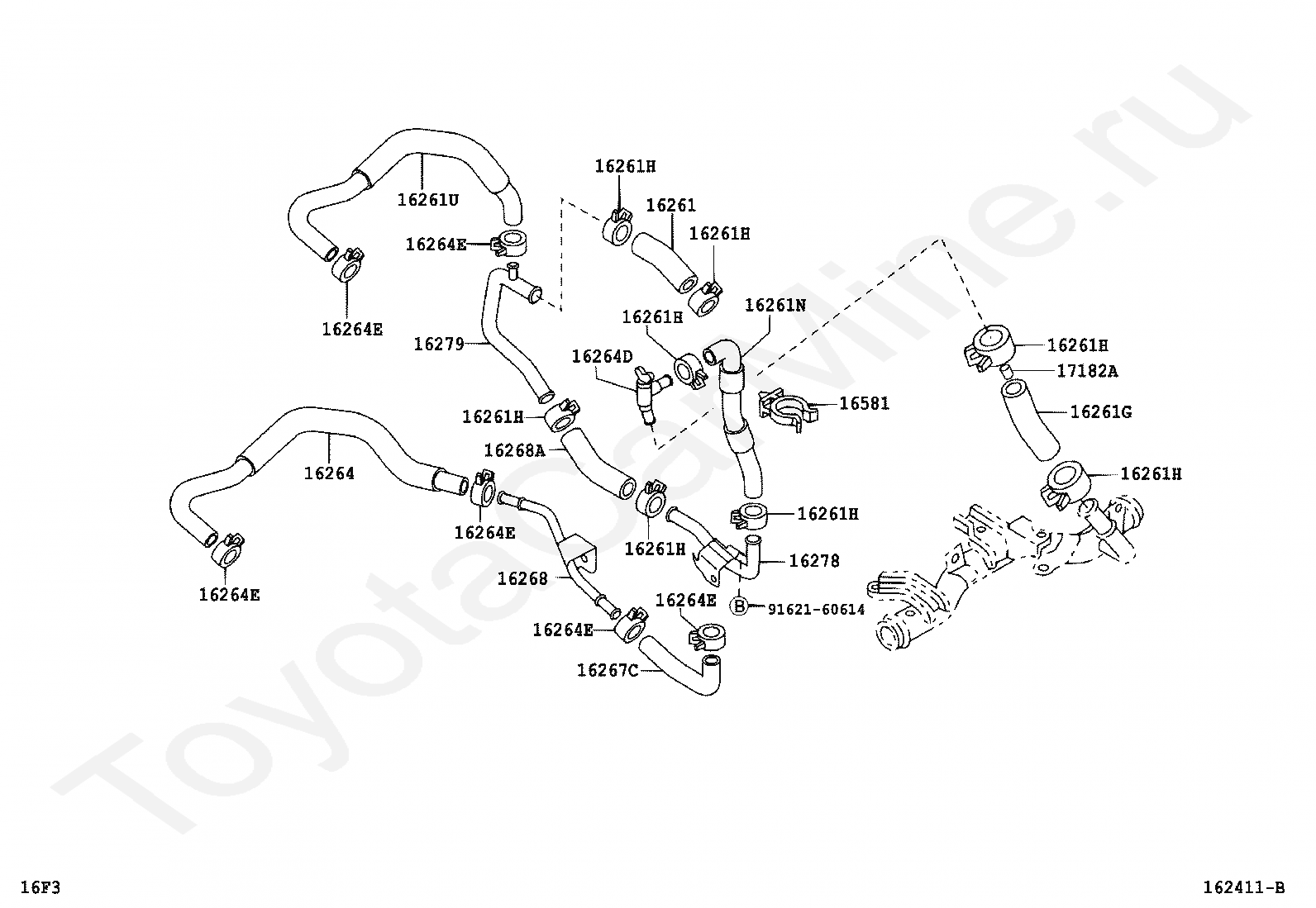

Код

Описание

16261

HOSE, WATER BY-PASS

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261N

HOSE, WATER BY-PASS, NO.2

16261U

WATER BY-PASS HOSE NO.1, HEAT STRAGE

16264

HOSE, WATER BY-PASS, NO.2

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267C

HOSE, WATER BY-PASS, NO.4

16268

PIPE, WATER BY-PASS, NO.1

16268A

HOSE(FOR WATER BY-PASS PIPE)

16278

PIPE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16581

CLAMP, HOSE(FOR WATER HOSE)

9162160614

Крепеж
