Модель

AVALON

VIN

Дата

1995/08

Двигатель

3 литра, 24 клапана DOHC, EFI

Класс

XLS TYPE

Фрейм

MCX10

КПП

АКПП, 4 ступени

Опции

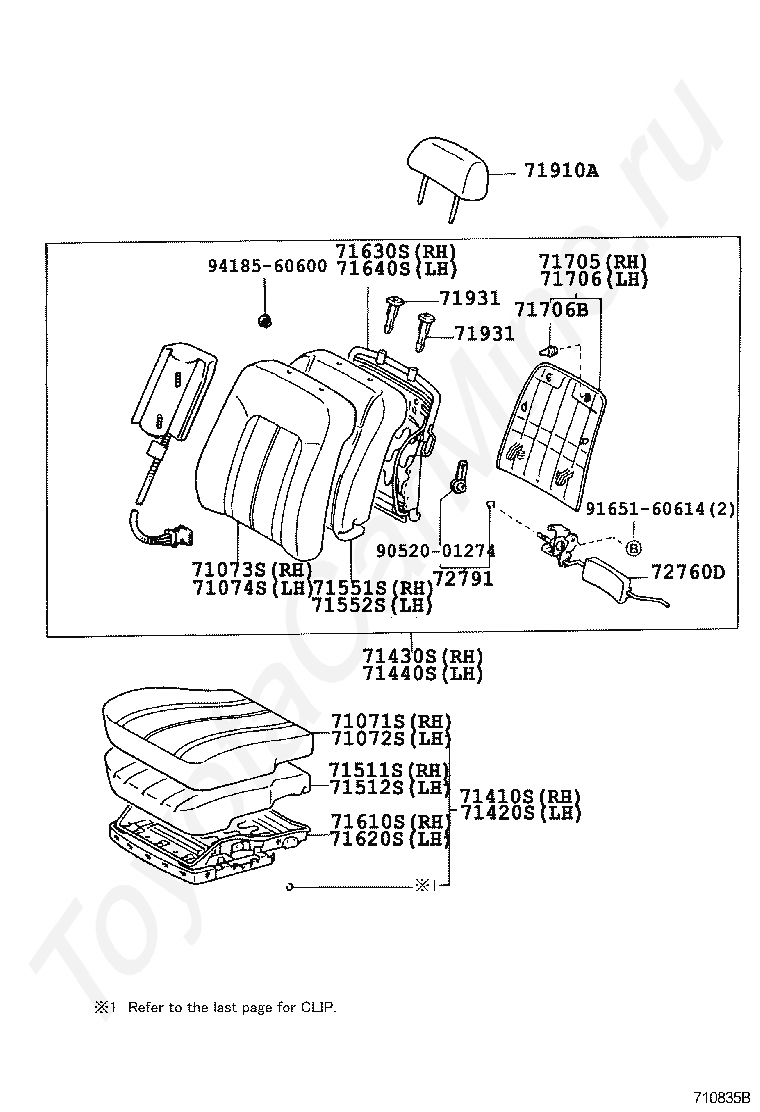

Передние кресла TOYOTA AVALON

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71706B

CLIP, FRONT SEAT BACK BOARD

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

72791

LEVER, LUMBAR SUPPORT

9052001274

Крепеж

9165160614

Крепеж

9418560600

Крепеж

Код

Описание

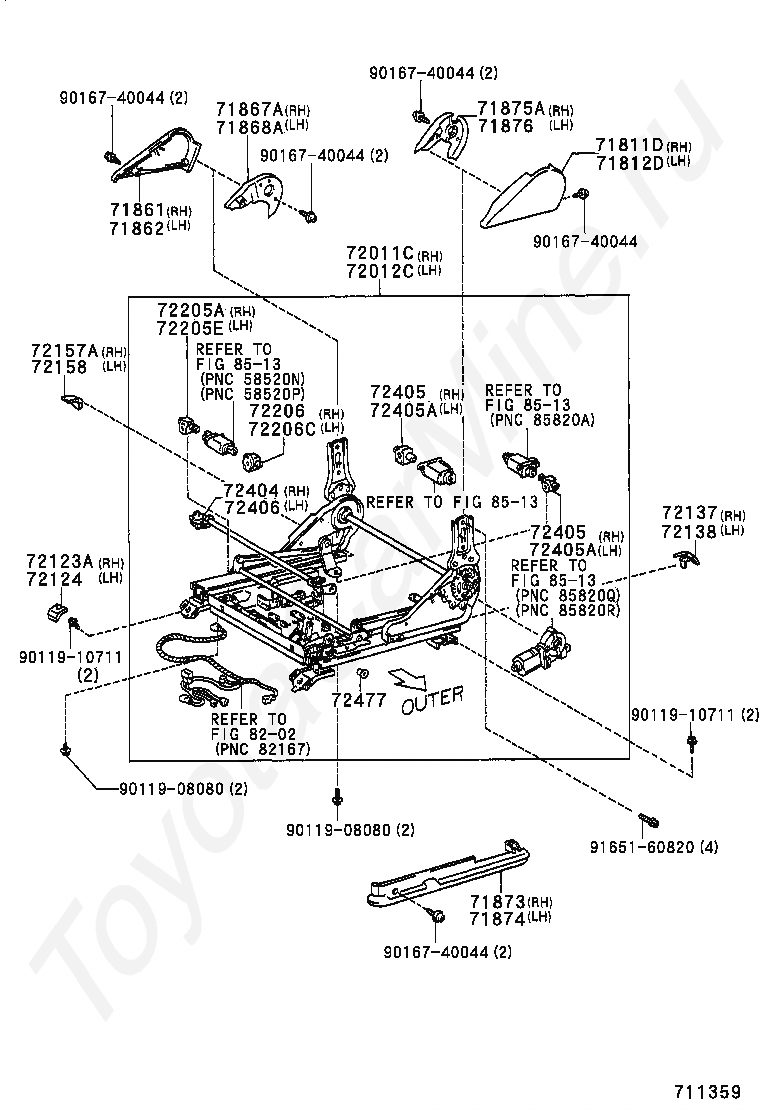

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72205A

HOUSING SUB-ASSY, POWER SEAT, NO.1

72205E

HOUSING SUB-ASSY, POWER SEAT, NO.1

72206

HOUSING SUB-ASSY, POWER SEAT, NO.2

72206C

HOUSING SUB-ASSY, POWER SEAT, NO.2

72404

LINK SUB-ASSY, VERTICAL SEAT

72405

HOUSING SUB-ASSY, FRONT SEAT VERTICAL

72405

HOUSING SUB-ASSY, FRONT SEAT VERTICAL

72405A

HOUSING SUB-ASSY, FRONT SEAT VERTICAL

72405A

HOUSING SUB-ASSY, FRONT SEAT VERTICAL

72406

LINK SUB-ASSY, VERTICAL SEAT, LH

72477

SPACER, VERTICAL ADJUSTER

8202

переход к группе запчастей

8513

переход к группе запчастей

8513

переход к группе запчастей

8513

переход к группе запчастей

9011908080

Крепеж

9011908080

Крепеж

9011910711

Крепеж

9011910711

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9165160820

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
