Ближний Восток

Модель

AVALON

VIN

Дата

2018/06

Двигатель

3,5 литра, 24 клапана, DOHC

Класс

LIMITED TYPE

Фрейм

GSX50

КПП

автомат АКПП, 8 скоростей

Опции

левый руль страны Персидского залива 699W

Реле и кнопки TOYOTA AVALON

Код

Описание

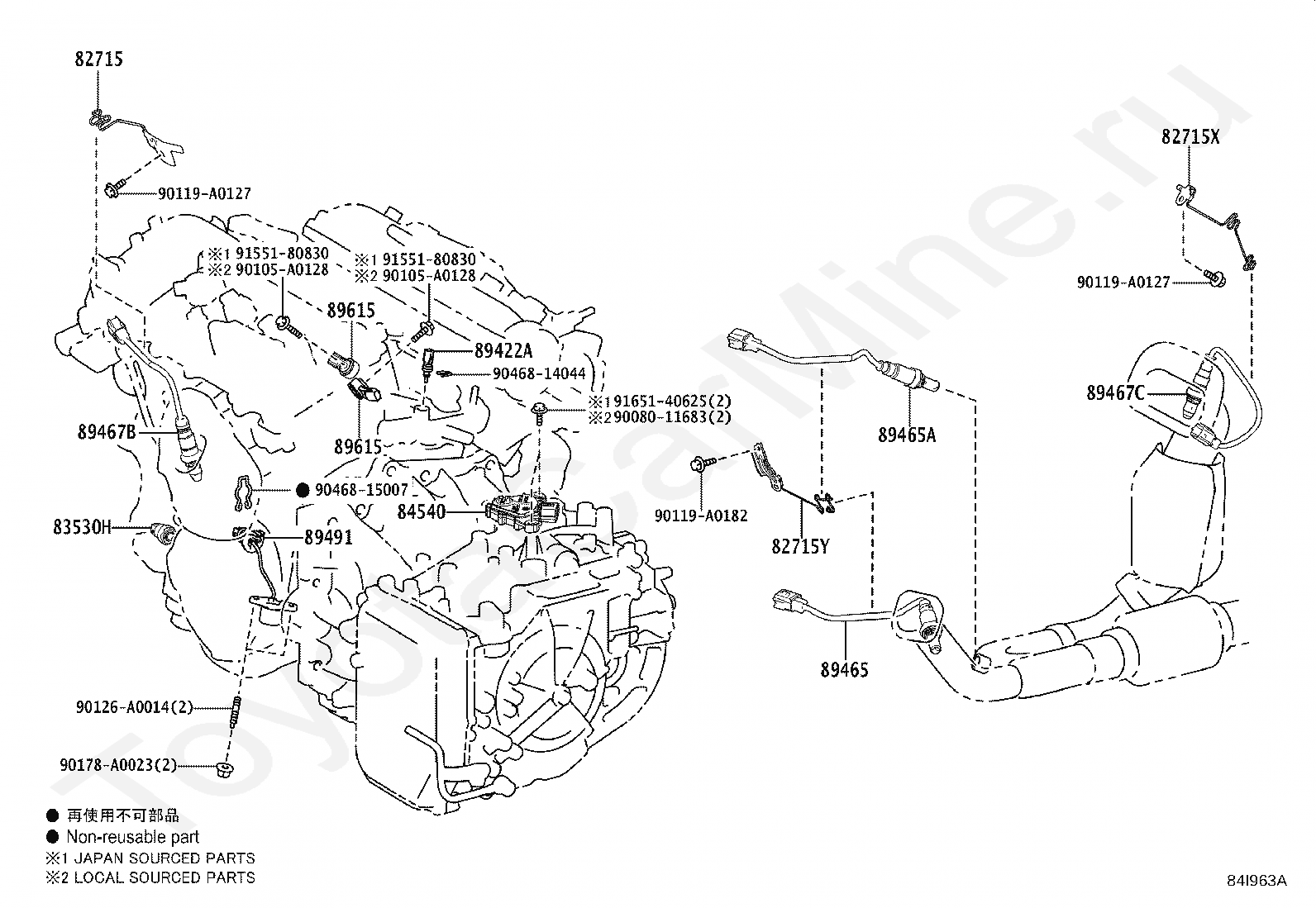

82715

BRACKET,WIRING HARNESS CLAMP

82715X

BRACKET, WIRING HARNESS CLAMP, NO.2

82715Y

BRACKET, WIRING HARNESS CLAMP, NO.3

83530H

SWITCH ASSY, OIL PRESSURE

84540

SWITCH ASSY, NEUTRAL START

89422A

SENSOR, WATER TEMPERATURE

89465

SENSOR, OXYGEN

89465A

SENSOR, OXYGEN NO.2

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

89615

SENSOR, KNOCK CONTROL

9008011683

Крепеж

90105A0128

Крепеж

90105A0128

Крепеж

90119A0127

Крепеж

90119A0127

Крепеж

90119A0182

Крепеж

90126A0014

Крепеж

90178A0023

Крепеж

9046814044

Крепеж

9046815007

Крепеж

9155180830

Крепеж

9155180830

Крепеж

9165140625

Крепеж

Код

Описание

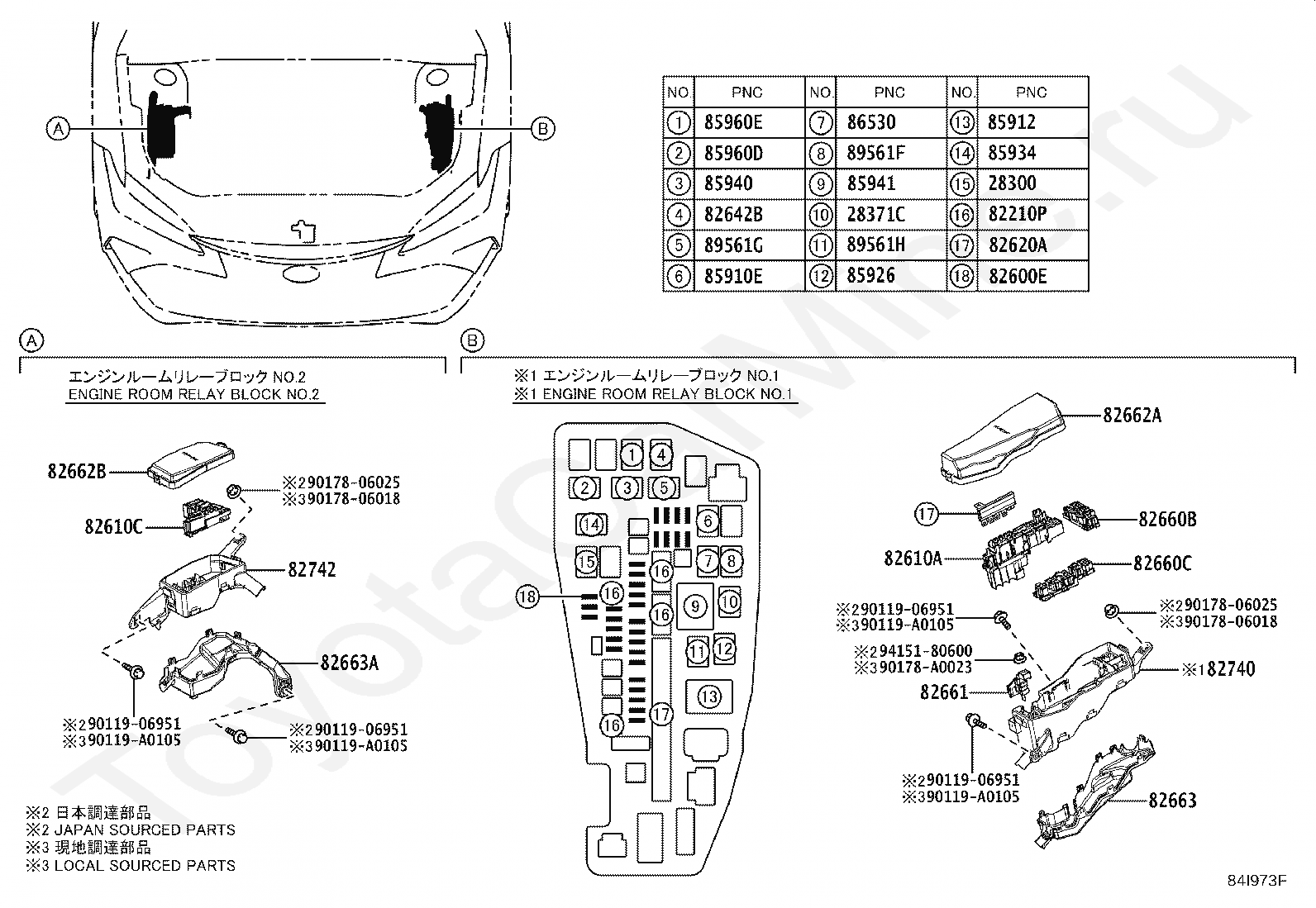

28300

RELAY ASSY, STARTER

28371C

RELAY, IGNITION, NO.2

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82642B

RELAY, DAY TIME RUNNING LIGHT, NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82740

BLOCK ASSY, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

85910E

RELAY, INJECTOR

85912

RELAY, DEFOGGER

85926

RELAY, HEADLAMP DIMMER

85934

RELAY, MAGNET-CLUTCH

85940

RELAY ASSY, WINDSHIELD WIPER

85941

RELAY, WINDSHIELD WASHER

85960D

RELAY, HEADLAMP, RH

85960E

RELAY, HEADLAMP, LH

86530

RELAY ASSY, HORN

89561F

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

89561G

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

89561H

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3

9011906951

Крепеж

9011906951

Крепеж

9011906951

Крепеж

9011906951

Крепеж

90119A0105

Крепеж

90119A0105

Крепеж

90119A0105

Крепеж

90119A0105

Крепеж

9017806018

Крепеж

9017806018

Крепеж

9017806025

Крепеж

9017806025

Крепеж

90178A0023

Крепеж

9415180600

Крепеж

Код

Описание

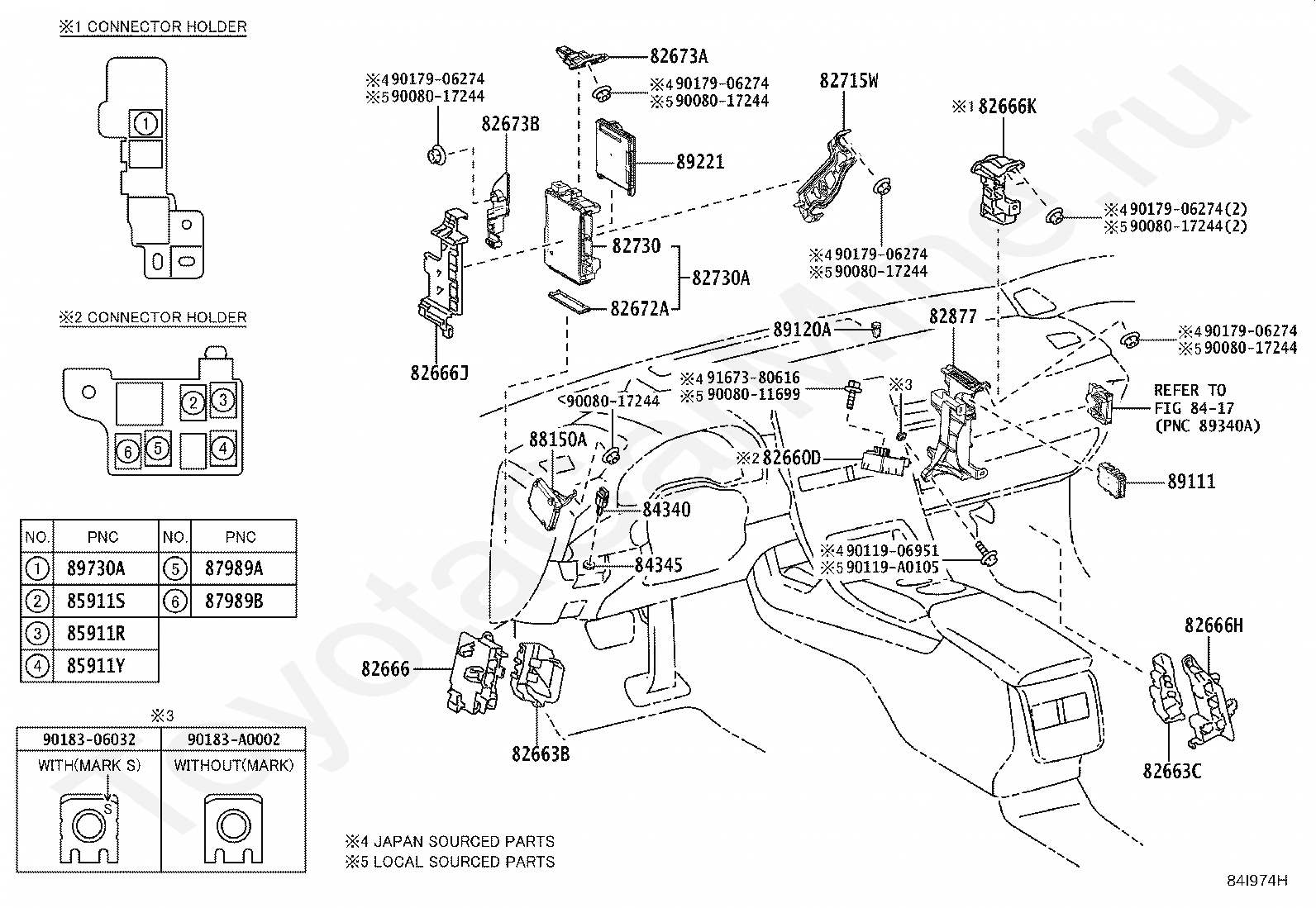

82660D

BLOCK ASSY, RELAY

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

82666J

HOLDER, CONNECTOR, NO.3

82666K

HOLDER, CONNECTOR, NO.4

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82715W

BRACKET, WIRING HARNESS CLAMP

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82730A

BLOCK ASSY, DRIVER SIDE JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

8417

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85911R

RELAY, REAR SEAT HEATER, RH

85911S

RELAY, REAR SEAT HEATER, LH

85911Y

RELAY, FRONT SEAT HEATER

87989A

RELAY, MIRROR NO.1

87989B

RELAY, MIRROR NO.2

88150A

COMPUTER ASSY, DRIVING SUPPORT

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89730A

RELAY(FOR SECURITY WARNING)

9008011699

Крепеж

9008017244

Крепеж

9008017244

Крепеж

9008017244

Крепеж

9008017244

Крепеж

9008017244

Крепеж

9008017244

Крепеж

9011906951

Крепеж

90119A0105

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9018306032

Крепеж

90183A0002

Крепеж

9167380616

Крепеж

Код

Описание

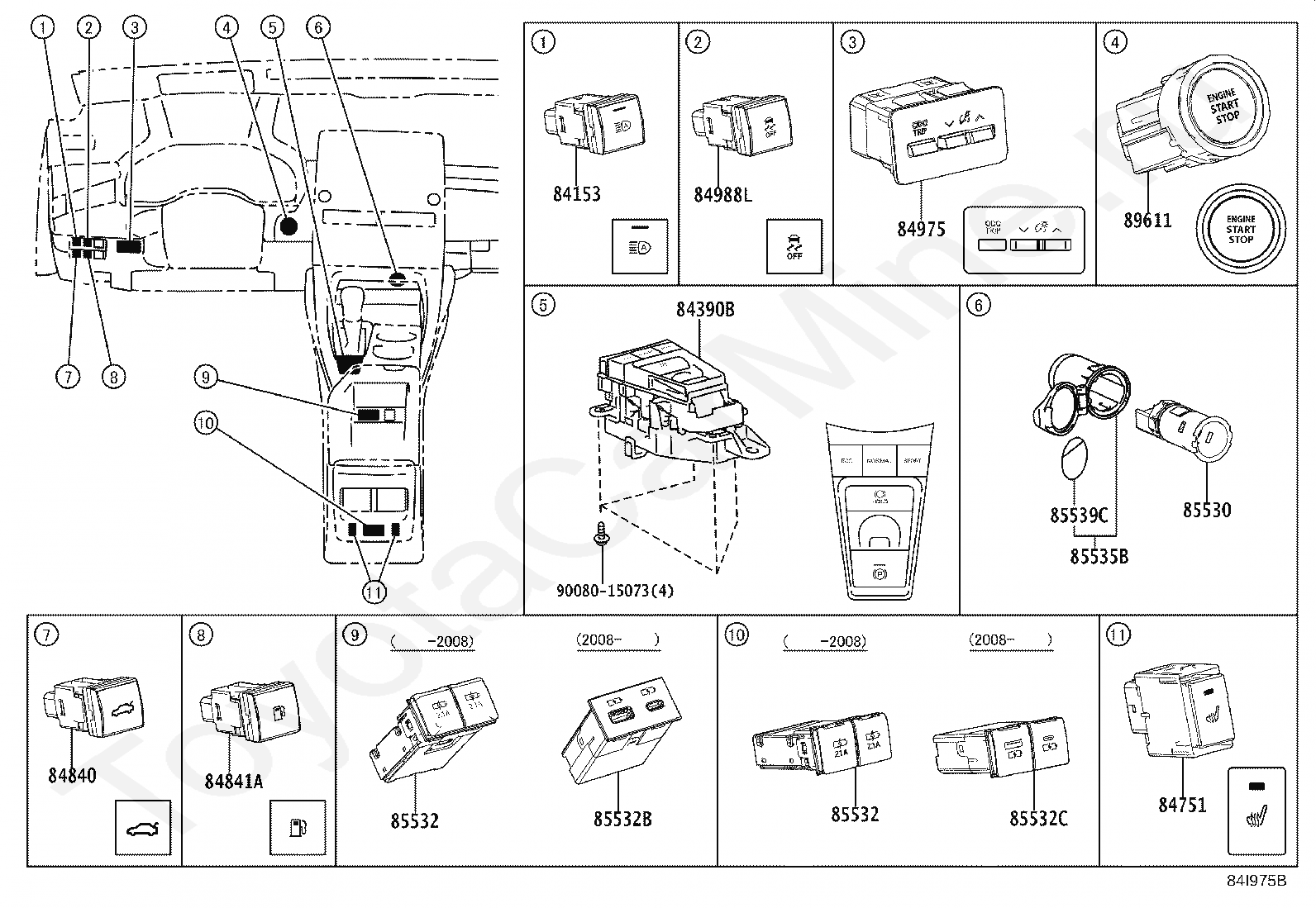

84153

SWITCH, AUTO HIGH BEAM

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84751

SWITCH, SEAT HEATER

84840

SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

84841A

SWITCH, FUEL LID OPENER

84975

SWITCH, TRIP

84988L

SWITCH, VSC OFF

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85532

SOCKET, USB CHARGER

85532B

SOCKET, USB CHARGER

85532C

SOCKET, USB CHARGER, NO.2

85535B

COVER, POWER OUTLET SOCKET, NO.1

85539C

LABEL, POWER OUTLET NOTICE

89611

SWITCH, PUSH START

9008015073

Крепеж

Код

Описание

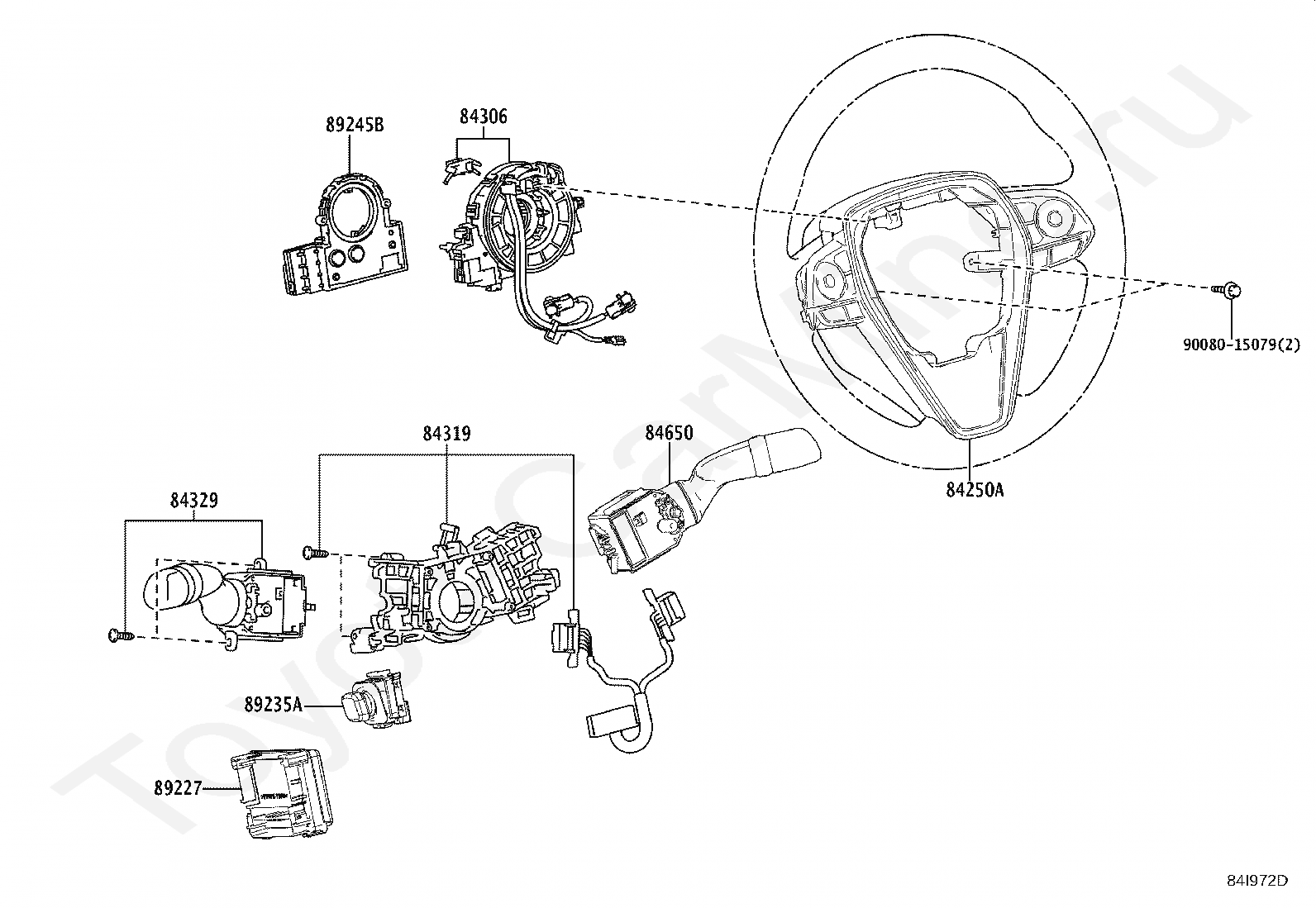

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84650

SWITCH ASSY, WINDSHIELD WIPER

89227

COMPUTER, MULTIPLEX TILT & TELESCOPIC

89235A

SWITCH, TILT & TELESCOPIC

89245B

SENSOR, STEERING

9008015079

Крепеж

Код

Описание

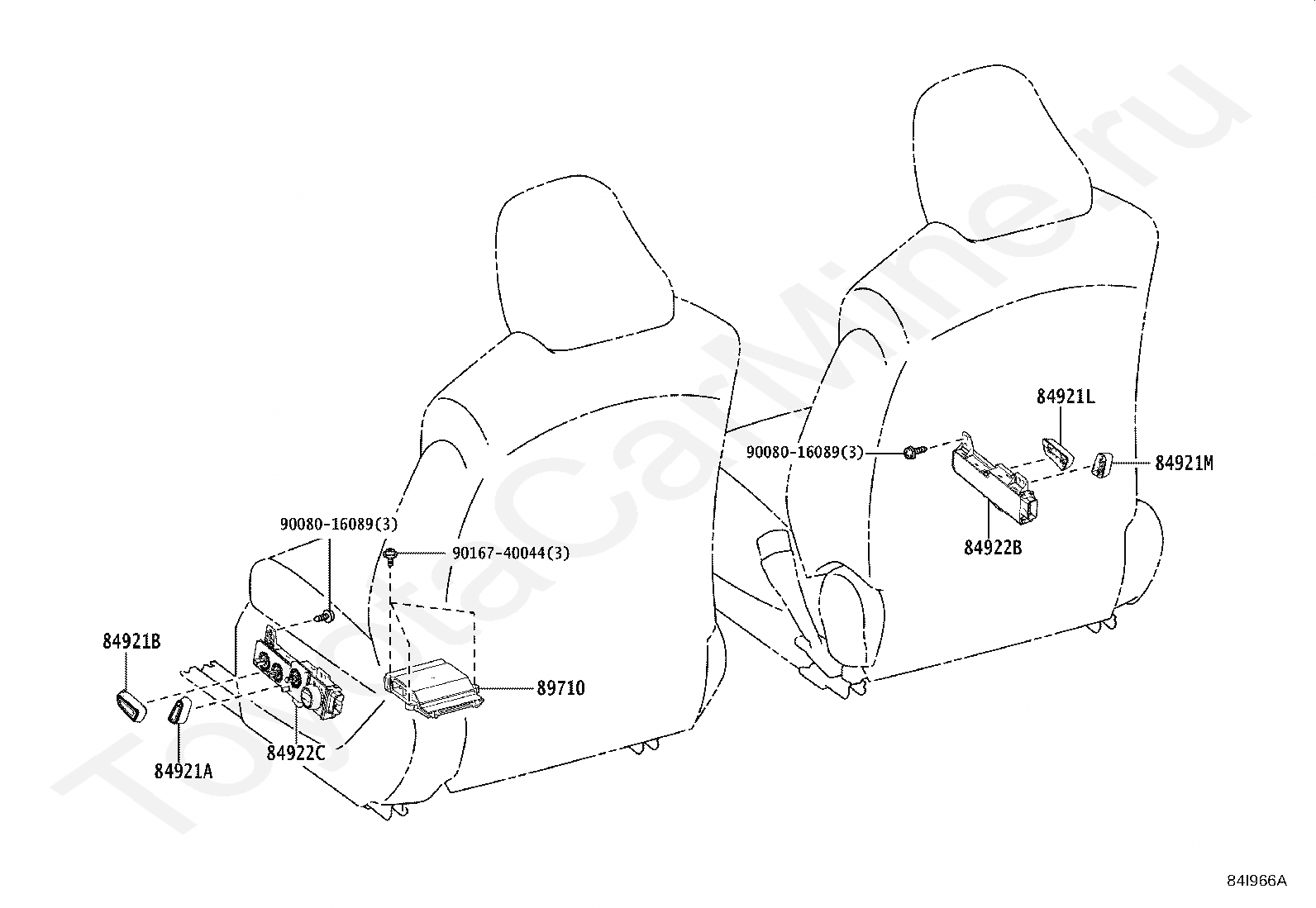

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921L

KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2

84921M

KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2

84922B

SWITCH, FRONT POWER SEAT, RH

84922C

SWITCH, FRONT POWER SEAT, LH

89710

COMPUTER ASSY, POSITION CONTROL

9008016089

Крепеж

9008016089

Крепеж

9016740044

Крепеж

Код

Описание

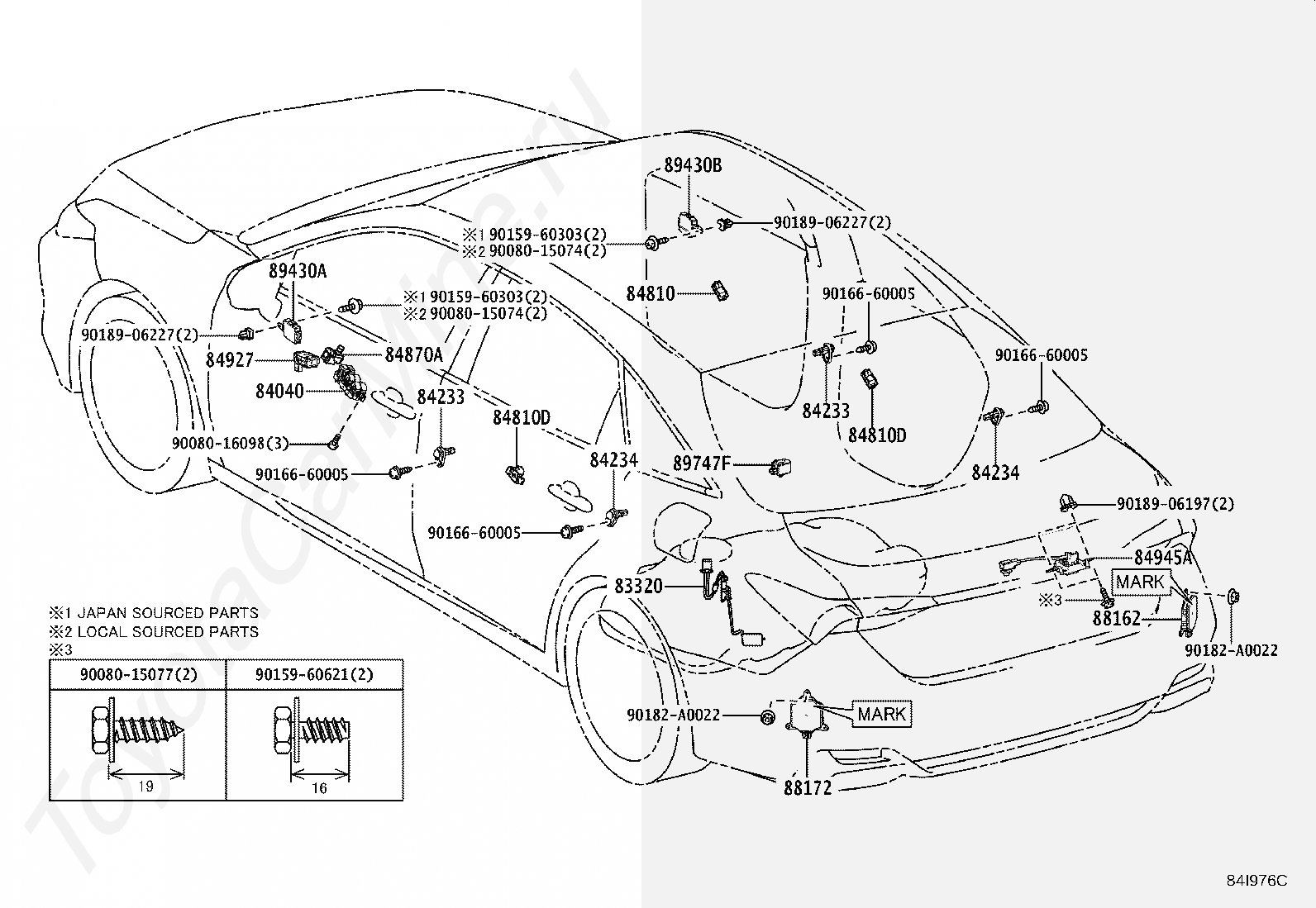

83320

GAGE ASSY, FUEL SENDER

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84927

SWITCH, SEAT MEMORY

84945A

SWITCH, LUGGAGE ELECTRICAL KEY

88162

SENSOR, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

89430A

COMPUTER ASSY, OUTER MIRROR CONTROL, LH

89430B

COMPUTER ASSY, OUTER MIRROR CONTROL, RH

89747F

BUZZER, BLIND SPOT MONITOR

9008015074

Крепеж

9008015074

Крепеж

9008015077

Крепеж

9008016098

Крепеж

9015960303

Крепеж

9015960303

Крепеж

9015960621

Крепеж

9016660005

Крепеж

9016660005

Крепеж

9016660005

Крепеж

9016660005

Крепеж

90182A0022

Крепеж

90182A0022

Крепеж

9018906197

Крепеж

9018906227

Крепеж

9018906227

Крепеж

Реле и кнопки TOYOTA AVALON
