Ближний Восток

Модель

AURIS/COROLLA HB(JPP

VIN

Дата

2018/06

Двигатель

1,2 литра, 16 клапанов, DOHC, D4

Фрейм

NRE210

КПП

вариатор

Опции

правый руль 5 дверей N(MODEL MARK) Южная Африка 712W

Реле и кнопки TOYOTA AURIS/COROLLA HB(JPP

Код

Описание

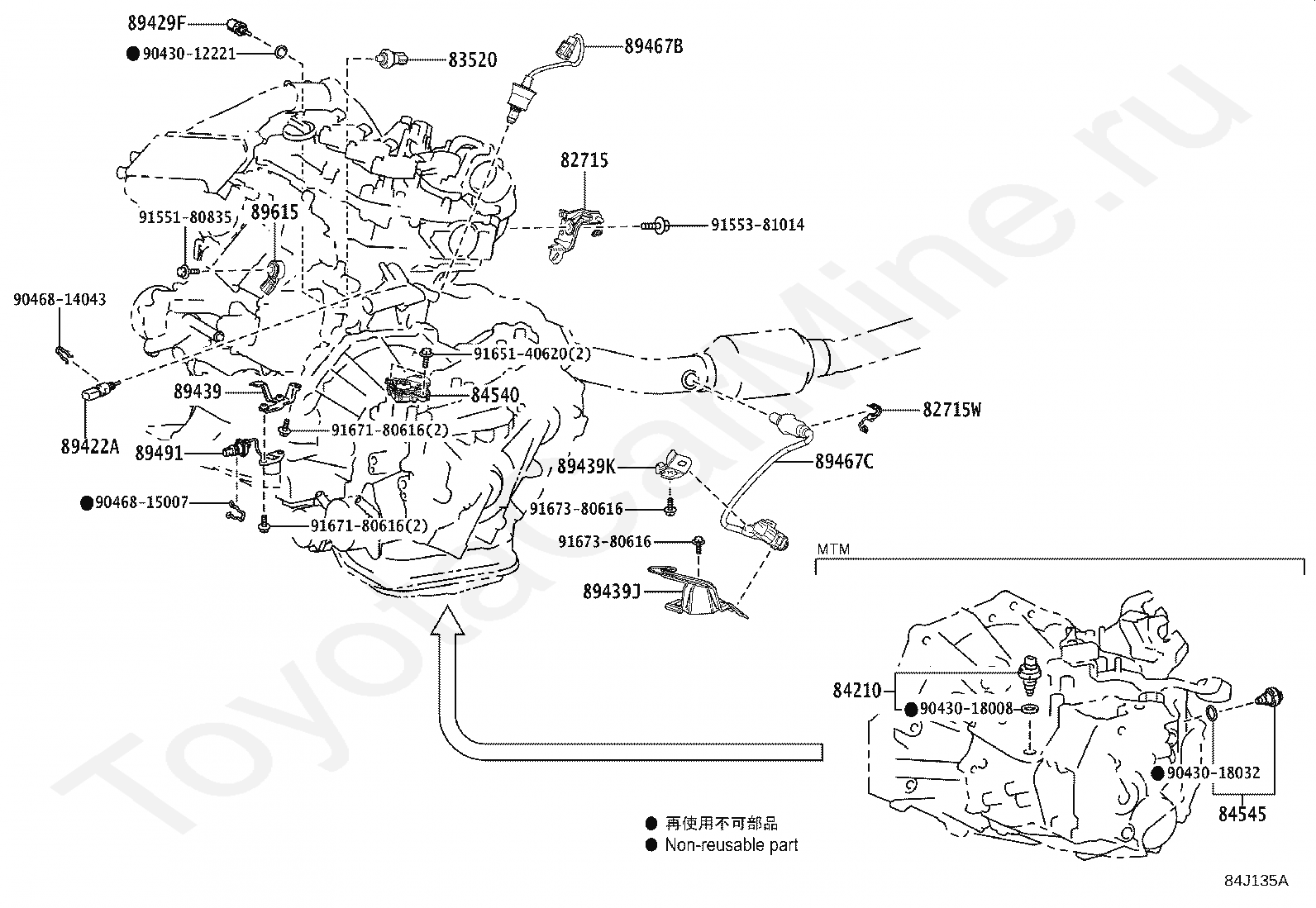

82715

BRACKET,WIRING HARNESS CLAMP

82715W

BRACKET, WIRING HARNESS CLAMP

83520

GAGE ASSY,OIL PRESSURE SENDER

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

84545

SWITCH, NEUTRAL POSITION

89422A

SENSOR, WATER TEMPERATURE

89429F

SENSOR, TEMPERATURE

89439

BRACKET, SENSOR

89439J

BRACKET, SENSOR, NO.2

89439K

BRACKET, SENSOR, NO.3

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

9043012221

Крепеж

9043018008

Крепеж

9043018032

Крепеж

9046814043

Крепеж

9046815007

Крепеж

9155180835

Крепеж

9155381014

Крепеж

9165140620

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9167380616

Крепеж

9167380616

Крепеж

Код

Описание

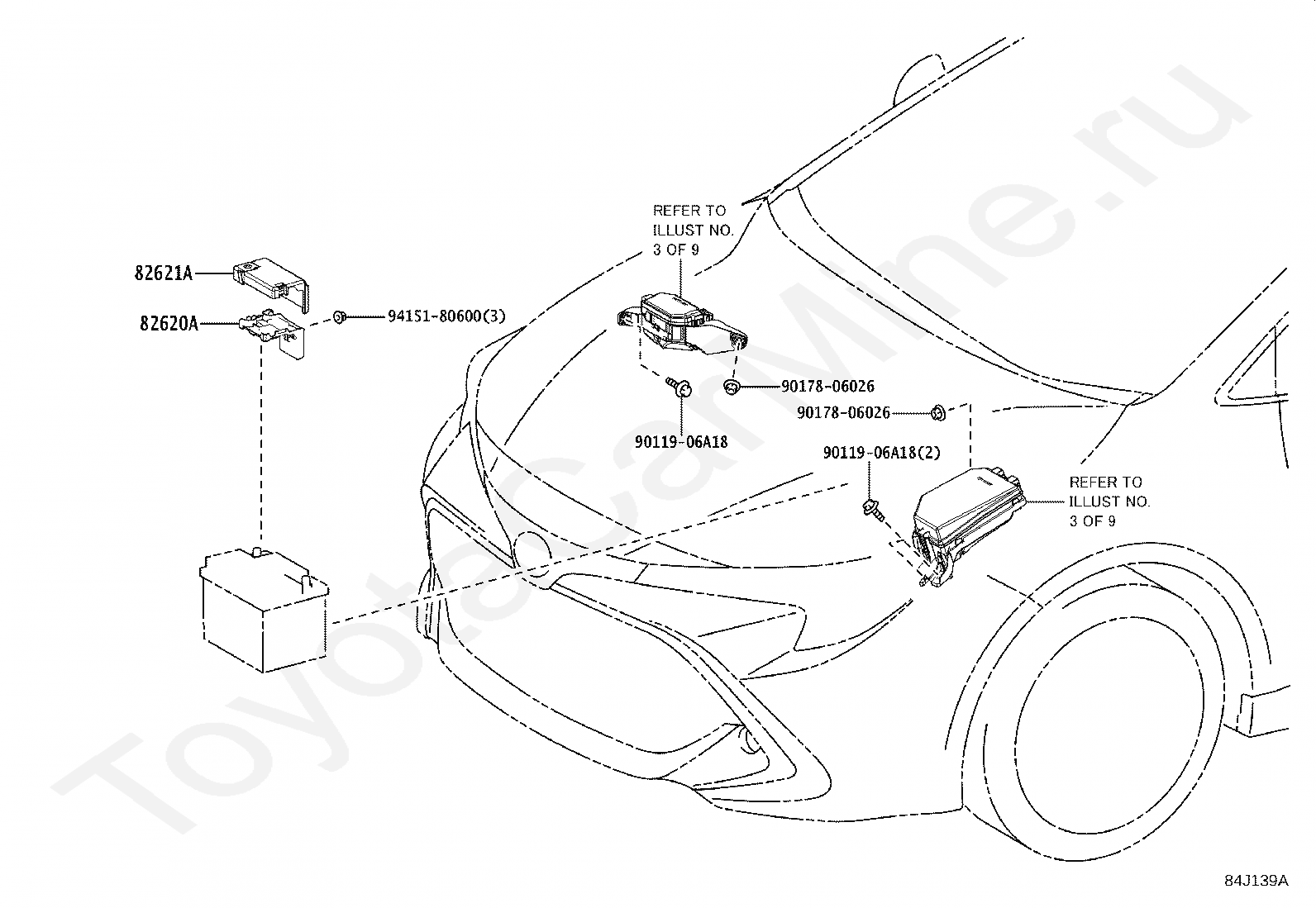

82620A

BLOCK ASSY, FUSIBLE LINK

82621A

COVER, FUSIBLE LINK

9011906A18

Крепеж

9011906A18

Крепеж

9017806026

Крепеж

9017806026

Крепеж

9415180600

Крепеж

Код

Описание

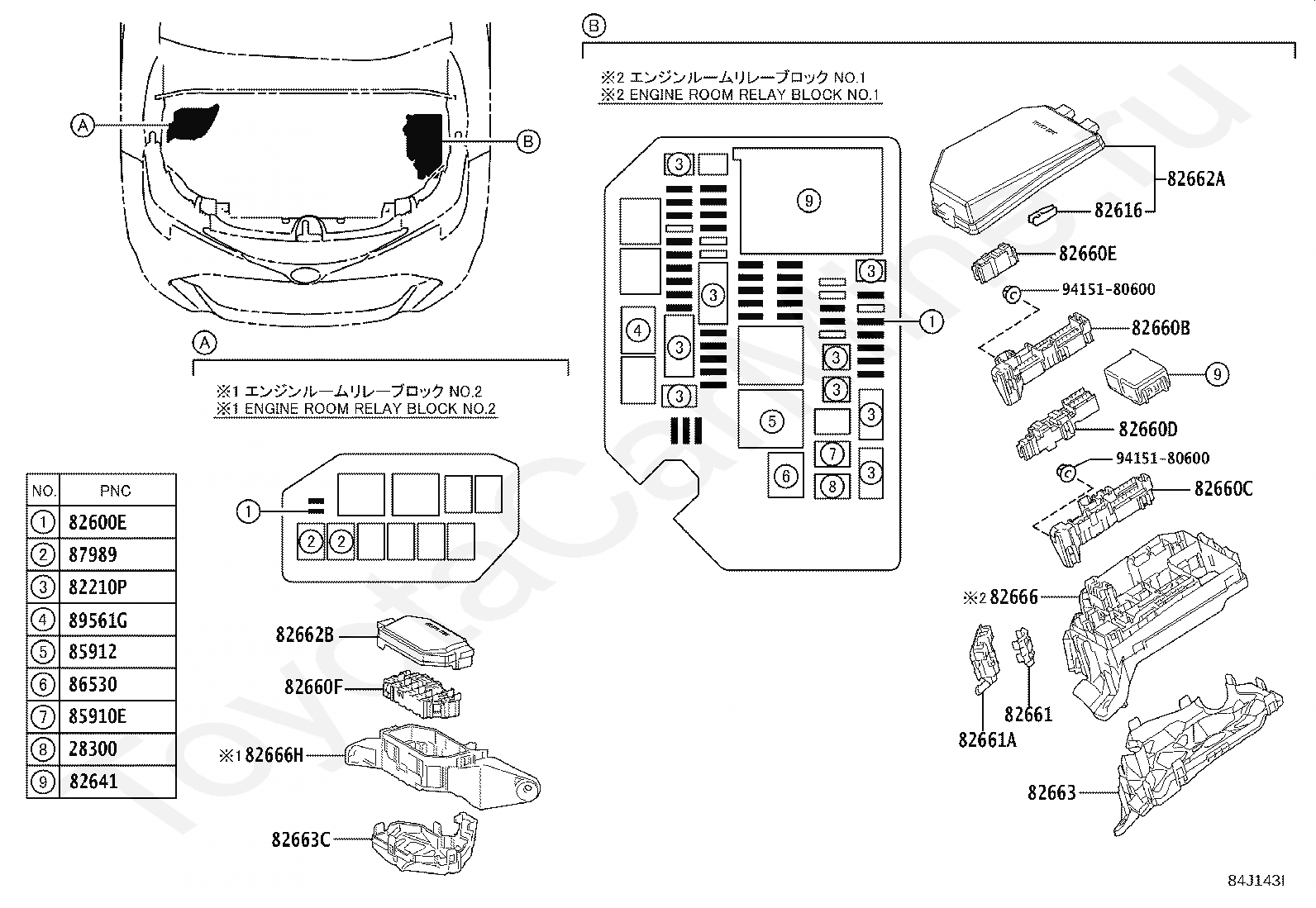

28300

RELAY ASSY, STARTER

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82616

PULLER, FUSE

82641

RELAY, INTEGRATION NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82660E

BLOCK ASSY, RELAY

82660F

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82661A

COVER, RELAY BLOCK, NO.2

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663C

COVER, RELAY BLOCK LOWER, NO.4

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

85910E

RELAY, INJECTOR

85912

RELAY, DEFOGGER

86530

RELAY ASSY, HORN

87989

RELAY, MIRROR CONTROL

89561G

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

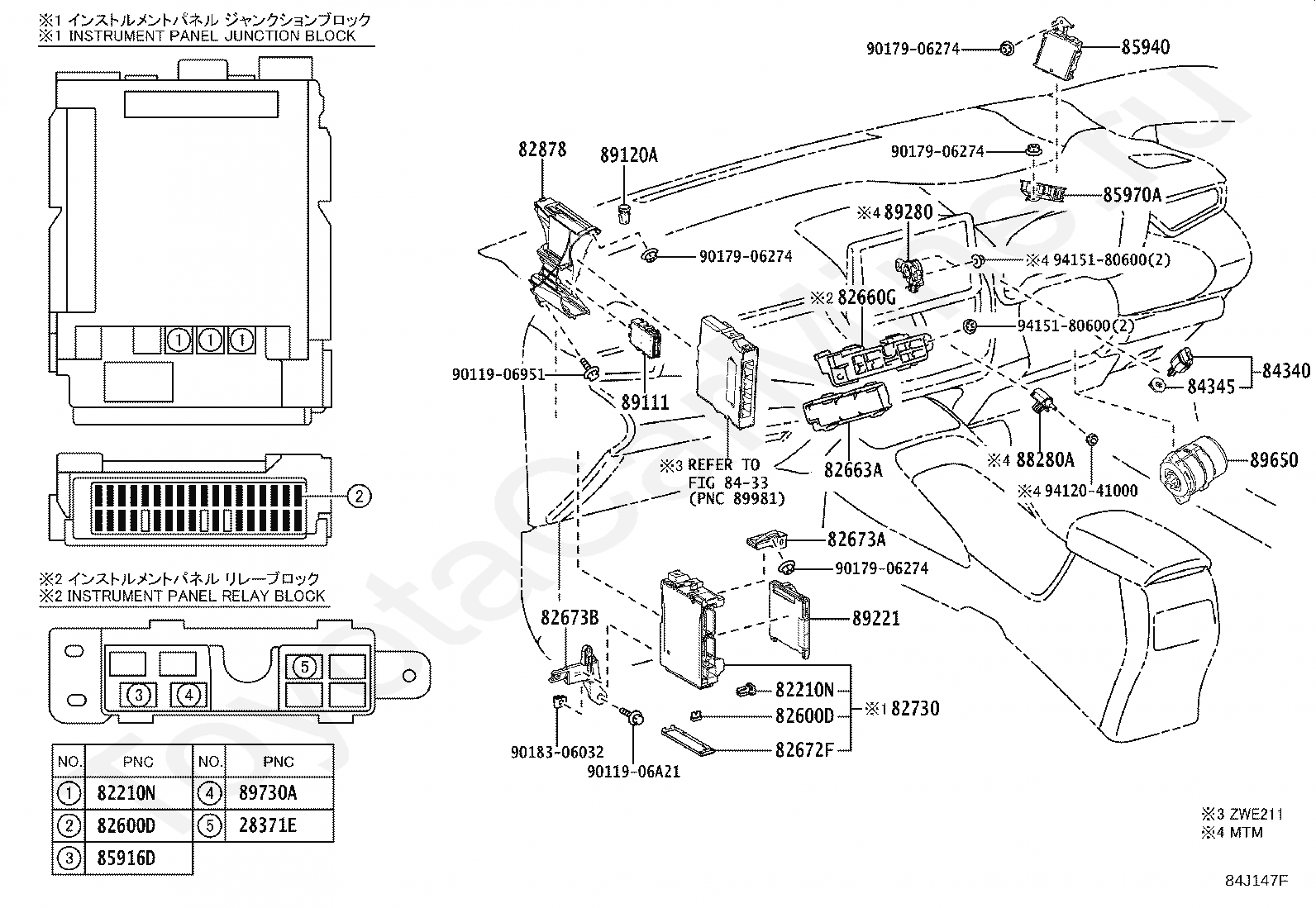

28371E

RELAY, IGNITION, NO.4

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660G

BLOCK ASSY, RELAY

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82672F

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82878

BOX, COMPUTER INTEGRATION, LH

8433

переход к группе запчастей

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85916D

RELAY, FOG LAMP

85940

RELAY ASSY, WINDSHIELD WIPER

85970A

RELAY ASSY, DOUBLE LOCK DOOR CONTROL

88280A

SWITCH ASSY, CLUTCH

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89280

SENSOR ASSY, CLUTCH PEDAL STROKE

89650

COMPUTER ASSY, POWER STEERING

89730A

RELAY(FOR SECURITY WARNING)

9011906951

Крепеж

9011906A21

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9018306032

Крепеж

9412041000

Крепеж

9415180600

Крепеж

9415180600

Крепеж

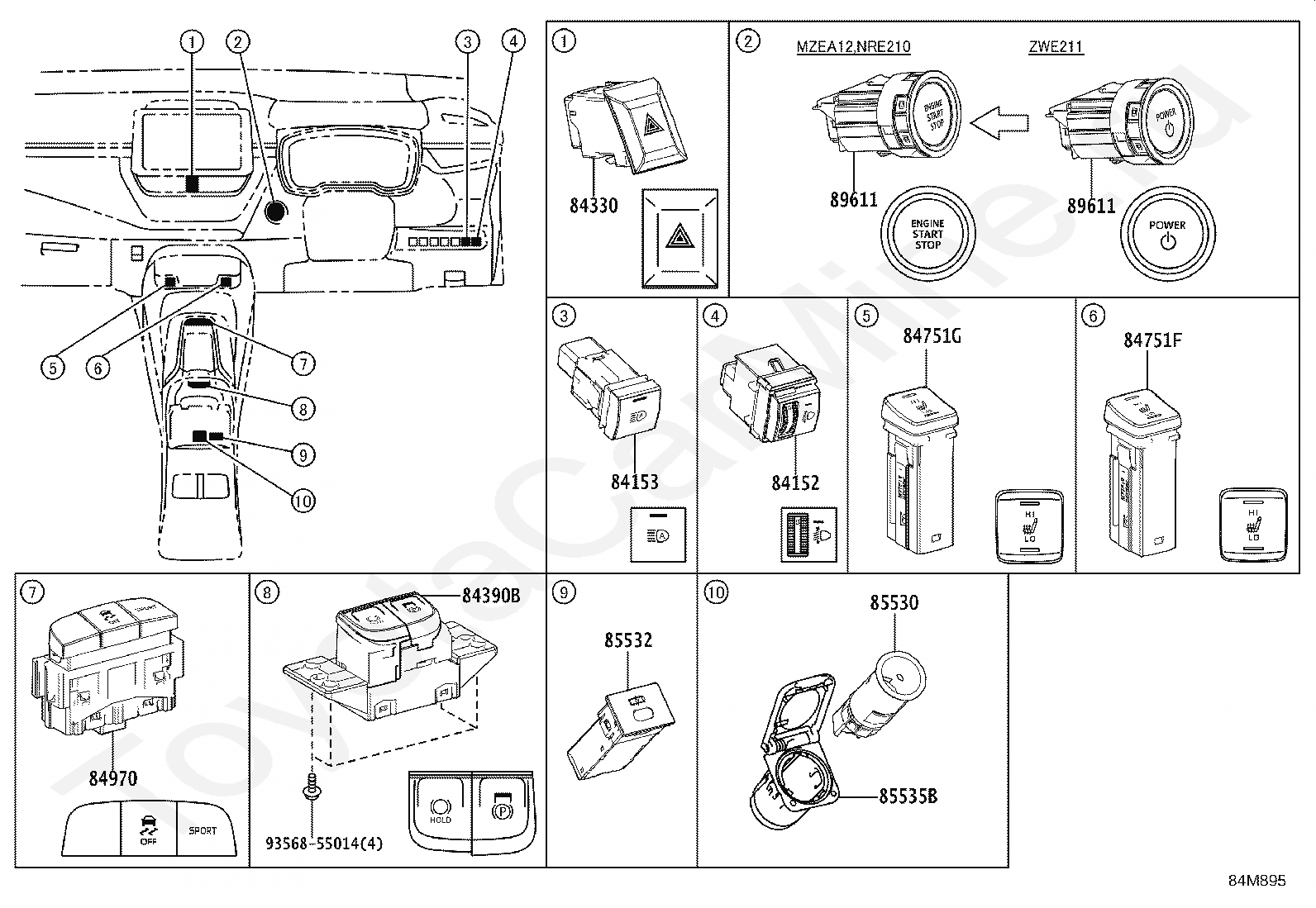

Код

Описание

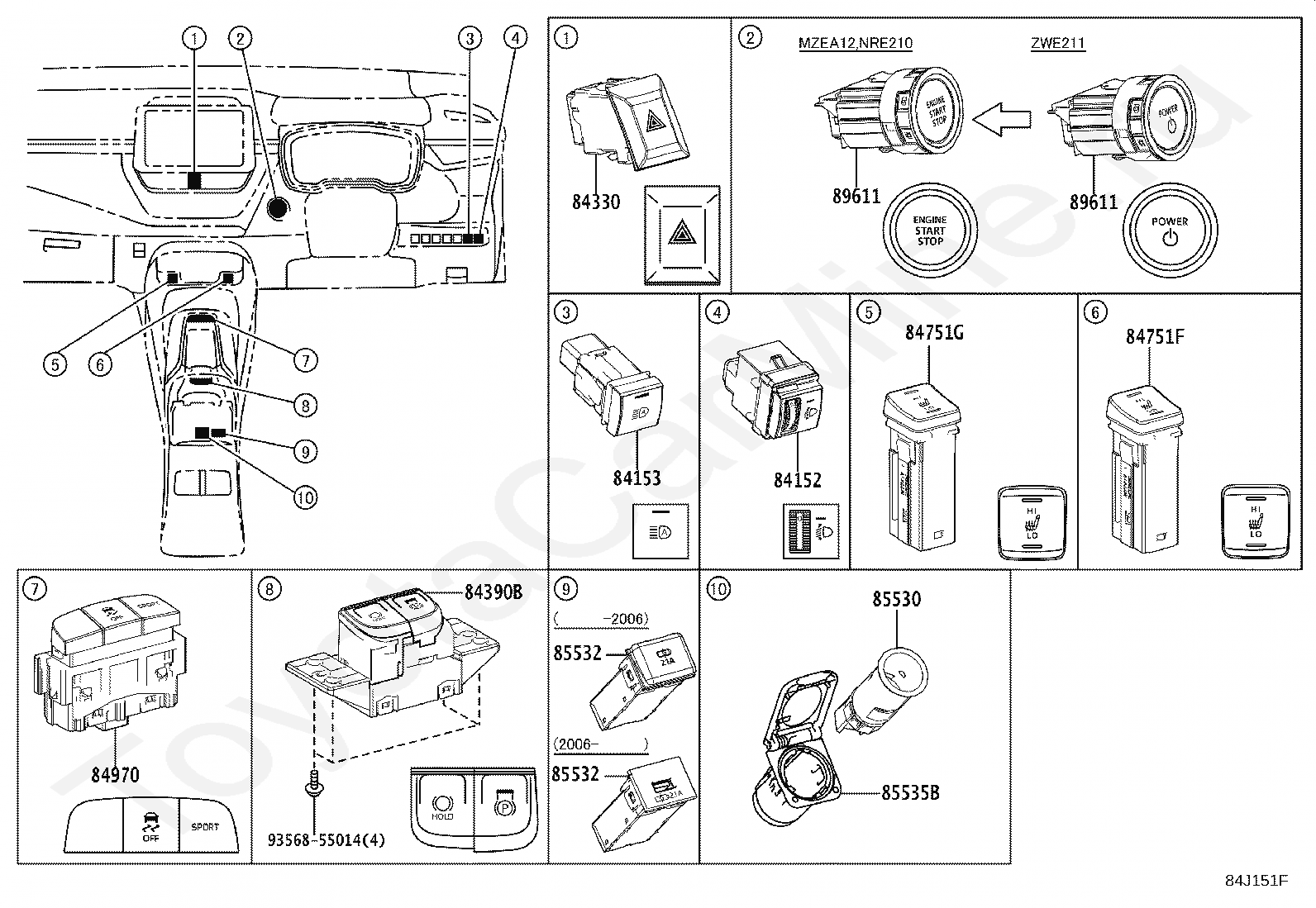

84152

SWITCH, HEADLAMP LEVELING

84153

SWITCH, AUTO HIGH BEAM

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84751F

SWITCH, SEAT HEATER

84751G

SWITCH, SEAT HEATER

84970

SWITCH ASSY, COMBINATION

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

9356855014

Крепеж

Код

Описание

84152

SWITCH, HEADLAMP LEVELING

84153

SWITCH, AUTO HIGH BEAM

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84751F

SWITCH, SEAT HEATER

84751G

SWITCH, SEAT HEATER

84970

SWITCH ASSY, COMBINATION

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

9356855014

Крепеж

Код

Описание

4501

переход к группе запчастей

4501

переход к группе запчастей

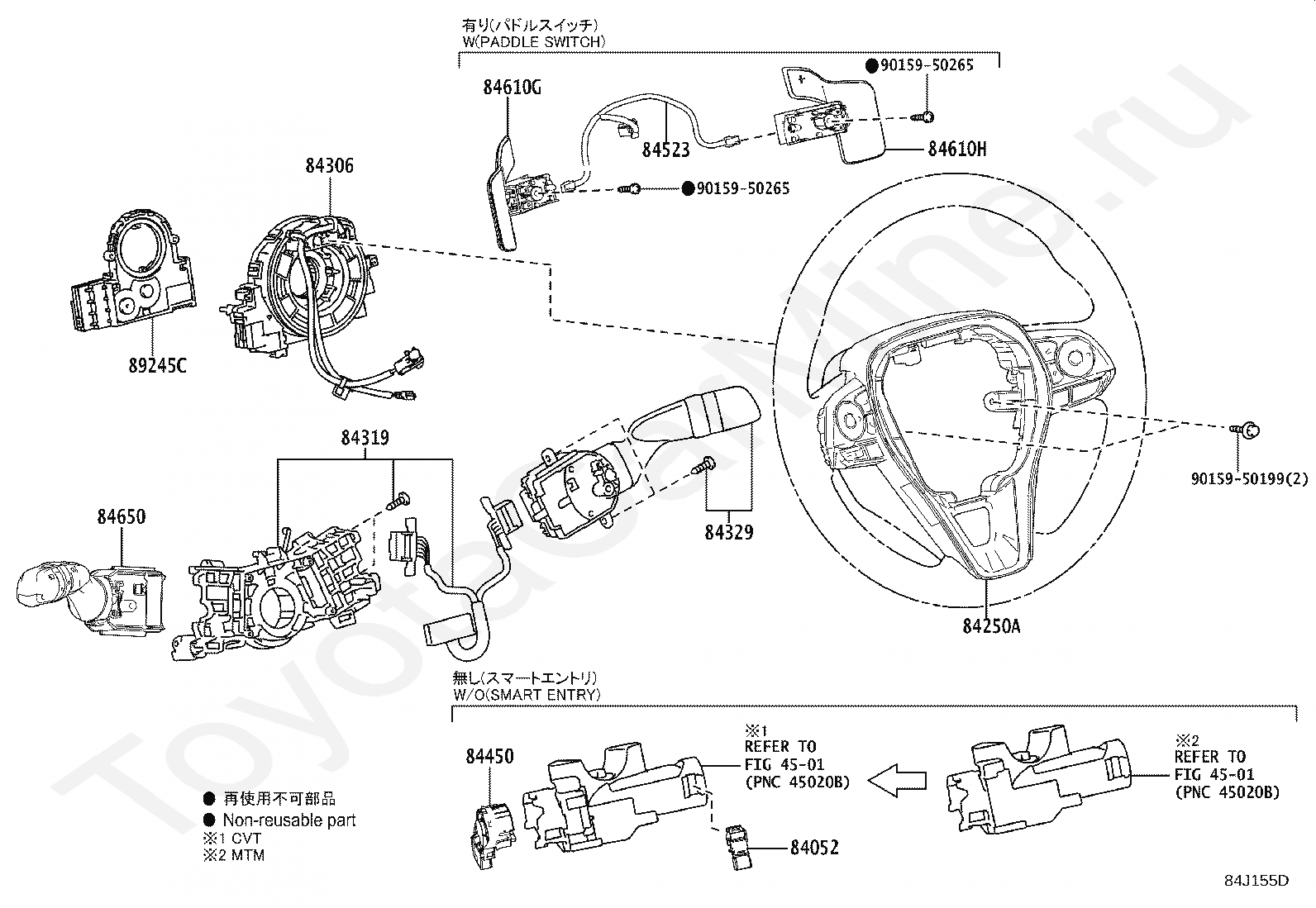

84052

SWITCH ASSY, UN-LOCK WARNING

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84523

WIRE, SWITCH NO.1

84610G

SWITCH ASSY, TRANSMISSION SHIFT, NO.1

84610H

SWITCH ASSY, TRANSMISSION SHIFT, NO.2

84650

SWITCH ASSY, WINDSHIELD WIPER

89245C

SENSOR, STEERING

9015950199

Крепеж

9015950265

Крепеж

9015950265

Крепеж

Код

Описание

7101

переход к группе запчастей

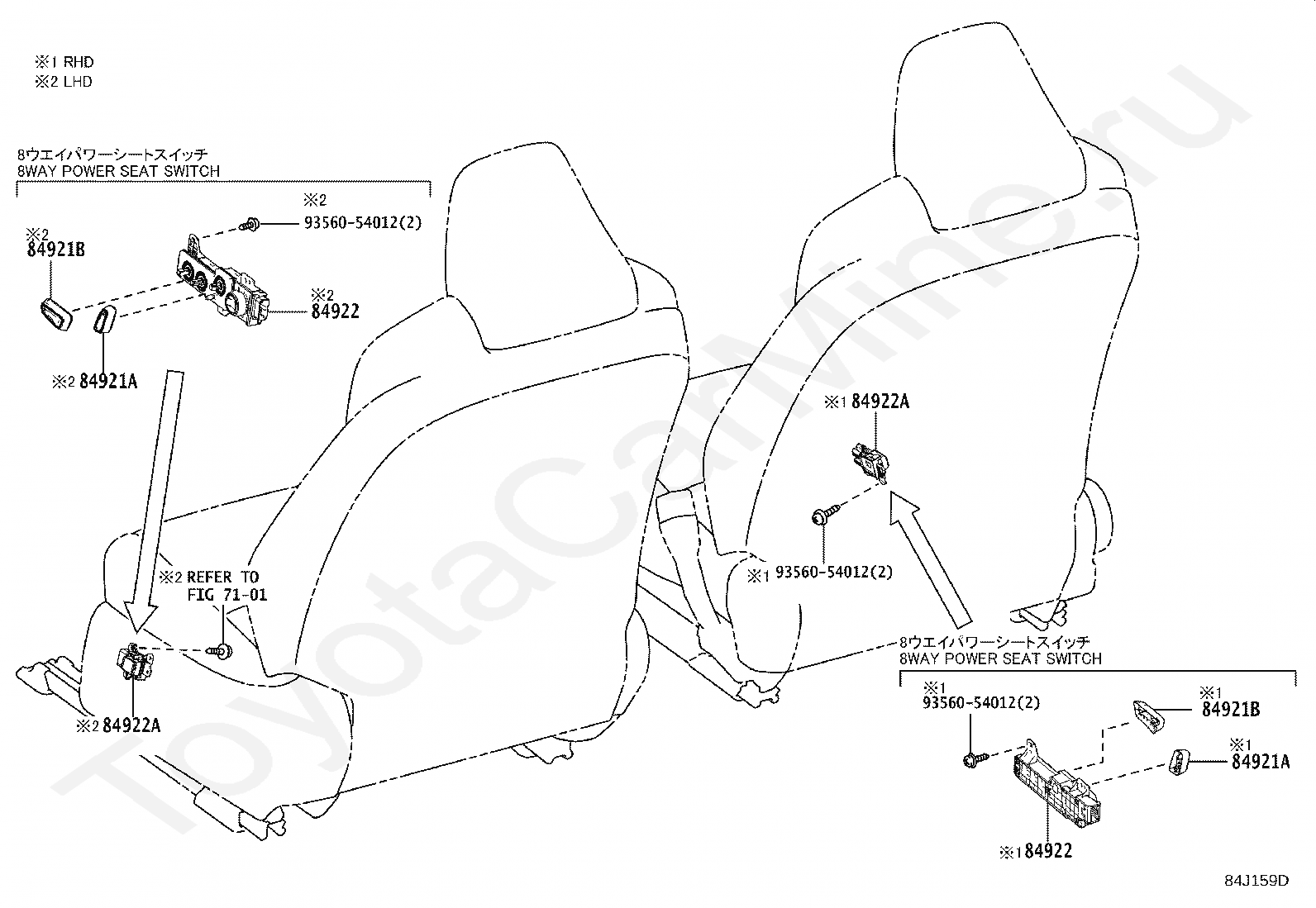

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922

SWITCH, FRONT POWER SEAT

84922

SWITCH, FRONT POWER SEAT

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

Код

Описание

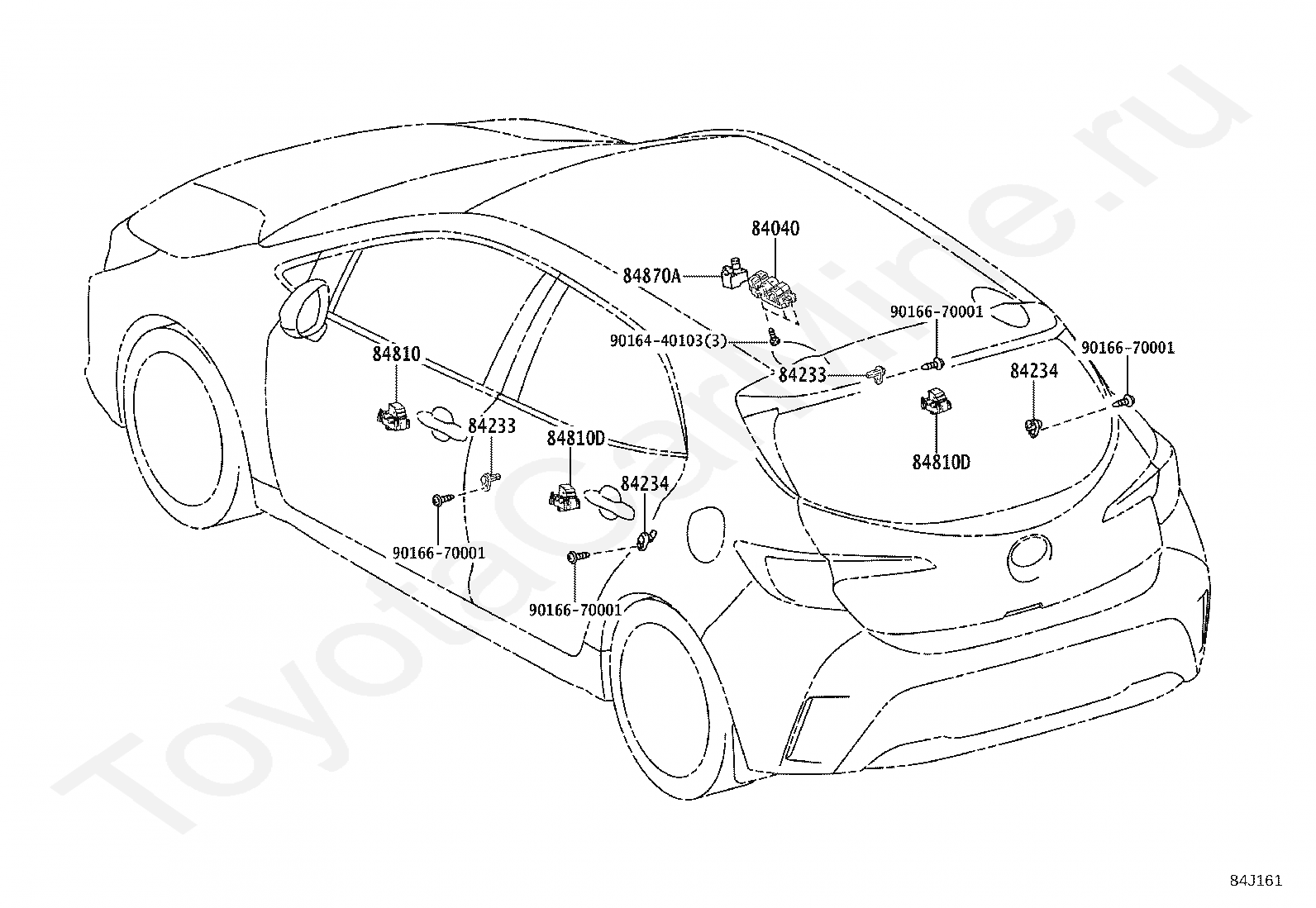

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

9016440103

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

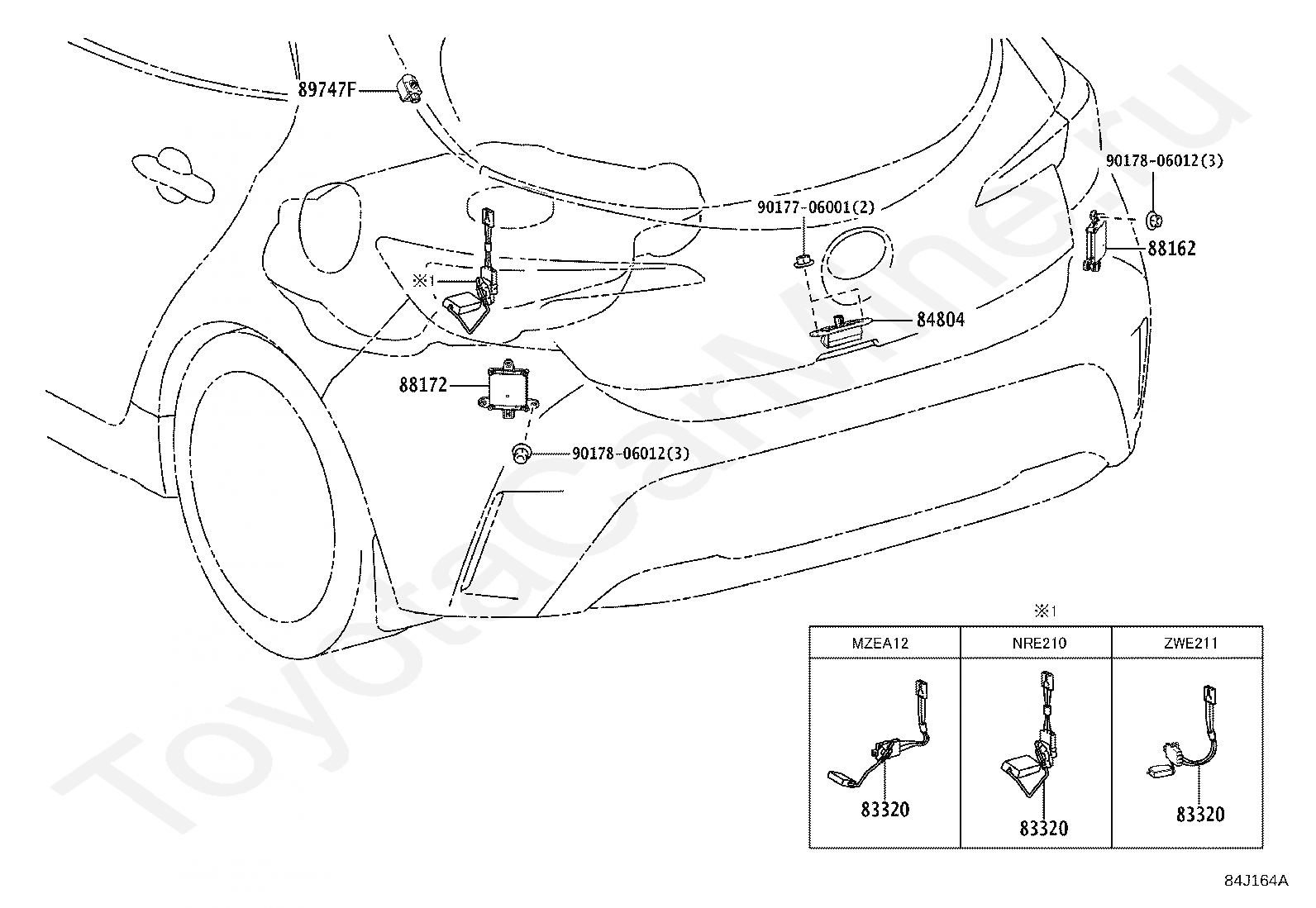

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84804

SWITCH SUB-ASSY, BACK DOOR OPENER

88162

SENSOR, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

89747F

BUZZER, BLIND SPOT MONITOR

9017706001

Крепеж

9017806012

Крепеж

9017806012

Крепеж

Реле и кнопки TOYOTA AURIS/COROLLA HB(JPP
