Ближний Восток

Модель

COROLLA/AURIS (JPP)

VIN

Дата

2015/03

Двигатель

1,6 литра, 16 клапанов DOHC, EFI

Класс

N(MODEL MARK)

Фрейм

ZRE181

КПП

механика МКПП, 6 скоростей

Опции

правый руль 5 дверей Южная Африка 634W

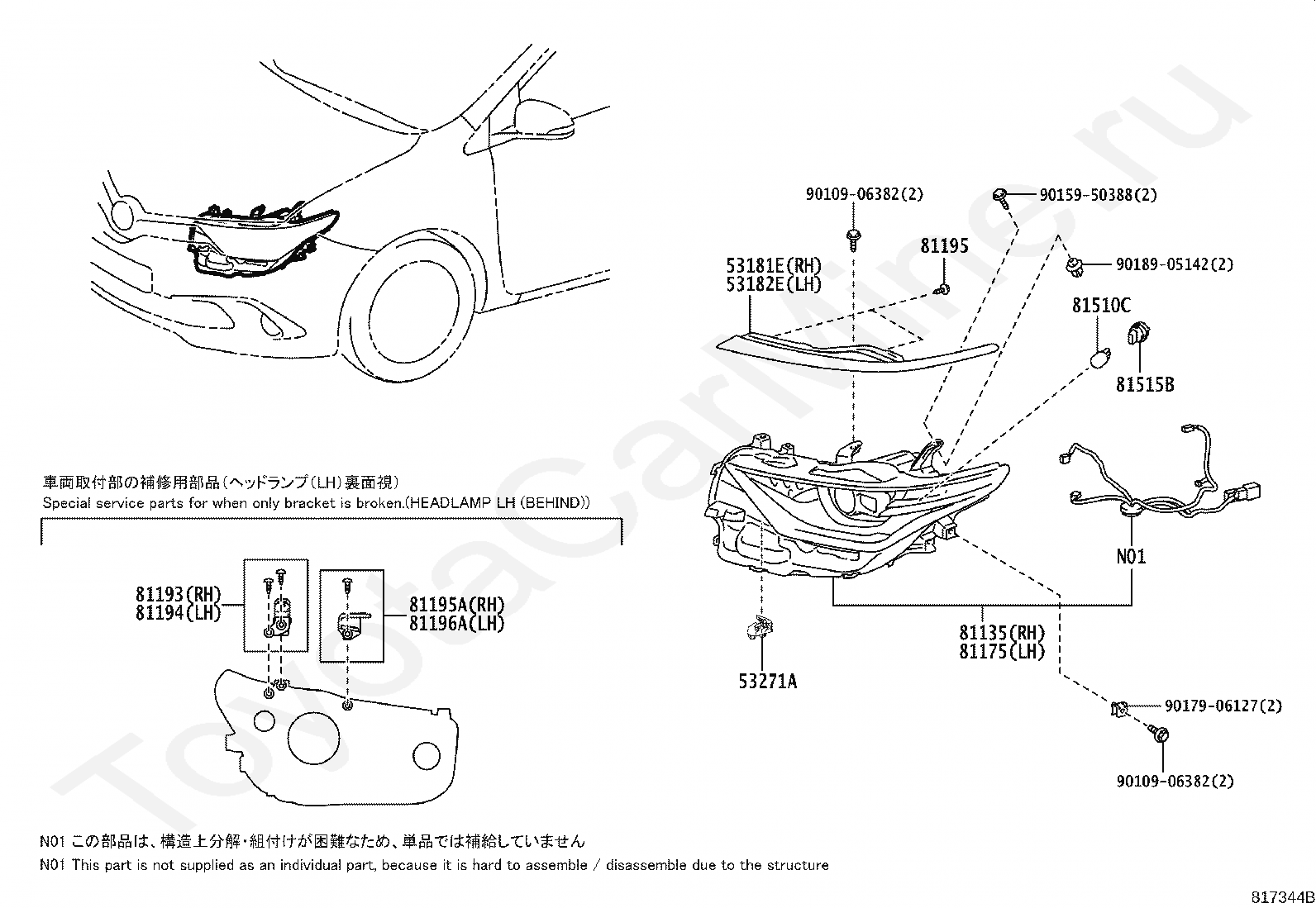

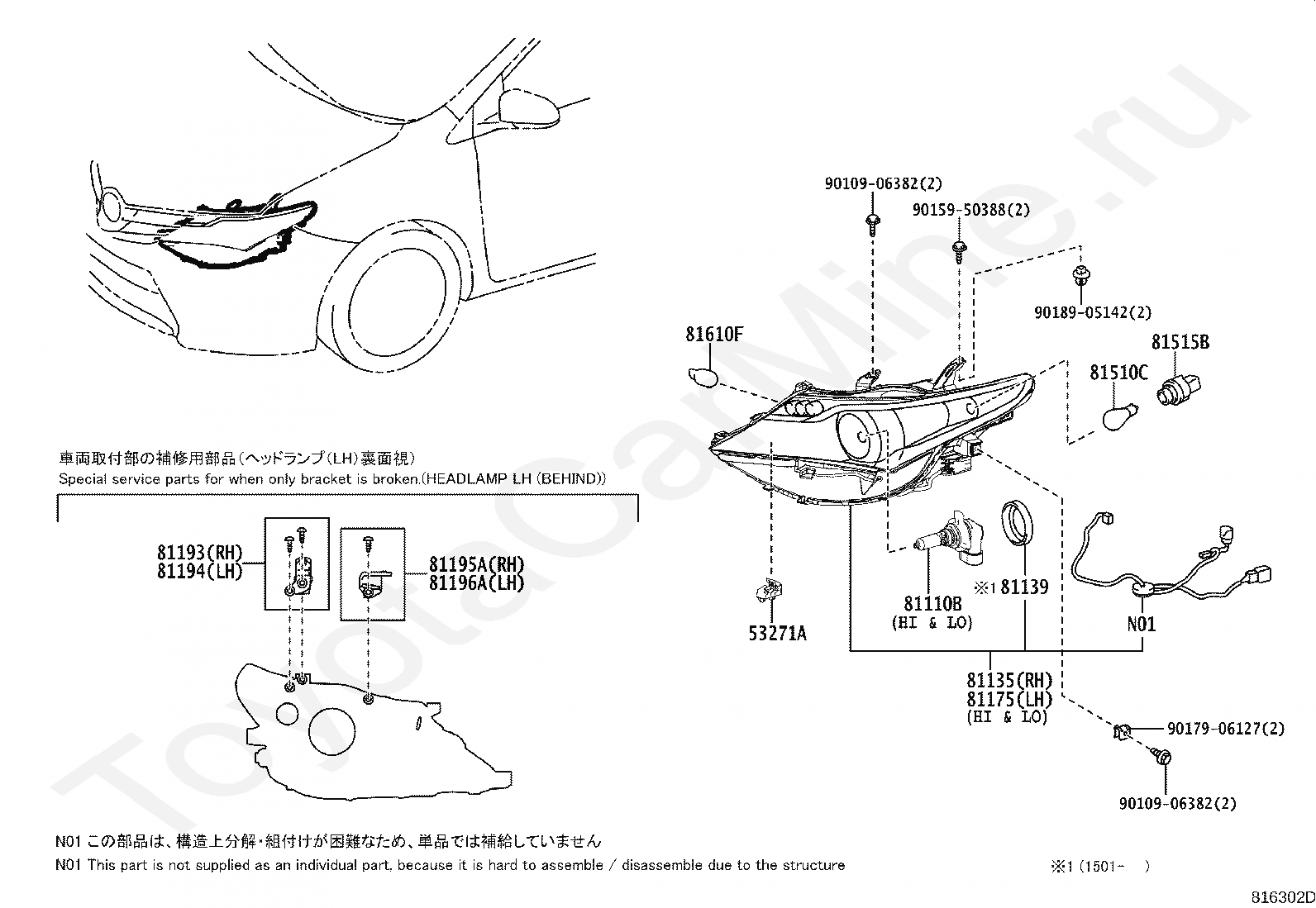

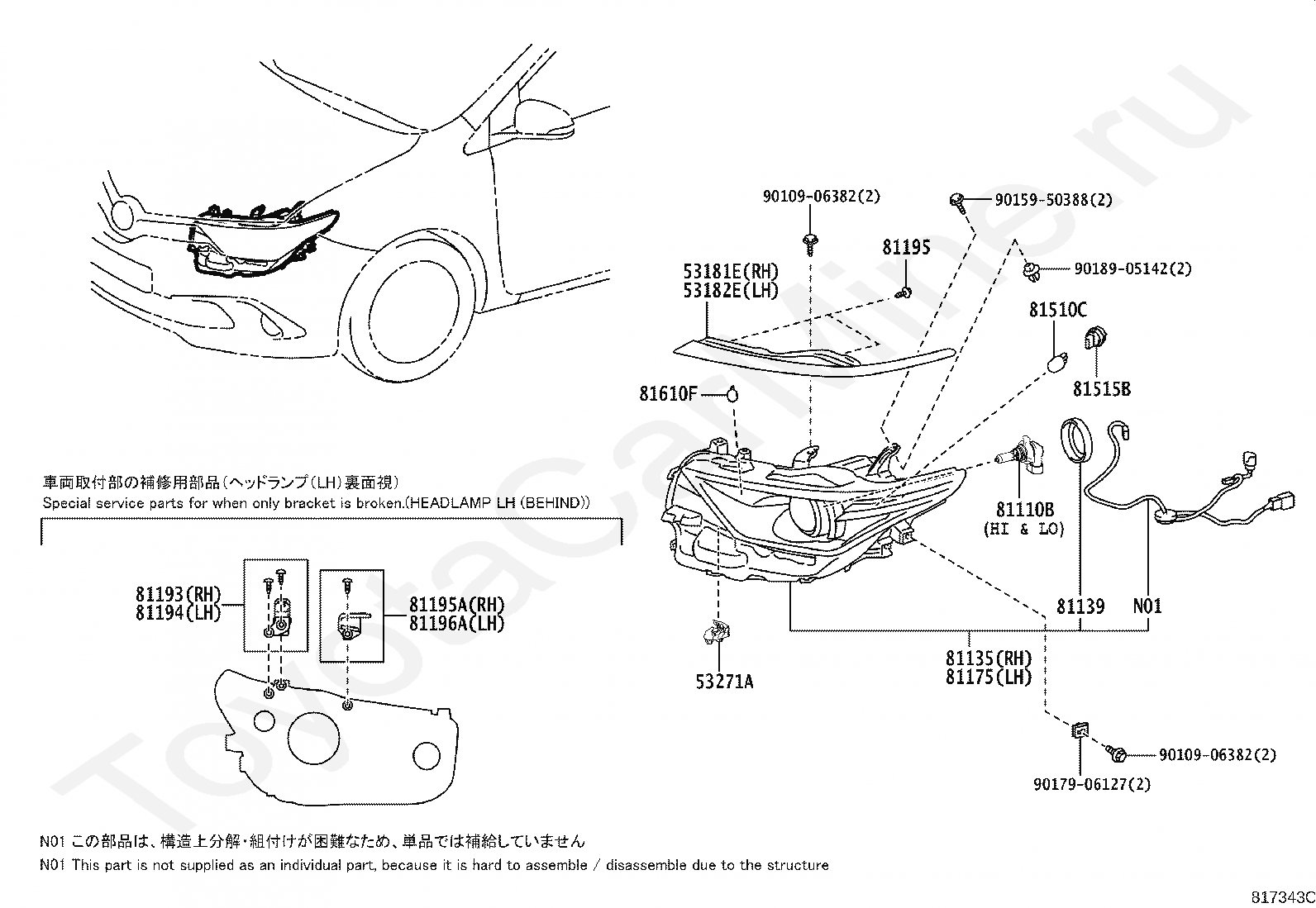

Фары TOYOTA COROLLA/AURIS (JPP)

Код

Описание

53271A

BRACKET, HEADLAMP MOUNTING

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

9010906382

Крепеж

9010906382

Крепеж

9015950388

Крепеж

9017906127

Крепеж

9018905142

Крепеж

Код

Описание

53181E

COVER, HEADLAMP, RH

53182E

COVER, HEADLAMP, LH

53271A

BRACKET, HEADLAMP MOUNTING

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195

SCREW, HEADLAMP

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

9010906382

Крепеж

9010906382

Крепеж

9015950388

Крепеж

9017906127

Крепеж

9018905142

Крепеж

Код

Описание

53181E

COVER, HEADLAMP, RH

53182E

COVER, HEADLAMP, LH

53271A

BRACKET, HEADLAMP MOUNTING

81135

UNIT ASSY, HEADLAMP, RH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195

SCREW, HEADLAMP

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

9010906382

Крепеж

9010906382

Крепеж

9015950388

Крепеж

9017906127

Крепеж

9018905142

Крепеж
