Европа

Модель

AURIS/HYBRID (UKP)

VIN

Дата

2013/06

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

N(MODEL MARK)

Фрейм

ZWE186

КПП

автомат бесступенчатая АКПП

Опции

правый руль 5 дверей HIGH EFFICIENCY TWIN CAM 519W

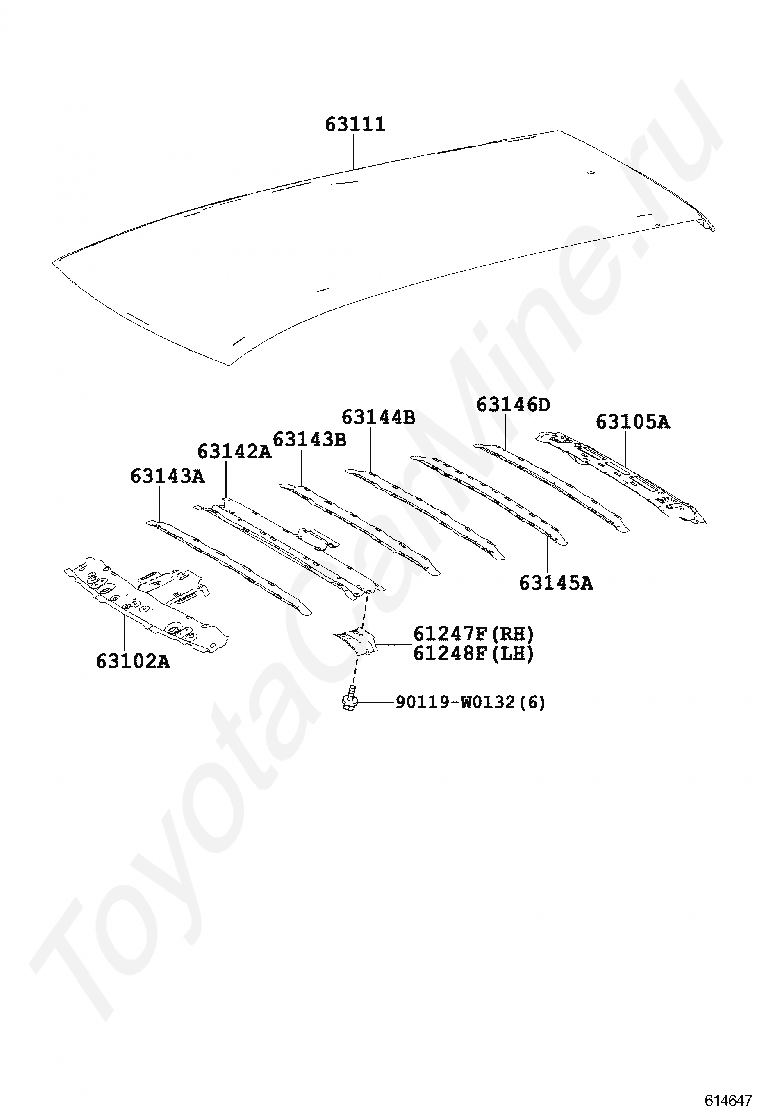

Крыша и заднее стекло TOYOTA AURIS/HYBRID (UKP)

Код

Описание

61247F

REINFORCEMENT, ROOF SIDE RAIL, INNER

61248F

REINFORCEMENT, ROOF SIDE RAIL, INNER, LH

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63111

PANEL, ROOF

63142A

REINFORCEMENT, ROOF PANEL, NO.2

63143A

REINFORCEMENT, ROOF PANEL

63143B

REINFORCEMENT, ROOF PANEL, NO.3

63144B

REINFORCEMENT, ROOF PANEL, NO.4

63145A

REINFORCEMENT, ROOF PANEL, NO.5

63146D

REINFORCEMENT, ROOF PANEL, NO.6

90119W0132

Крепеж

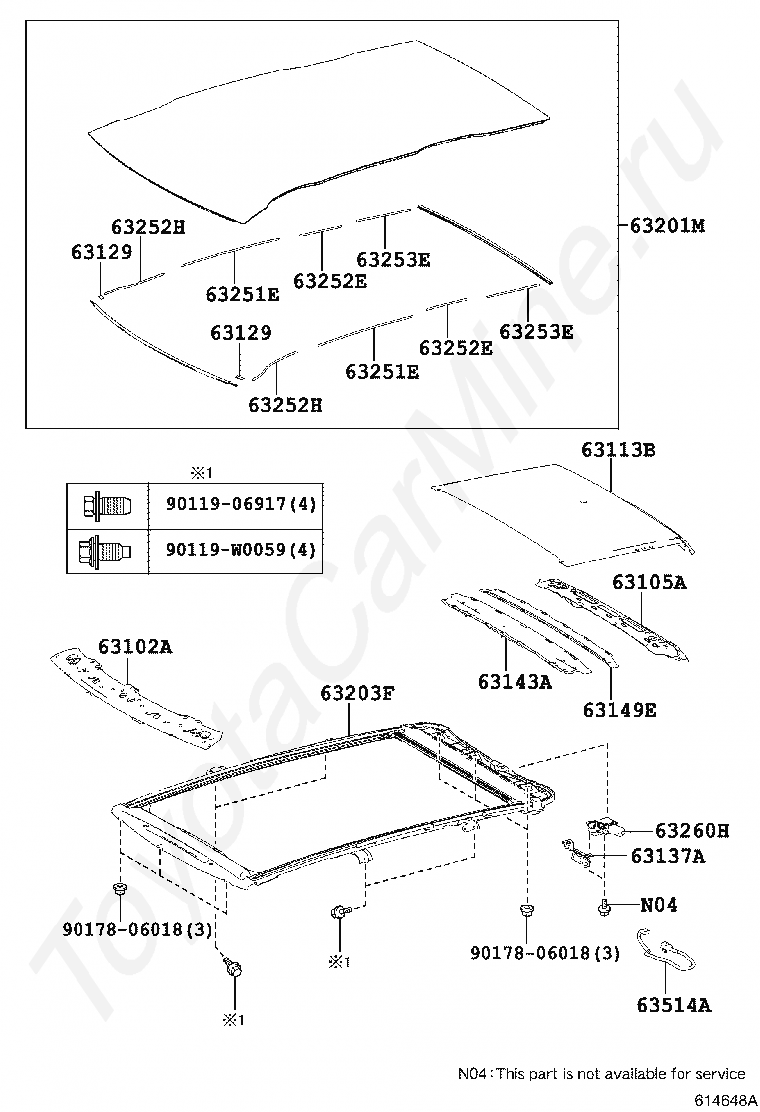

Код

Описание

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63105A

FRAME SUB-ASSY, BACK DOOR OPENING

63113B

PANEL, ROOF, REAR

63129

PROTECTOR, WINDSHIELD HEADER

63129

PROTECTOR, WINDSHIELD HEADER

63137A

BRACKET, DOME LAMP, NO.1

63143A

REINFORCEMENT, ROOF PANEL

63149E

BRACKET, ROOF PANEL REINFORCEMENT, NO.2

63201M

GLASS SUB-ASSY, ROOF WINDOW, NO.1

63203F

HOUSING SUB-ASSY, SLIDING ROOF

63251E

DAM, ROOF WINDOW, NO.1

63251E

DAM, ROOF WINDOW, NO.1

63252E

DAM, ROOF WINDOW, NO.2

63252E

DAM, ROOF WINDOW, NO.2

63252H

DAM, SLIDING ROOF HOUSING

63252H

DAM, SLIDING ROOF HOUSING

63253E

DAM, ROOF WINDOW, NO.3

63253E

DAM, ROOF WINDOW, NO.3

63260H

GEAR ASSY, SLIDING ROOF DRIVE

63514A

WIRE, CONNECTOR

9011906917

Крепеж

90119W0059

Крепеж

9017806018

Крепеж

9017806018

Крепеж

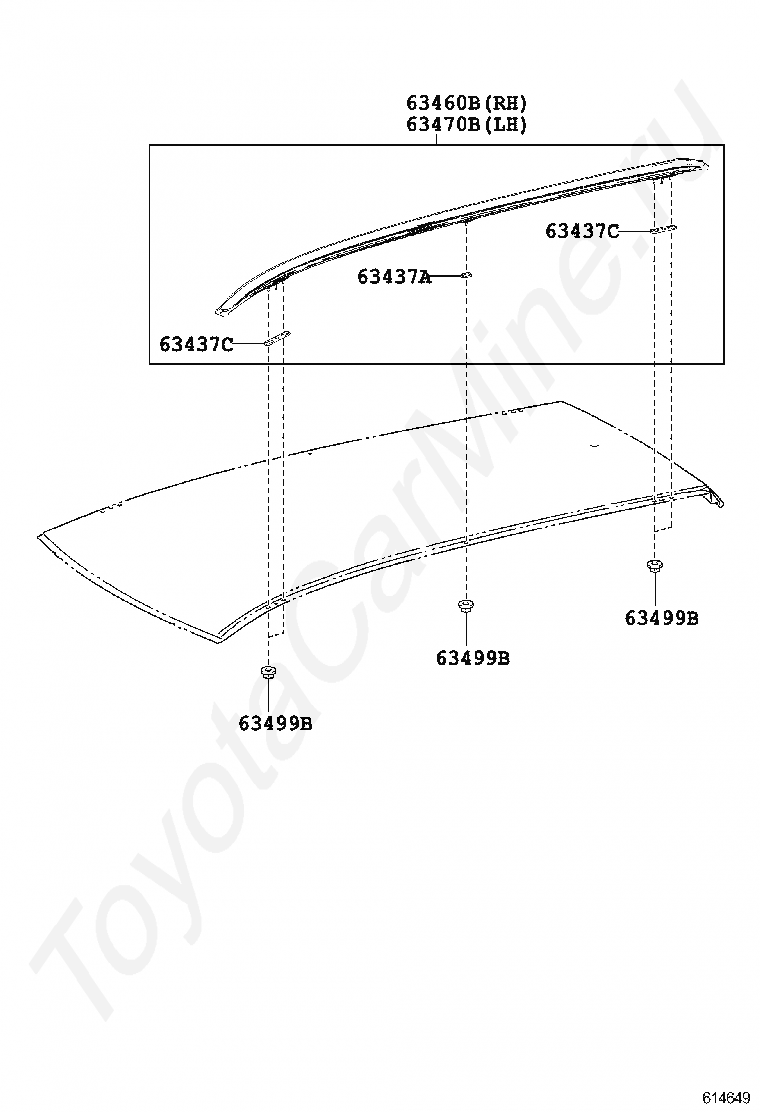

Код

Описание

63437A

SEAL, ROOF CARRIER, NO.2

63437C

SEAL, ROOF CARRIER

63437C

SEAL, ROOF CARRIER

63460B

RACK ASSY, ROOF, RH

63470B

RACK ASSY, ROOF, LH

63499B

NUT, ROOF CARRIER

63499B

NUT, ROOF CARRIER

63499B

NUT, ROOF CARRIER
