Ходовые запчасти

Аксессуары

Каталог

Европа

Модель

AURIS/HYBRID (UKP)

VIN

Дата

2012/10

Двигатель

1,6 литра, 16 клапанов DOHC, EFI

Кузов

хетчбэк

Класс

N(MODEL MARK)

Фрейм

ZRE185

КПП

механика МКПП, 6 скоростей

Опции

правый руль 5 дверей HIGH EFFICIENCY TWIN CAM (VALVEMATIC) 519W

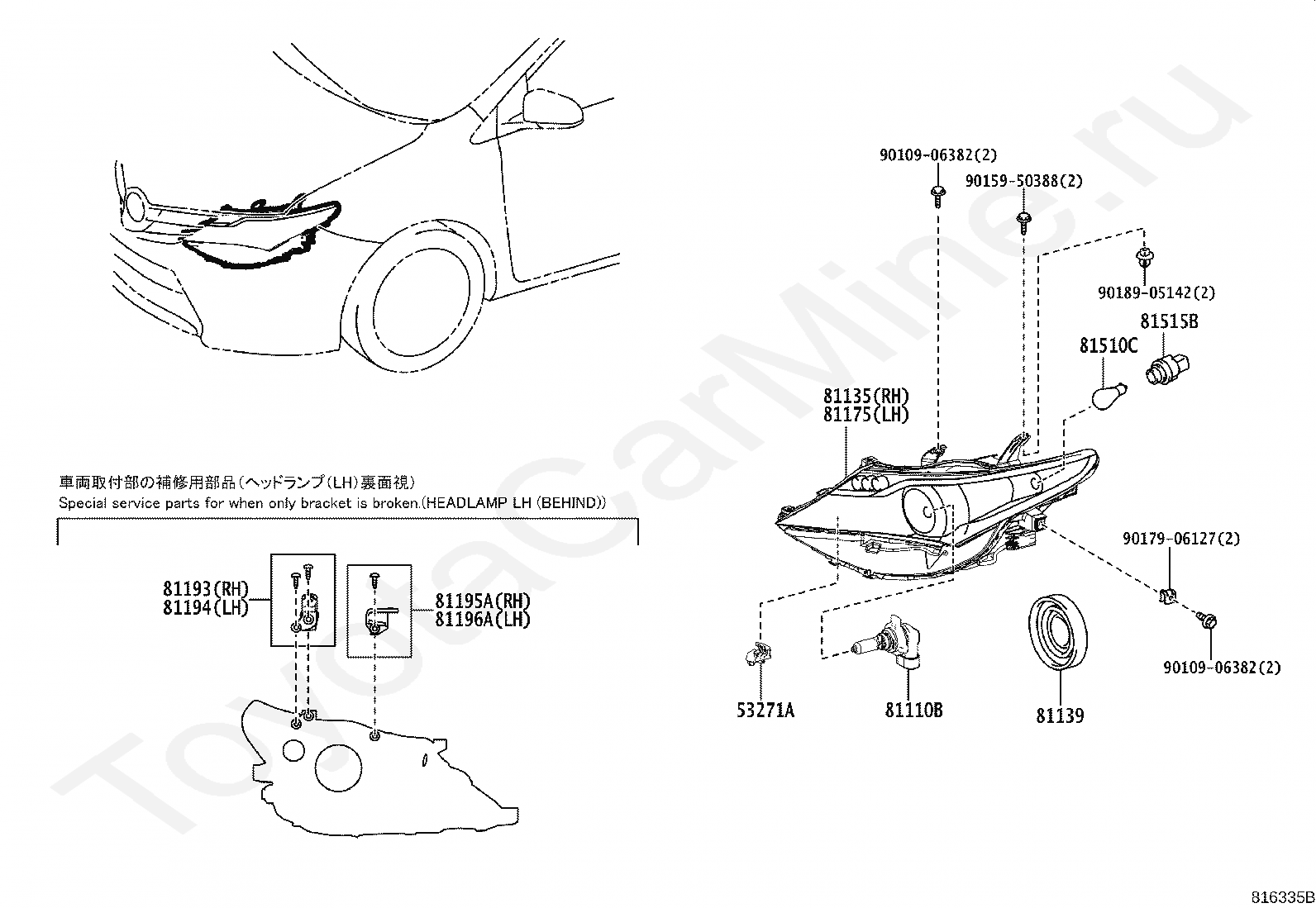

Фары TOYOTA AURIS/HYBRID (UKP)

Код

Описание

53271A

BRACKET, HEADLAMP MOUNTING

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

9010906382

Крепеж

9010906382

Крепеж

9015950388

Крепеж

9017906127

Крепеж

9018905142

Крепеж

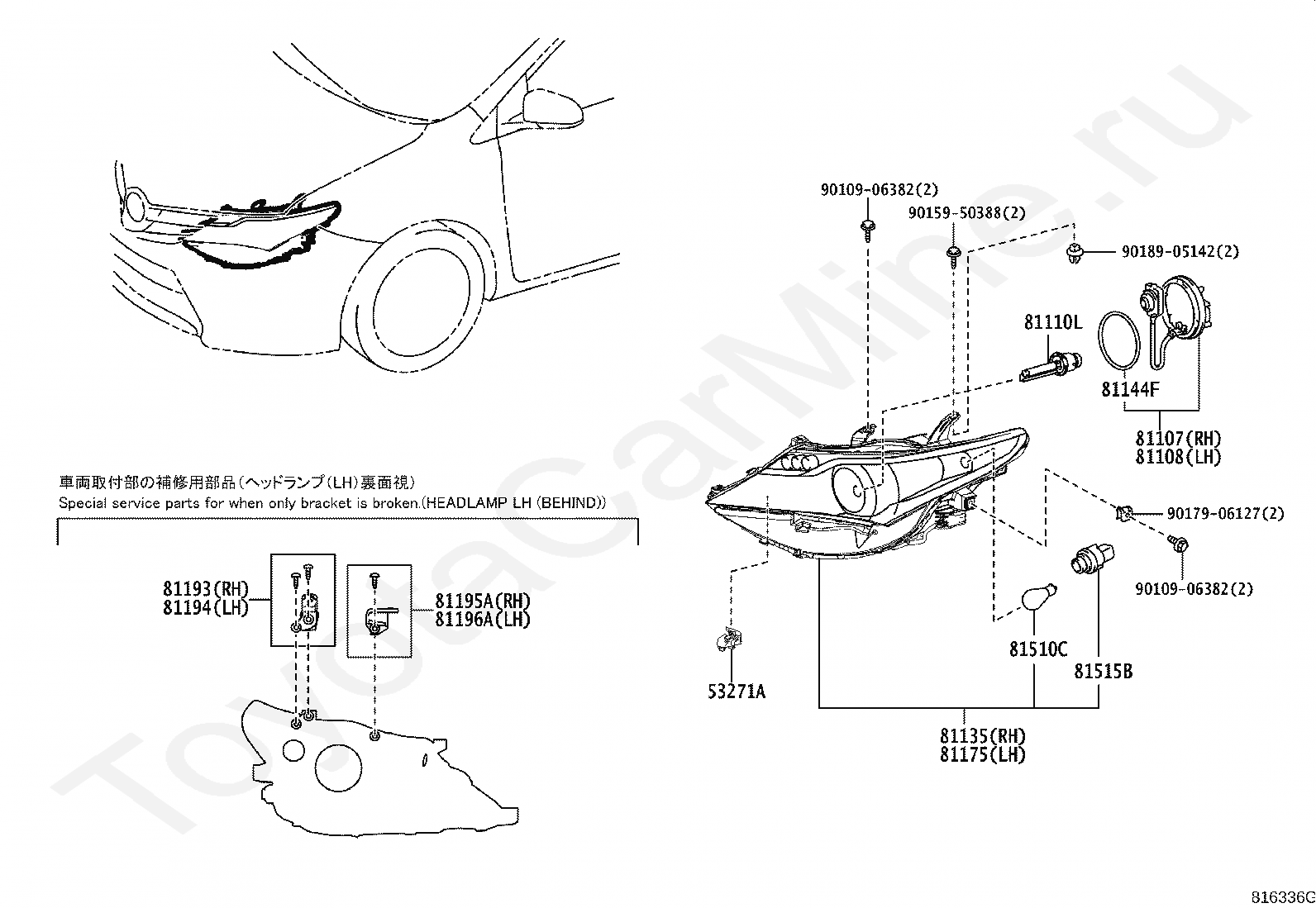

Код

Описание

53271A

BRACKET, HEADLAMP MOUNTING

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110L

BULB, DISCHARGE HEADLAMP

81135

UNIT ASSY, HEADLAMP, RH

81144F

O-RING, HEADLAMP COVER

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

9010906382

Крепеж

9010906382

Крепеж

9015950388

Крепеж

9017906127

Крепеж

9018905142

Крепеж

Код

Описание

53181E

COVER, HEADLAMP, RH

53182E

COVER, HEADLAMP, LH

53271A

BRACKET, HEADLAMP MOUNTING

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81139

COVER, HEADLAMP SOCKET

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

9010906382

Крепеж

9010906382

Крепеж

9015950388

Крепеж

9016840059

Крепеж

9017906127

Крепеж

9018905142

Крепеж

Код

Описание

53181E

COVER, HEADLAMP, RH

53182E

COVER, HEADLAMP, LH

53271A

BRACKET, HEADLAMP MOUNTING

81135

UNIT ASSY, HEADLAMP, RH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

9010906382

Крепеж

9010906382

Крепеж

9015950388

Крепеж

9016840059

Крепеж

9017906127

Крепеж

9018905142

Крепеж
