Каталог

Япония

Модель

AQUA

VIN

Дата

2021/06

Двигатель

1500CC 12-VALVE DOHC EFI

Класс

GRAMS

Фрейм

MXPK11

КПП

вариатор

Опции

776W

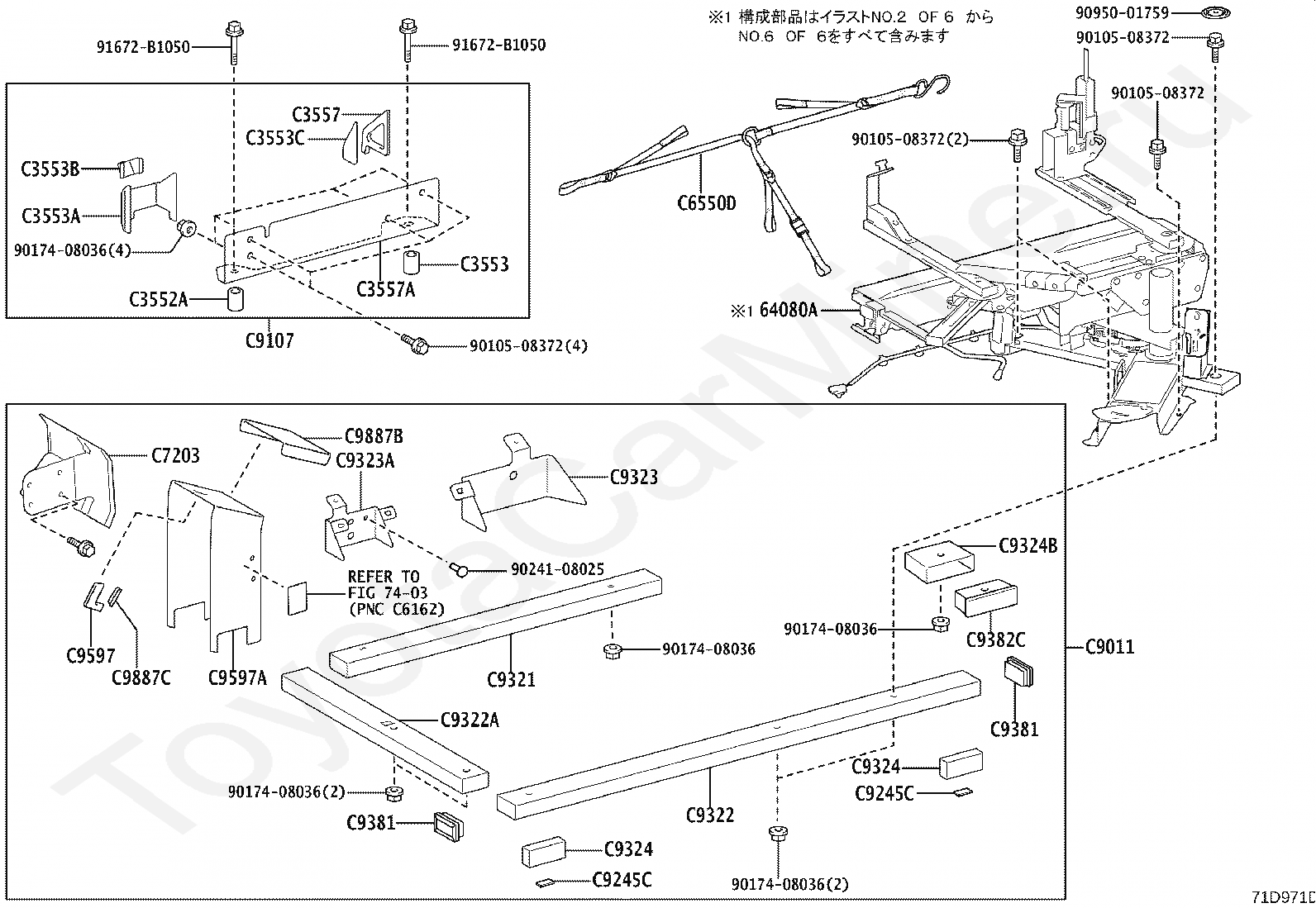

SLOPE & POWER LIFT TOYOTA AQUA







Код

Описание

64080A

ARM ASSY, POWER LIFT

7403

переход к группе запчастей

9010508372

Крепеж

9010508372

Крепеж

9010508372

Крепеж

9010508372

Крепеж

9017408036

Крепеж

9017408036

Крепеж

9017408036

Крепеж

9017408036

Крепеж

9017408036

Крепеж

9024108025

Крепеж

9095001759

Крепеж

91672B1050

Крепеж

91672B1050

Крепеж

C3552A

BRACKET, TECS MOUNTING, NO.2

C3553

BRACKET, TECS MOUNTING, NO.3

C3553A

BRACKET, TECS MOUNTING, NO.4

C3553B

BRACKET, TECS MOUNTING, NO.5

C3553C

BRACKET, TECS MOUNTING, NO.6

C3557

REINFORCE, MOUNTING BRACKET, NO.1

C3557A

REINFORCE, MOUNTING BRACKET, NO.2

C6550D

BELT ASSY, WHEEL CHAIR SET, NO.1

C7203

BRACKET SUB-ASSY, WELCAB WHEEL CHAIR FOOTREST

C9011

PLATE SUB-ASSY, POWER LIFT COLUMN

C9107

BASE SUB-ASSY, POWER LIFT TO FLOOR

C9245C

CUSHION, POWER LIFT PLATFORM, NO.2

C9245C

CUSHION, POWER LIFT PLATFORM, NO.2

C9321

FRAME, POWER LIFT PLATFORM, NO.1

C9322

FRAME, POWER LIFT PLATFORM, NO.2 LH

C9322A

FRAME, POWER LIFT PLATFORM, NO.2 REAR

C9323

FRAME, POWER LIFT PLATFORM, NO.3 RH

C9323A

FRAME, POWER LIFT PLATFORM, NO.3 LH

C9324

FRAME, POWER LIFT PLATFORM, NO.4 RH

C9324

FRAME, POWER LIFT PLATFORM, NO.4 RH

C9324B

FRAME, POWER LIFT PLATFORM, NO.4

C9381

PROTECTOR, PLATFORM, A

C9381

PROTECTOR, PLATFORM, A

C9382C

PROTECTOR, PLATFORM, B NO.4

C9597

PLATE, PLATFORM LOCK STOP, NO.1

C9597A

PLATE, PLATFORM LOCK STOP, NO.2

C9887B

CUSHION, CRANE GUIDE STOPPER, NO.3

C9887C

CUSHION, CRANE GUIDE STOPPER, NO.4

Код

Описание

62371D

CATCH, LOCK

7403

переход к группе запчастей

7403

переход к группе запчастей

8202

переход к группе запчастей

82711Z

CLAMP, WIRING HARNESS

9010506130

Крепеж

9011006031

Крепеж

9011906779

Крепеж

9016350005

Крепеж

9046710034C0

Крепеж

9155180612

Крепеж

9155281022

Крепеж

9155281025

Крепеж

9417060620

Крепеж

C3492

HOLDER, POLE, REAR NO.1

C3492

HOLDER, POLE, REAR NO.1

C3492A

HOLDER, POLE, REAR NO.2

C3492A

HOLDER, POLE, REAR NO.2

C8417Q

SWITCH, LIMIT

C8418

PLATE, LIMIT SWITCH

C8418B

PLATE, LIMIT SWITCH, NO.2

C9064

BASE SUB-ASSY, POWER LIFT MOTOR

C9121A

BASE, POWER LIFT COLUMN

C9183

REINFORCE, POWER LIFT BASE RETAINER

C921952020

Крепеж

C9235A

STOP, POWER LIFT ARM

C9277A

BRACKET, LIFT CONTROL SWITCH

C9382A

PROTECTOR, PLATFORM, B NO.2

C9382A

PROTECTOR, PLATFORM, B NO.2

C9535A

PULLEY, POWER LIFT

C9602

ROD SUB-ASSY, POWER LIFT CYLINDER

C9603

GEAR SUB-ASSY, POWER LIFT

C9604A

BRACKET SUB-ASSY, POWER LIFT MOTOR

C9610B

MOTOR ASSY, POWER LIFT

C9654H

COLLAR, POWER LIFT CYLINDER

C9655D1270

Крепеж

C9715B

BELT, WINCH

C9721A

BEARING, NO.2 WINCH, NO.1

C9721A

BEARING, NO.2 WINCH, NO.1

C9721B

BEARING, NO.2 WINCH, NO.2

C9721C

BEARING, NO.2 WINCH, NO.3

C9734

PIN, WINCH ROLLER, NO.4

C9737

PIN, WINCH ROLLER, NO.6

C9887A

CUSHION, CRANE GUIDE STOPPER, NO.2

Код

Описание

53440E

SUPPORT ASSY, POWER LIFT ARM

53440E

SUPPORT ASSY, POWER LIFT ARM

68961B

BOLT, POWER LIFT ARM, NO.1

68961B

BOLT, POWER LIFT ARM, NO.1

68961K

BOLT, POWER LIFT ARM, NO.2

68961K

BOLT, POWER LIFT ARM, NO.2

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9010506130

Крепеж

9324056014

Крепеж

9417060620

Крепеж

9417060620

Крепеж

C1722

PLATE, CONTROL, LOWER

C1722A

PLATE, CONTROL, LOWER, NO.2

C1722B

PLATE, CONTROL, LOWER, NO.3

C1752A

PLATE, CONTROL ARM, UPPER

C1753A

PLATE, CONTROL ARM, LOWER

C3355C

COVER, CHAIR GUIDE, NO.3

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C9013A

ARM SUB-ASSY, POWER LIFT, NO.2

C9203

LINK SUB-ASSY, POWER LIFT ARM, NO.1 RH

C9203B

LINK SUB-ASSY, POWER LIFT ARM, NO.2

C9204

LINK SUB-ASSY, POWER LIFT ARM, NO.1 LH

C9211A

GUIDE, POWER LIFT

C9211A

GUIDE, POWER LIFT

C9239A

SPACER, LIFT ARM LINK

C9247

PROTECTOR, POWER LIFT LINK, NO.1

C9247A

PROTECTOR, POWER LIFT LINK, NO.2

C9535C

ROLLER, LIFT ARM GUIDE

C9535C

ROLLER, LIFT ARM GUIDE

C9555A

ROLLER, POWER LIFT

C9555A

ROLLER, POWER LIFT

C9555A

ROLLER, POWER LIFT

C9561

STOP, CYLINDER

C9561

STOP, CYLINDER

C9567

BRACKET, POWER LIFT COVER, NO.1

C9567A

BRACKET, POWER LIFT COVER, NO.2

C9567B

BRACKET, POWER LIFT COVER, NO.3

C9654K

COLLAR, POWER LIFT CYLINDER, NO.3

C9654K

COLLAR, POWER LIFT CYLINDER, NO.3

C9654L

COLLAR, POWER LIFT CYLINDER, NO.4

C9654L

COLLAR, POWER LIFT CYLINDER, NO.4

C9731

PIN, WINCH ROLLER, NO.1

C9731

PIN, WINCH ROLLER, NO.1

C9732

PIN, WINCH ROLLER, NO.2

C9773C

COVER, WINCH BELT

C9887

CUSHION, CRANE GUIDE STOPPER

Код

Описание

9010506130

Крепеж

9010506130

Крепеж

9324056014

Крепеж

9324056014

Крепеж

9417060620

Крепеж

9417060620

Крепеж

C3355C

COVER, CHAIR GUIDE, NO.3

C3497A

PLATE, WHEEL CHAIR LOCK, NO.2

C3497B

PLATE, WHEEL CHAIR LOCK, NO.3

C3497C

PLATE, WHEEL CHAIR LOCK, NO.4

C3497D

PLATE, WHEEL CHAIR LOCK, NO.5

C3497E

PLATE, WHEEL CHAIR LOCK, NO.6

C6231

MARK, SIDE

C6359

CAP, PROTECTOR BAR

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C7245

CLIP, WELCAB SEAT TRACK HANDLE

C9013

ARM SUB-ASSY, POWER LIFT, NO.1

C9104

COVER SUB-ASSY, POWER LIFT BEAM

C9104A

COVER SUB-ASSY, POWER LIFT BEAM, NO.2

C9159

SPACER, LIFT ARM GUIDE STOPPER

C9159

SPACER, LIFT ARM GUIDE STOPPER

C9382

PROTECTOR, PLATFORM, B

C9382B

PROTECTOR, PLATFORM, B NO.3

C9555A

ROLLER, POWER LIFT

C9654J

COLLAR, POWER LIFT CYLINDER, NO.2

C9654J

COLLAR, POWER LIFT CYLINDER, NO.2

C9731

PIN, WINCH ROLLER, NO.1

Код

Описание

35469U

SPACER

64778K

PROTECTOR, SPARE WHEEL

64778K

PROTECTOR, SPARE WHEEL

64778K

PROTECTOR, SPARE WHEEL

78899D1010

Крепеж

9020210007

Крепеж

9020210007

Крепеж

9046705161C9

Крепеж

9046705162C1

Крепеж

9046705162C1

Крепеж

9095001759

Крепеж

9417060620

Крепеж

9417060620

Крепеж

9454201400

Крепеж

C3355

COVER, CHAIR GUIDE

C3355E

COVER, CHAIR GUIDE, NO.5

C3497

PLATE, WHEEL CHAIR LOCK, NO.1

C3497F

PLATE, WHEEL CHAIR LOCK, NO.7

C6521

PLATE, WHEEL CHAIR LOCK HOLDER

C6521A

PLATE, WHEEL CHAIR LOCK HOLDER, NO.2

C6536

HINGE, WHEEL CHAIR SET FEMALE

C9189

SPACER, POWER LIFT RETAINER BASE

C9245B

CUSHION, POWER LIFT PLATFORM, NO.1

C9352

GUIDE, STOPPER LIFTER HANDLE

C9382

PROTECTOR, PLATFORM, B

C9382

PROTECTOR, PLATFORM, B

C9564

PROTECTOR, POWER LIFT CYLINDER COVER

C9589A

SPRING, PLATFORM LOCK HANDLE

C9715C

BELT, WINCH, NO.2

C9733

PIN, WINCH ROLLER, NO.3

C9956

SPACER

C9956

SPACER

Код

Описание

35469U

SPACER

78899D1010

Крепеж

9046705162C1

Крепеж

9046705162C1

Крепеж

9046705162C1

Крепеж

9095001759

Крепеж

9454201400

Крепеж

C3355B

COVER, CHAIR GUIDE, NO.2

C3355F

COVER, CHAIR GUIDE, NO.6

C6521E

PLATE, WHEEL CHAIR LOCK HOLDER, NO.3

C9189

SPACER, POWER LIFT RETAINER BASE

C9245B

CUSHION, POWER LIFT PLATFORM, NO.1

C9245B

CUSHION, POWER LIFT PLATFORM, NO.1

C9382

PROTECTOR, PLATFORM, B

C9382

PROTECTOR, PLATFORM, B

C9581B

HANDLE, POWER LIFT

C9956

SPACER

C9956

SPACER

Код

Описание

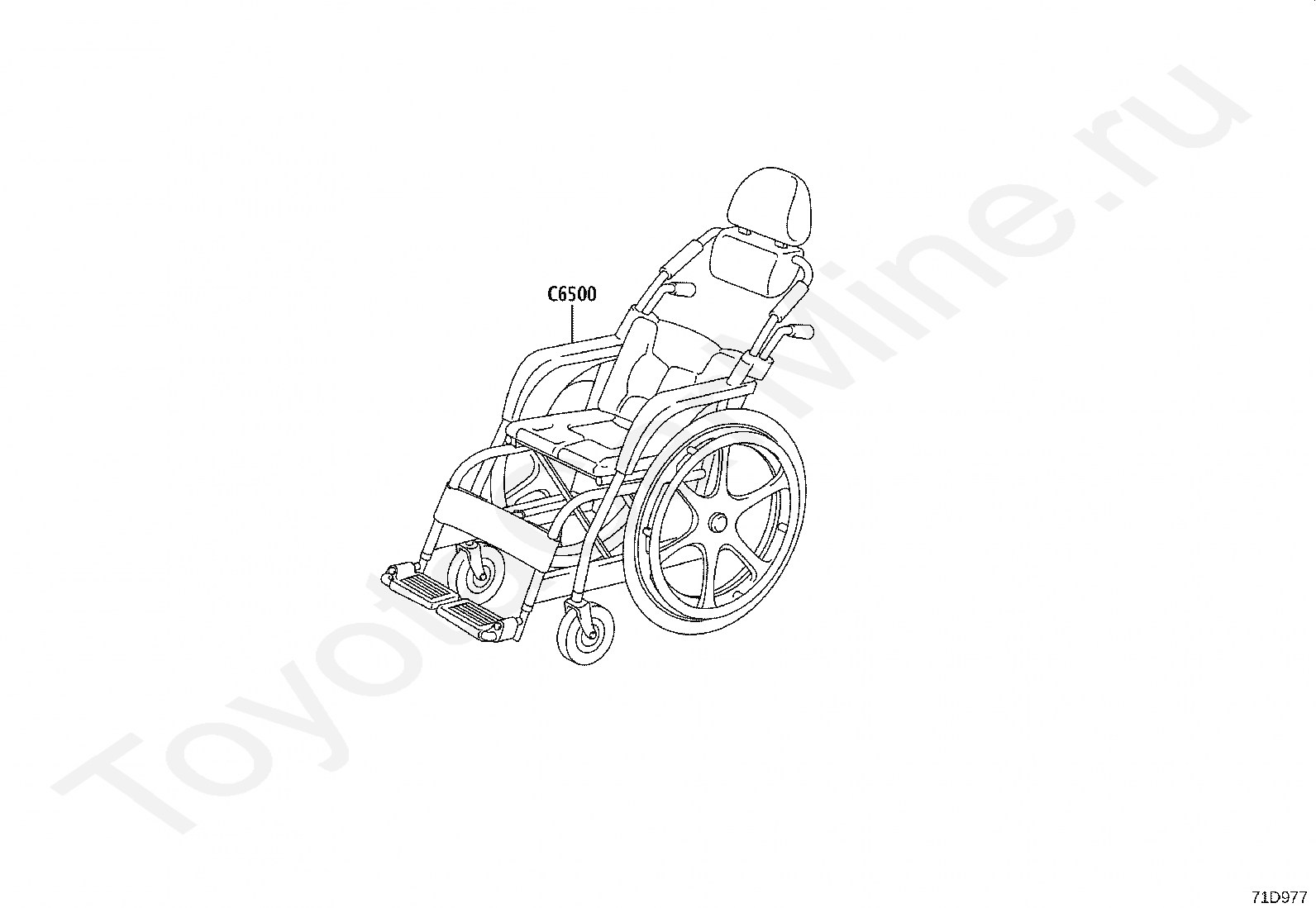

C6500

WHEEL CHAIR ASSY
