Каталог

Япония

Модель

ALTEZZA/ALTEZZA GITA

VIN

Дата

1998/10

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Фрейм

SXE10

КПП

автомат

Опции

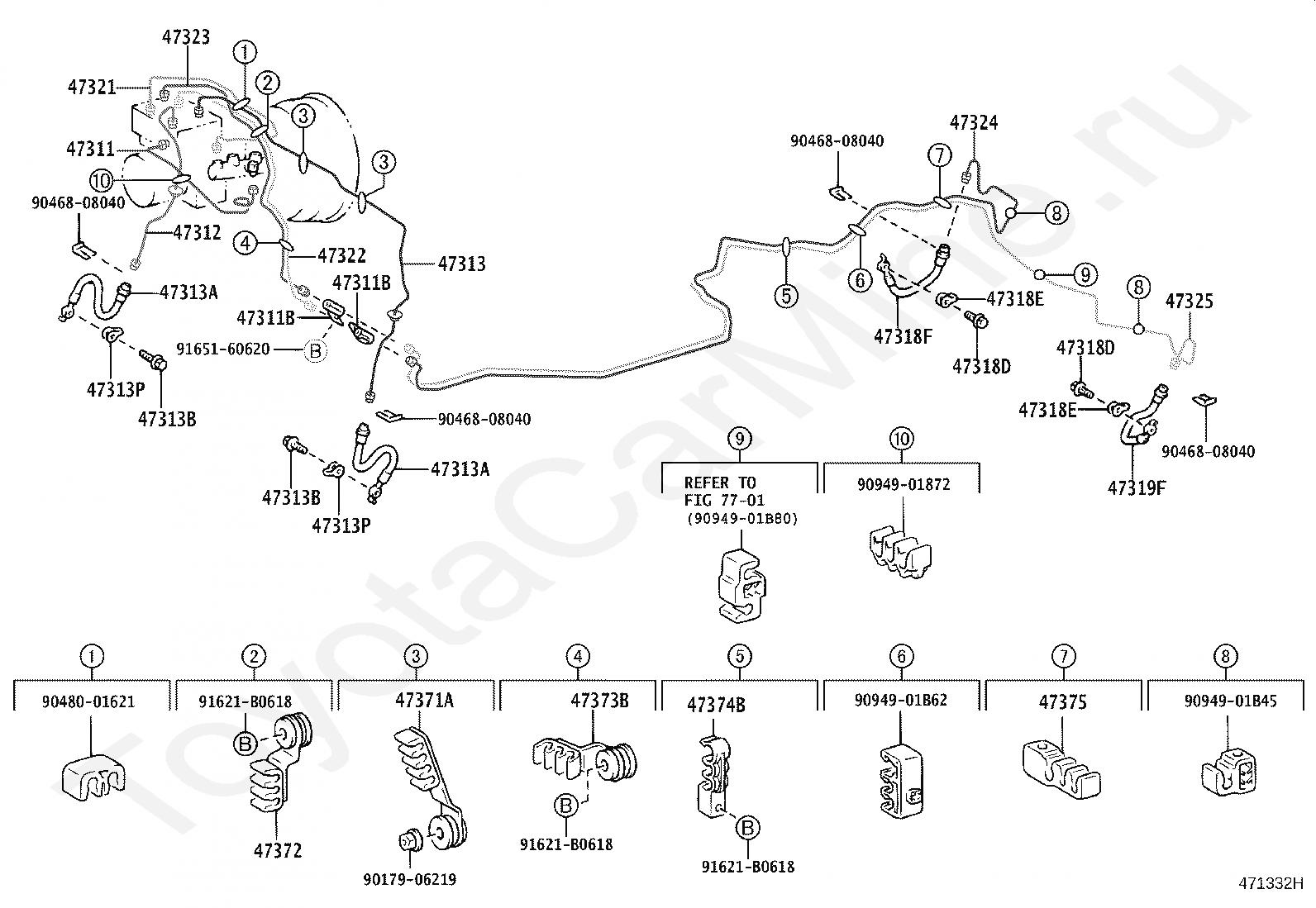

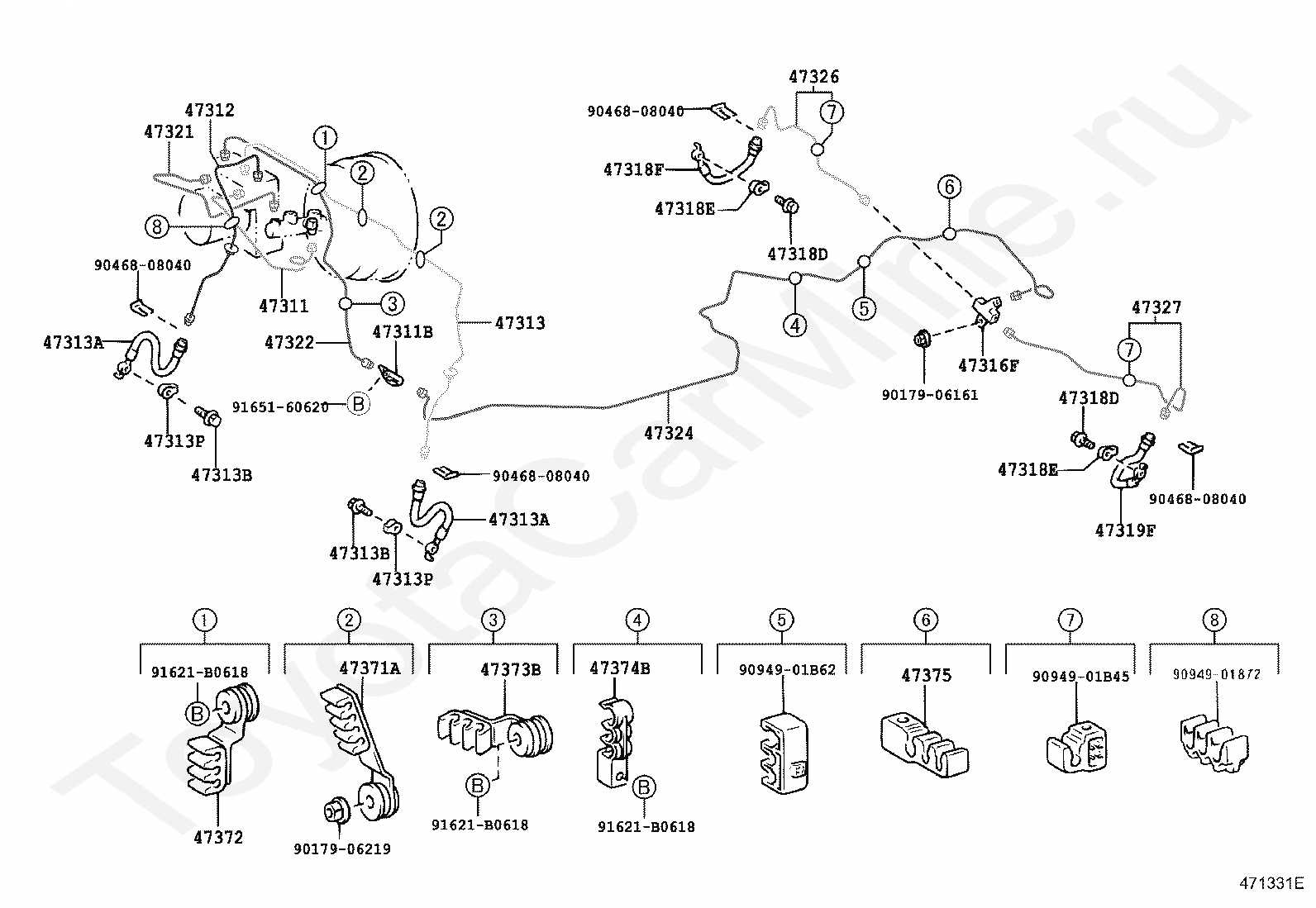

Тормозная магистраль TOYOTA ALTEZZA/ALTEZZA GITA

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47316F

WAY, 3(FOR REAR BRAKE TUBE)

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47324

TUBE, REAR BRAKE, NO.4

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

9017906161

Крепеж

9017906219

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9094901B45

Крепеж

9094901B62

Крепеж

91621B0618

Крепеж

91621B0618

Крепеж

91621B0618

Крепеж

9165160620

Крепеж

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

7701

переход к группе запчастей

9017906219

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9046808040

Крепеж

9048001621

Крепеж

9094901872

Крепеж

9094901B45

Крепеж

9094901B62

Крепеж

91621B0618

Крепеж

91621B0618

Крепеж

91621B0618

Крепеж

9165160620

Крепеж

Код

Описание

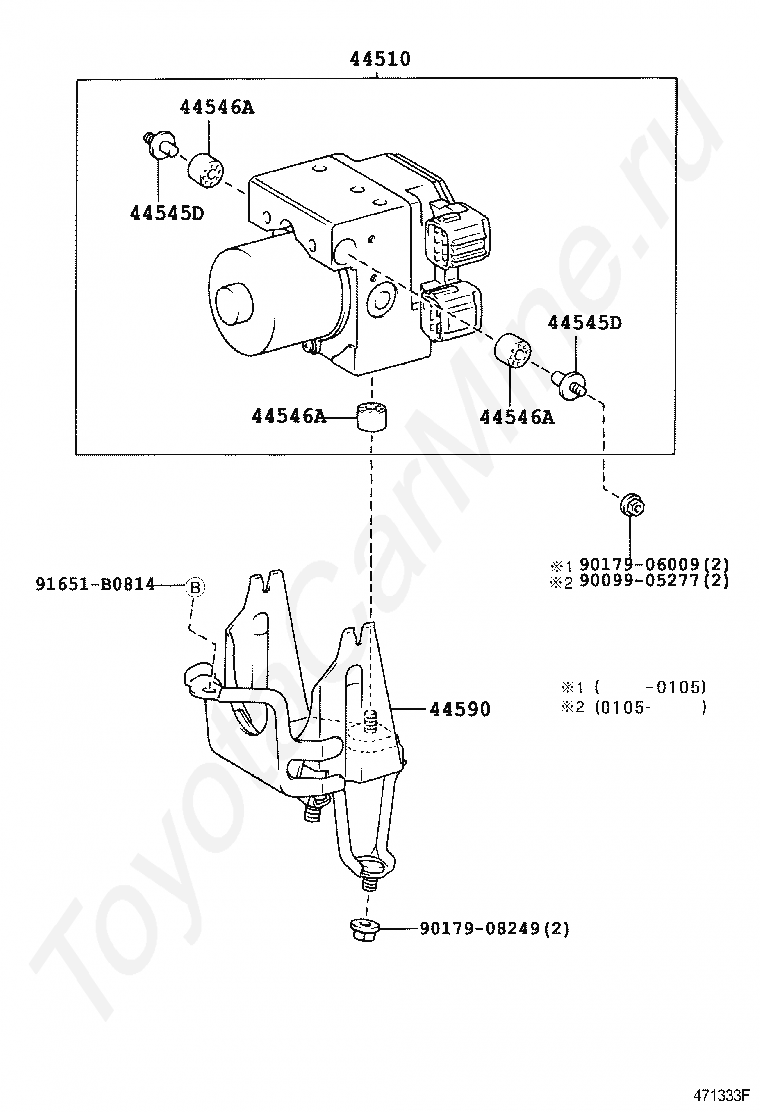

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9009905277

Крепеж

9017906009

Крепеж

9017908249

Крепеж

91651B0814

Крепеж

Код

Описание

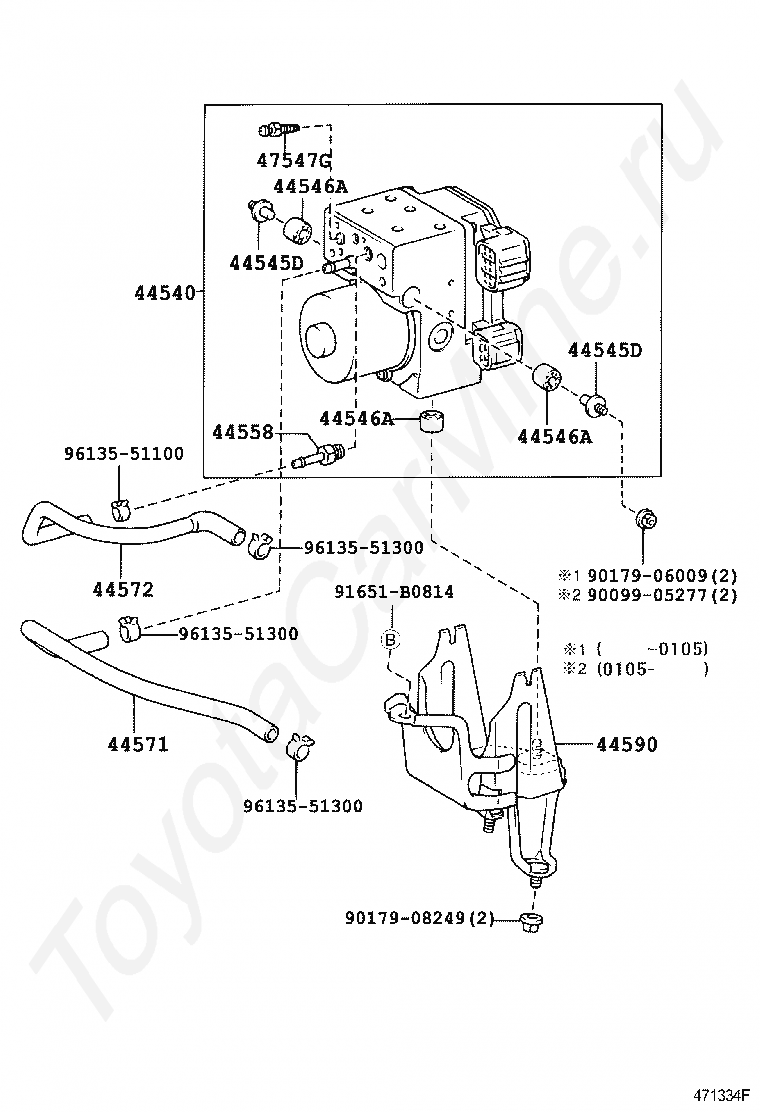

44540

ACTUATOR ASSY, ABS & TRACTION

44545D

HOLDER, BRAKE ACTUATOR BOLT

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44558

TUBE, BRAKE ACTUATOR, NO.8

44571

HOSE, BRAKE ACTUATOR

44572

HOSE, BRAKE ACTUATOR, NO.2

44590

BRACKET ASSY, BRAKE ACTUATOR

47547G

PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR)

9009905277

Крепеж

9017906009

Крепеж

9017908249

Крепеж

91651B0814

Крепеж

9613551100

Крепеж

9613551300

Крепеж

9613551300

Крепеж

9613551300

Крепеж

Тормозная магистраль TOYOTA ALTEZZA/ALTEZZA GITA
