Каталог

Япония

Модель

ALTEZZA/ALTEZZA GITA

VIN

Дата

1998/10

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Фрейм

SXE10

КПП

автомат

Опции

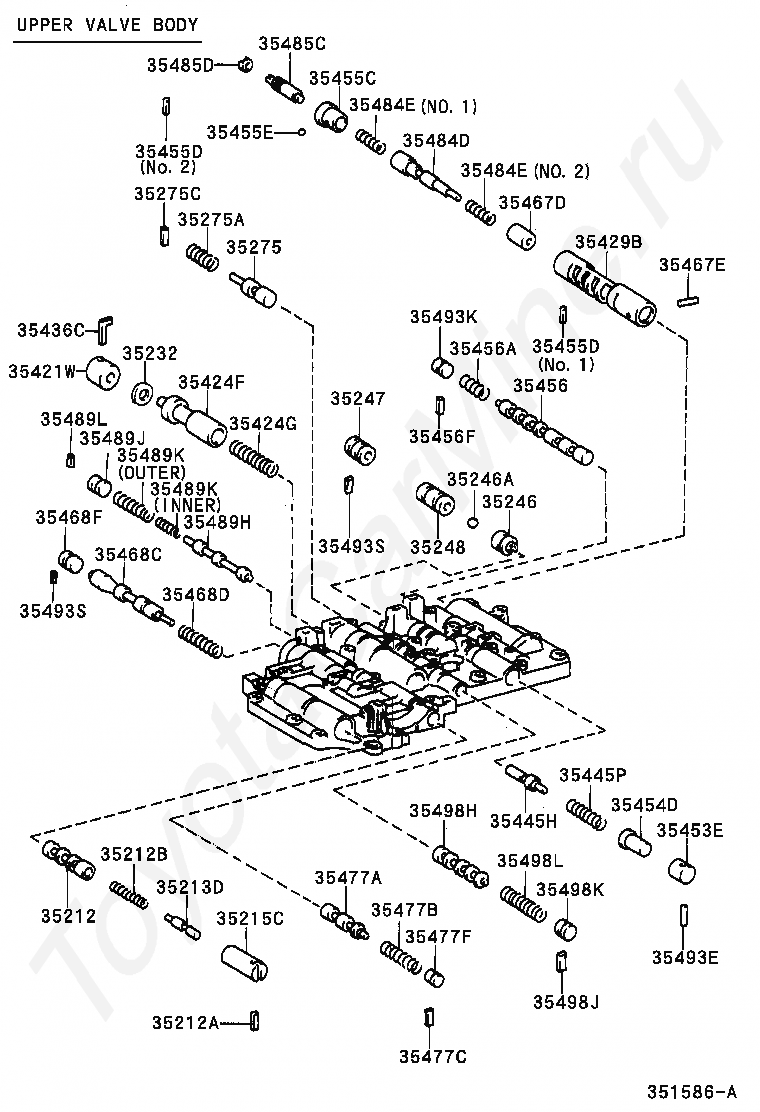

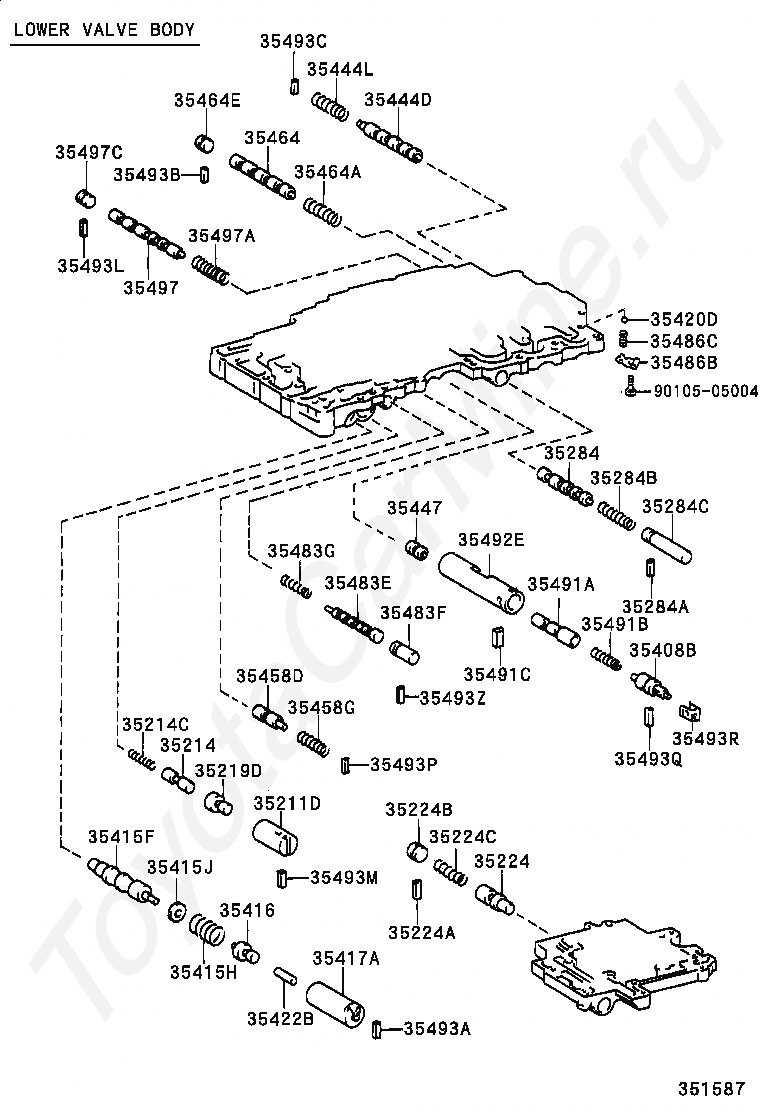

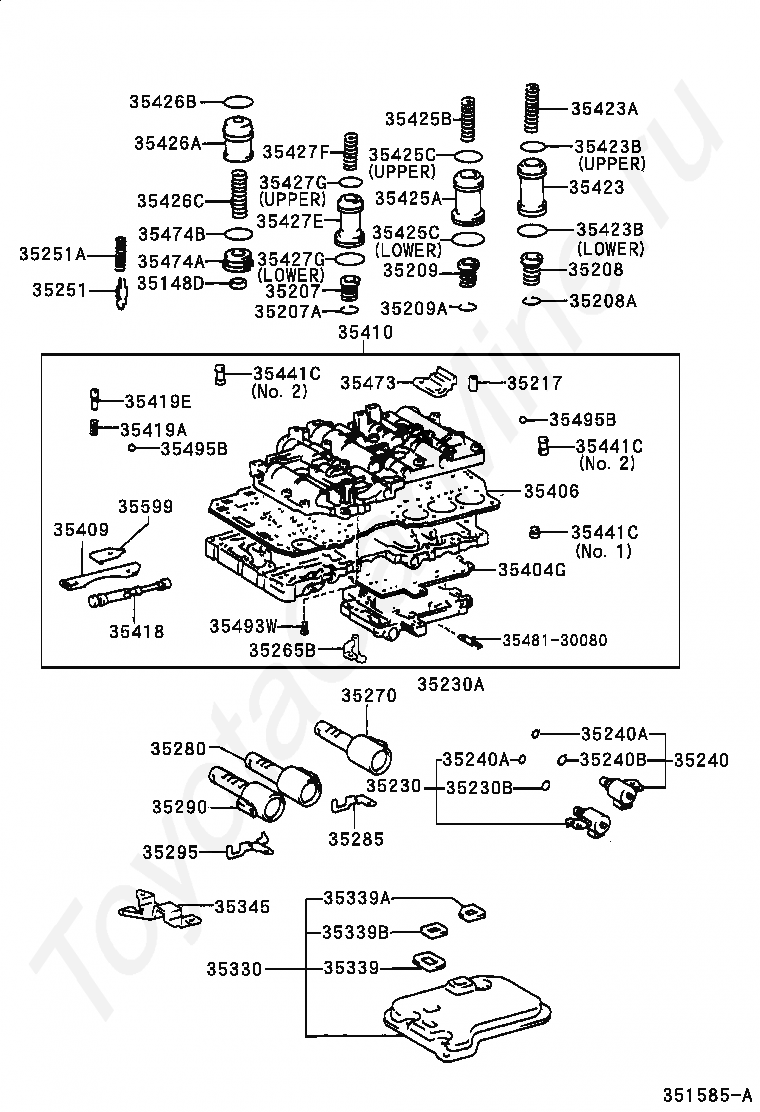

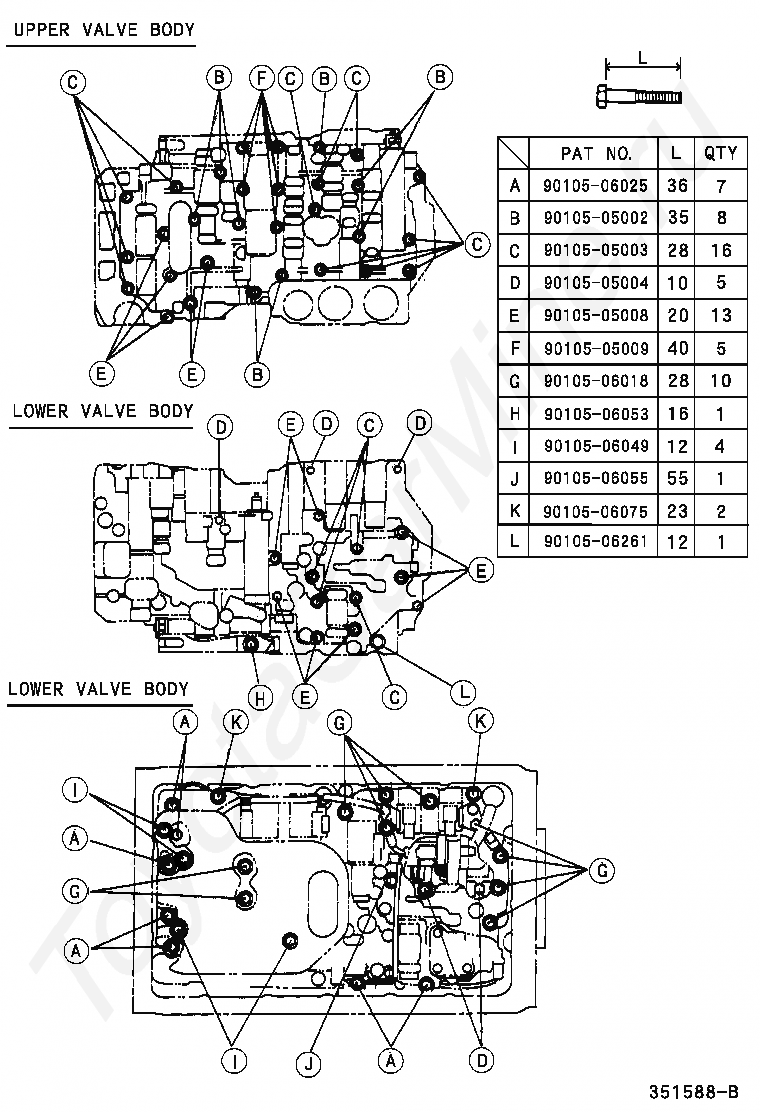

VALVE BODY & OIL STRAINER (ATM) TOYOTA ALTEZZA/ALTEZZA GITA

Код

Описание

35148D

GASKET (FOR C-O ACCUMULATOR PISTON)

35207

SPRING SUB-ASSY, B-0 ACCUMULATOR

35207A

RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35209

SPRING SUB-ASSY, C-2 ACCUMULATOR

35209A

RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

35217

VALVE, ACCUMULATOR CONTROL, NO.2

35230

SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

35230A

RING, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2)

35230B

RING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2)

35240

SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

35240A

RING, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)

35240A

RING, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)

35240B

RING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35265B

TUBE, OIL COOLER RETURN

35270

SOLENOID ASSY, SHIFT CONTROL

35280

SOLENOID ASSY, LOCK UP CONTROL

35285

PLATE, SOLENOID LOCK

35285

PLATE, SOLENOID LOCK

35290

SOLENOID ASSY, LINE PRESSURE CONTROL

35295

PLATE, SOLENOID LOCK, NO.2

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35339A

GASKET, OIL STRAINER, NO.1

35339B

GASKET, OIL STRAINER, NO.2

35345

PLATE, OIL GUIDE

35404G

PLATE SUB-ASSY, VALVE BODY, NO.2

35406

PLATE SUB-ASSY, VALVE BODY

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35419E

VALVE, CHECK, NO.3

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426A

PISTON, C-0 ACCUMULATOR

35426B

RING, O (FOR C-0 ACCUMULATOR PISTON)

35426C

SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

35427E

PISTON, B-0 ACCUMULATOR

35427F

SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35441C

STRAINER, SOLENOID OIL

35441C

STRAINER, SOLENOID OIL

35441C

STRAINER, SOLENOID OIL

35473

COVER, TRANSMISSION VALVE BODY

35474A

COVER, ACCUMULATOR

35474B

RING, O (FOR ACCUMULATOR COVER)

3548130080

Крепеж

35493W

SEAT, VALVE BODY

35495B

BALL, CHECK, NO.1

35495B

BALL, CHECK, NO.1

35599

COVER, MANUAL DETENT SPRING

Код

Описание

35212

VALVE, LOCK UP RELAY

35212A

SEAT, PLUG (FOR LOCK UP RELAY VALVE)

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213D

PLUNGER, LOCK UP RELAY VALVE

35215C

SLEEVE, LOCK UP RELAY VALVE, NO.1

35232

RING, C-1 ACCUMULATOR SEAL

35246

VALVE, CHECK, NO.1

35246A

BALL, REVERSE SHIFT RESTRICT (FOR CHECK VALVE NO.1)

35247

VALVE, CHECK, NO.2

35248

VALVE, CHECK, NO.3

35275

VALVE, SOLENOID MODULATOR

35275A

SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE)

35275C

KEY, STRAIGHT

35421W

PLUG, C-1 ACCUMULATOR VALVE

35424F

VALVE, C-1 ACCUMULATOR

35424G

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR VALVE)

35429B

SLEEVE, B-3 CONTROL VALVE

35436C

RETAINER, C-1 ACCUMULATOR VALVE

35445H

VALVE, 2ND COAST MODULATOR

35445P

SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)

35453E

SLEEVE, 2ND COAST MODULATOR VALVE

35454D

PLUNGER, 2ND COAST MODULATOR VALVE

35455C

PLUG, B-3 CONTROL VALVE

35455D

SEAT, SHIFT VALVE PLUG, NO.3

35455D

SEAT, SHIFT VALVE PLUG, NO.3

35455E

ROLLER, NO.2 (FOR B-3 CONTROL VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456F

KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)

35467D

PLUNGER, B-3 CONTROL VALVE

35467E

ROLLER, NO.1 (FOR B-3 CONTROL VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35477A

VALVE, OVERDRIVE CLUTCH EXHAUST

35477B

SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35477C

SEAT, VALVE (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35477F

PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35484D

VALVE, B-3 CONTROL

35484E

SPRING, COMPRESSION (FOR B-3 CONTROL VALVE)

35484E

SPRING, COMPRESSION (FOR B-3 CONTROL VALVE)

35485C

ADJUSTER, B-3 CONTROL VALVE

35485D

CAP (FOR B-3 CONTROL VALVE ADJUSTER)

35489H

VALVE, C-1 ORIFICE CONTROL

35489J

PLUG (FOR C-1 ORIFICE CONTROL VALVE)

35489K

SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE)

35489K

SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE)

35489L

KEY, STRAIGHT (FOR C-1 ORIFICE CONTROL VALVE)

35493E

SEAT, 2ND COAST MODULATOR VALVE PLUG

35493K

SEAT, SHIFT VALVE PLUG

35493S

SEAT, SECONDARY REGULATOR VALVE PLUG

35493S

SEAT, SECONDARY REGULATOR VALVE PLUG

35498H

VALVE, 4-5 SHIFT

35498J

SEAT, SHIFT VALVE PLUG, NO.2

35498K

PLUG (FOR 4-5 SHIFT VALVE)

35498L

SPRING, COMPRESSION (FOR 4-5 SHIFT VALVE)

Код

Описание

35211D

SLEEVE, LOCK UP CONTROL VALVE

35214

VALVE, LOCK UP CONTROL

35214C

SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE)

35219D

PLUNGER, LOCK UP CONTROL VALVE

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224B

PLUG (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35284

VALVE, SOLENOID RELAY

35284A

KEY, STRAIGHT (FOR SOLENOID RELAY VALVE)

35284B

SPRING, COMPRESSION (FOR SOLENOID RELAY VALVE)

35284C

PLUG (FOR SOLENOID RELAY VALVE)

35408B

PLUG SUB-ASSY, ACCUMULATOR CONTROL VALVE

35415F

VALVE, PRIMARY REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35420D

BALL (FOR LOWER VALVE BODY)

35422B

PLUNGER, PRIMARY REGULATOR VALVE, NO.2

35444D

VALVE, RELEASE CONTROL

35444L

SPRING, COMPRESSION (FOR SHIFT VALVE PLUG SEAT)

35447

PLUNGER, ACCUMULATOR CONTROL VALVE

35458D

VALVE, CUT BACK

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35483E

VALVE, C-0 CONTROL RELAY

35483F

PLUG (FOR C-0 CONTROL RELAY VALVE)

35483G

SPRING, COMPRESSION (FOR C-0 CONTROL RELAY VALVE)

35486B

SEAT, PRESSURE RELIEF VALVE SPRING

35486C

SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35492E

SLEEVE, ACCUMULATOR CONTROL VALVE

35493A

SEAT, PRIMARY REGULATOR VALVE PLUG

35493B

SEAT, 1-2 SHIFT VALVE PLUG

35493C

SEAT, RELEASE CONTROL VALVE PLUG

35493L

SEAT, SHIFT VALVE PLUG

35493M

SEAT, LOCK UP CONTROL VALVE PLUG

35493P

SEAT, CUT BACK VALVE PLUG

35493Q

SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1

35493R

SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.2

35493Z

SEAT, SHIFT VALVE PLUG, NO.1

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

9010505004

Крепеж

Код

Описание

9010505002

Крепеж

9010505003

Крепеж

9010505004

Крепеж

9010505008

Крепеж

9010505009

Крепеж

9010506018

Крепеж

9010506025

Крепеж

9010506049

Крепеж

9010506053

Крепеж

9010506055

Крепеж

9010506075

Крепеж

9010506261

Крепеж

Код

Описание

35148D

GASKET (FOR C-O ACCUMULATOR PISTON)

35207

SPRING SUB-ASSY, B-0 ACCUMULATOR

35207A

RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35209

SPRING SUB-ASSY, C-2 ACCUMULATOR

35209A

RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

35230

SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

35230A

RING, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2)

35230B

RING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2)

35240

SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

35240A

RING, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)

35240B

RING, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35270

SOLENOID ASSY, SHIFT CONTROL

35280

SOLENOID ASSY, LOCK UP CONTROL

35285

PLATE, SOLENOID LOCK

35290

SOLENOID ASSY, LINE PRESSURE CONTROL

35295

PLATE, SOLENOID LOCK, NO.2

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35339A

GASKET, OIL STRAINER, NO.1

35339B

GASKET, OIL STRAINER, NO.2

35345

PLATE, OIL GUIDE

35410

BODY ASSY, TRANSMISSION VALVE

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426A

PISTON, C-0 ACCUMULATOR

35426B

RING, O (FOR C-0 ACCUMULATOR PISTON)

35426C

SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

35427E

PISTON, B-0 ACCUMULATOR

35427F

SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35474A

COVER, ACCUMULATOR

35474B

RING, O (FOR ACCUMULATOR COVER)

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

9010505004

Крепеж

9010505004

Крепеж

9010505004

Крепеж

9010506018

Крепеж

9010506049

Крепеж

9010506055

Крепеж

9010506261

Крепеж

9010506261

Крепеж

91511C0622

Крепеж

91511C0635

Крепеж

VALVE BODY & OIL STRAINER (ATM) TOYOTA ALTEZZA/ALTEZZA GITA
