Ближний Восток

Модель

ALPHARD/VELLFIRE/HV

VIN

Дата

2011/10

Двигатель

3,5 литра, 24 клапана, DOHC, EFI

Класс

350G TYPE

Фрейм

GGH20

КПП

АКПП, 6 скоростей

Опции

левый руль 7-местный GENERAL COUNTRIES ALPHARD 544W

FRONT SEAT & SEAT TRACK TOYOTA ALPHARD/VELLFIRE/HV







Код

Описание

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71140A

LEG ASSY, FRONT SEAT, LH

71200

SEAT ASSY, FRONT LH

71512

PAD, FRONT SEAT CUSHION, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

71538D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552A

PAD, FRONT SEAT BACK, LH

71793B

CLIP, FRONT SEAT BACK POCKET

71812T

SHIELD, FRONT SEAT CUSHION, LH

71849F

CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71867X

SHIELD, FRONT SEAT CUSHION, FRONT LH

71873V

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874V

SHIELD, FRONT SEAT CUSHION, LOWER LH, OUTER

71910F

HEADREST ASSY, FRONT SEAT, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

71A49A

COVER, FRONT SEAT LEG(FOR LH SEAT)

71H75C

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

71H75D

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT BACK FRAME)

71H76C

COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)

71H76D

COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK FRAME)

71T75M

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71T76R

COVER, RECLINING ADJUSTER OUTSIDE, LH

72668H

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.1

72668J

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.2

72810K

ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)

72848L

CAP, SEAT ARMREST, NO.1(FOR LH SEAT)

73920B

AIR BAG ASSY, FRONT SEAT, LH

76519F

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740048

Крепеж

9017908233

Крепеж

9017908233

Крепеж

91674A1025

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356855016

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

71099B

COVER SUB-ASSY, FRONT SEAT BACK, LOWER LH

71120E

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71160D

FRAME ASSY, FRONT SEAT BACK, LOWER LH

71318C

HOOK, FRONT SEAT BACK LOCK

71587L

PROTECTOR, FRONT SEAT BACK EDGE, LH

71587N

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71643B

UNIT, ACTIVE HEADREST, UPR

71644A

UNIT, ACTIVE HEADREST, LWR

71705G

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71759F

HOOK, FRONT SEAT BACK, LH

72345K

CAP, SEAT STAND FRAME, LH

72525H

HANDLE, FRONT SEAT BACK LOCK

72526P

HANDLE, RECLINING ADJUSTER RELEASE, LH NO.1

72526Q

HANDLE, RECLINING ADJUSTER RELEASE, LH NO.2

72668K

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3

72668K

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3

7270258070

Крепеж

7270258070

Крепеж

85822E

MOTOR ASSY, POWER SEAT SLIDE, LH

85822F

MOTOR ASSY, POWER SEAT RECLINING, LH

85822G

MOTOR ASSY, POWER SEAT TILT, LH

85822H

MOTOR ASSY, POWER SEAT LIFTER, LH

9011005011

Крепеж

9011005011

Крепеж

9011005012

Крепеж

9011005013

Крепеж

9016740044

Крепеж

9016840061

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9356854512

Крепеж

Код

Описание

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71140A

LEG ASSY, FRONT SEAT, LH

71512

PAD, FRONT SEAT CUSHION, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

71538D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552A

PAD, FRONT SEAT BACK, LH

71793B

CLIP, FRONT SEAT BACK POCKET

71812T

SHIELD, FRONT SEAT CUSHION, LH

71849F

CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71867X

SHIELD, FRONT SEAT CUSHION, FRONT LH

71873V

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874V

SHIELD, FRONT SEAT CUSHION, LOWER LH, OUTER

71910F

HEADREST ASSY, FRONT SEAT, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

71A49A

COVER, FRONT SEAT LEG(FOR LH SEAT)

71H75C

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

71H75C

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

71H75D

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT BACK FRAME)

71H76C

COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)

71H76D

COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK FRAME)

71T76R

COVER, RECLINING ADJUSTER OUTSIDE, LH

72668H

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.1

72668J

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.2

72810K

ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)

72848L

CAP, SEAT ARMREST, NO.1(FOR LH SEAT)

73920B

AIR BAG ASSY, FRONT SEAT, LH

76519F

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740048

Крепеж

9017908233

Крепеж

9017908233

Крепеж

91674A1025

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356855016

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

71099B

COVER SUB-ASSY, FRONT SEAT BACK, LOWER LH

71120E

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71160D

FRAME ASSY, FRONT SEAT BACK, LOWER LH

71318C

HOOK, FRONT SEAT BACK LOCK

71587L

PROTECTOR, FRONT SEAT BACK EDGE, LH

71587N

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71643B

UNIT, ACTIVE HEADREST, UPR

71644A

UNIT, ACTIVE HEADREST, LWR

71705G

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71759F

HOOK, FRONT SEAT BACK, LH

72345K

CAP, SEAT STAND FRAME, LH

72525H

HANDLE, FRONT SEAT BACK LOCK

72526P

HANDLE, RECLINING ADJUSTER RELEASE, LH NO.1

72526Q

HANDLE, RECLINING ADJUSTER RELEASE, LH NO.2

72668K

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3

72668K

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3

9016740044

Крепеж

9016840061

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9356854512

Крепеж

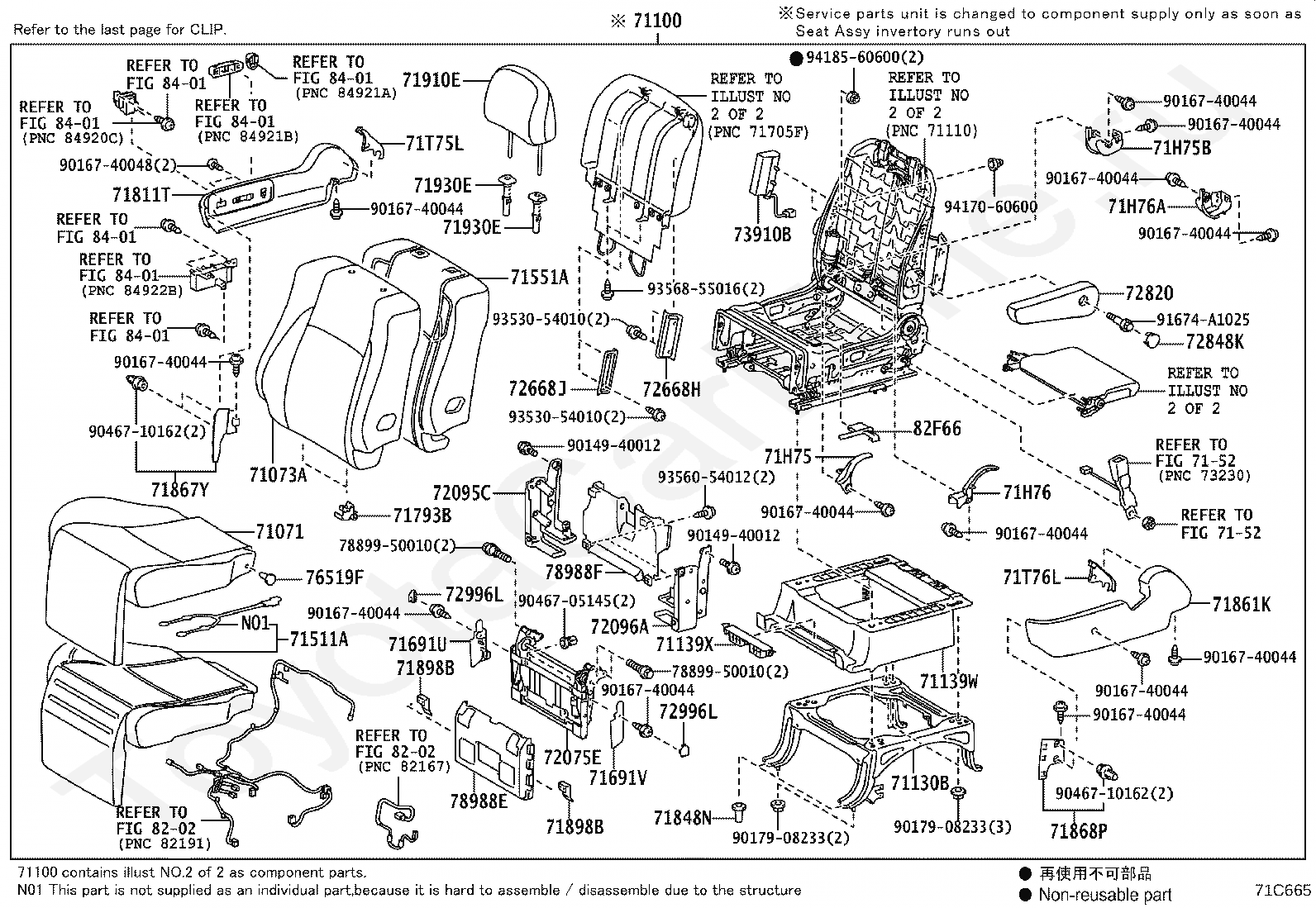

Код

Описание

71071

COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71073A

COVER SUB-ASSY, FRONT SEAT BACK, RH

71100

SEAT ASSY, FRONT RH

71130B

LEG ASSY, FRONT SEAT, RH

71139W

COVER, FRONT SEAT LEG(FOR RH SEAT)

71139X

COVER, FRONT SEAT LEG NO.2

71511A

PAD, FRONT SEAT CUSHION, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71551A

PAD, FRONT SEAT BACK, RH

71691U

COVER, RECLINING ADJUSTER ARM, NO.1

71691V

COVER, RECLINING ADJUSTER ARM, NO.2

71793B

CLIP, FRONT SEAT BACK POCKET

71811T

SHIELD, FRONT SEAT CUSHION, RH

71848N

CAP, FRONT SEAT ADJUSTER COVER, RH NO.1

71861K

SHIELD, FRONT SEAT CUSHION, INNER RH

71867Y

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR RH SEAT)

71868P

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH(FOR RH SEAT)

71898B

HOOK, FRONT SEAT COVER

71898B

HOOK, FRONT SEAT COVER

71910E

HEADREST ASSY, FRONT SEAT, RH

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

71H75

COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)

71H75B

COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK FRAME)

71H76

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

71H76A

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK FRAME)

71T75L

COVER, RECLINING ADJUSTER OUTSIDE, RH

71T76L

COVER, RECLINING ADJUSTER INSIDE, LH

72075E

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER INNER(FOR RH SEAT)

72095C

PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.1

72096A

PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.2

72668H

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.1

72668J

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.2

72820

ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)

72848K

CAP, SEAT ARMREST, NO.1(FOR RH SEAT)

72996L

CAP, RECLINING ADJUSTER ARM COVER

72996L

CAP, RECLINING ADJUSTER ARM COVER

73910B

AIR BAG ASSY, FRONT SEAT, RH

76519F

CLIP, FRONT SEAT CUSHION COVER

7889950010

Крепеж

7889950010

Крепеж

78988E

COVER, FRONT SEAT FOOTREST, NO.1

78988F

COVER, FRONT SEAT FOOTREST, NO.2

8202

переход к группе запчастей

8202

переход к группе запчастей

82F66

HOLDER, CONNECTOR

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9014940012

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740048

Крепеж

9017908233

Крепеж

9017908233

Крепеж

9046705145

Крепеж

9046710162

Крепеж

9046710162

Крепеж

91674A1025

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356054012

Крепеж

9356855016

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

71098B

COVER SUB-ASSY, FRONT SEAT BACK, LOWER RH

71110

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71150B

FRAME ASSY, FRONT SEAT BACK, LOWER RH

71318C

HOOK, FRONT SEAT BACK LOCK

71587K

PROTECTOR, FRONT SEAT BACK EDGE, RH

71587N

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71643B

UNIT, ACTIVE HEADREST, UPR

71644A

UNIT, ACTIVE HEADREST, LWR

71705F

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71759E

HOOK, FRONT SEAT BACK, RH

72345J

CAP, SEAT STAND FRAME, RH

72497G

COVER, VERTICAL ADJUSTER BRACKET, INNER

72498F

COVER, VERTICAL ADJUSTER BRACKET, OUTER

72525H

HANDLE, FRONT SEAT BACK LOCK

72526P

HANDLE, RECLINING ADJUSTER RELEASE, LH NO.1

72526Q

HANDLE, RECLINING ADJUSTER RELEASE, LH NO.2

72668K

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3

72668K

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.3

85821P

MOTOR ASSY, POWER SEAT SLIDE, RH

85821Q

MOTOR ASSY, POWER SEAT RECLINING, RH

9016740044

Крепеж

9016840061

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9356854512

Крепеж

Код

Описание

71071

COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71073A

COVER SUB-ASSY, FRONT SEAT BACK, RH

71130B

LEG ASSY, FRONT SEAT, RH

71139W

COVER, FRONT SEAT LEG(FOR RH SEAT)

71139X

COVER, FRONT SEAT LEG NO.2

71511A

PAD, FRONT SEAT CUSHION, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71551A

PAD, FRONT SEAT BACK, RH

71691U

COVER, RECLINING ADJUSTER ARM, NO.1

71691V

COVER, RECLINING ADJUSTER ARM, NO.2

71793B

CLIP, FRONT SEAT BACK POCKET

71811T

SHIELD, FRONT SEAT CUSHION, RH

71848N

CAP, FRONT SEAT ADJUSTER COVER, RH NO.1

71861K

SHIELD, FRONT SEAT CUSHION, INNER RH

71867Y

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR RH SEAT)

71868P

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH(FOR RH SEAT)

71898B

HOOK, FRONT SEAT COVER

71898B

HOOK, FRONT SEAT COVER

71910E

HEADREST ASSY, FRONT SEAT, RH

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

71H75

COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)

71H75B

COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK FRAME)

71H76

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

71H76A

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK FRAME)

71T75L

COVER, RECLINING ADJUSTER OUTSIDE, RH

71T76L

COVER, RECLINING ADJUSTER INSIDE, LH

72075E

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER INNER(FOR RH SEAT)

72095C

PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.1

72096A

PLATE SUB-ASSY, RECLINING ADJUSTER ARM, NO.2

72668H

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.1

72668J

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.2

72820

ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)

72848K

CAP, SEAT ARMREST, NO.1(FOR RH SEAT)

72996L

CAP, RECLINING ADJUSTER ARM COVER

72996L

CAP, RECLINING ADJUSTER ARM COVER

73910B

AIR BAG ASSY, FRONT SEAT, RH

76519F

CLIP, FRONT SEAT CUSHION COVER

7889950010

Крепеж

7889950010

Крепеж

78988E

COVER, FRONT SEAT FOOTREST, NO.1

78988F

COVER, FRONT SEAT FOOTREST, NO.2

8202

переход к группе запчастей

8202

переход к группе запчастей

82F66

HOLDER, CONNECTOR

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9014940012

Крепеж

9014940012

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740048

Крепеж

9017908233

Крепеж

9017908233

Крепеж

9046705145

Крепеж

9046710162

Крепеж

9046710162

Крепеж

91674A1025

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356054012

Крепеж

9356855016

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

71098B

COVER SUB-ASSY, FRONT SEAT BACK, LOWER RH

71110

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71150B

FRAME ASSY, FRONT SEAT BACK, LOWER RH

71318C

HOOK, FRONT SEAT BACK LOCK

71587K

PROTECTOR, FRONT SEAT BACK EDGE, RH

71587N

PROTECTOR, FRONT SEAT BACK EDGE, NO.2

71643B

UNIT, ACTIVE HEADREST, UPR

71644A

UNIT, ACTIVE HEADREST, LWR

71705F

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71759E

HOOK, FRONT SEAT BACK, RH

72345J

CAP, SEAT STAND FRAME, RH

72497G

COVER, VERTICAL ADJUSTER BRACKET, INNER

72498F

COVER, VERTICAL ADJUSTER BRACKET, OUTER

72525H

HANDLE, FRONT SEAT BACK LOCK

72526P

HANDLE, RECLINING ADJUSTER RELEASE, LH NO.1

72526Q

HANDLE, RECLINING ADJUSTER RELEASE, LH NO.2

72668J

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.2

72668J

BEZEL, FRONT SEAT BACK LOCK, LOWER NO.2

9016740044

Крепеж

9016840061

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9356854512

Крепеж

Код

Описание

71139T

COVER, FRONT SEAT LEG, REAR RH

71139U

COVER, FRONT SEAT LEG, REAR LH

9011910927

Крепеж

9011910927

Крепеж

9011910927

Крепеж

9011910927

Крепеж

Код

Описание

71139T

COVER, FRONT SEAT LEG, REAR RH

71139U

COVER, FRONT SEAT LEG, REAR LH

71A49B

COVER, FRONT SEAT LEG, LH

9011910927

Крепеж

9011910927

Крепеж

9011910927

Крепеж

9011910927

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти ALPHARD/VELLFIRE/HV > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
