Ближний Восток

Модель

ALPHARD/VELLFIRE/HV

VIN

Дата

2021/05

Двигатель

2,5 литра, 16 клапанов DOHC, EFI

Фрейм

AGH30

КПП

вариатор

Опции

правый руль VELLFIRE 7-местный RATIO HIGH EFFICIENCY TWIN CAM 807W

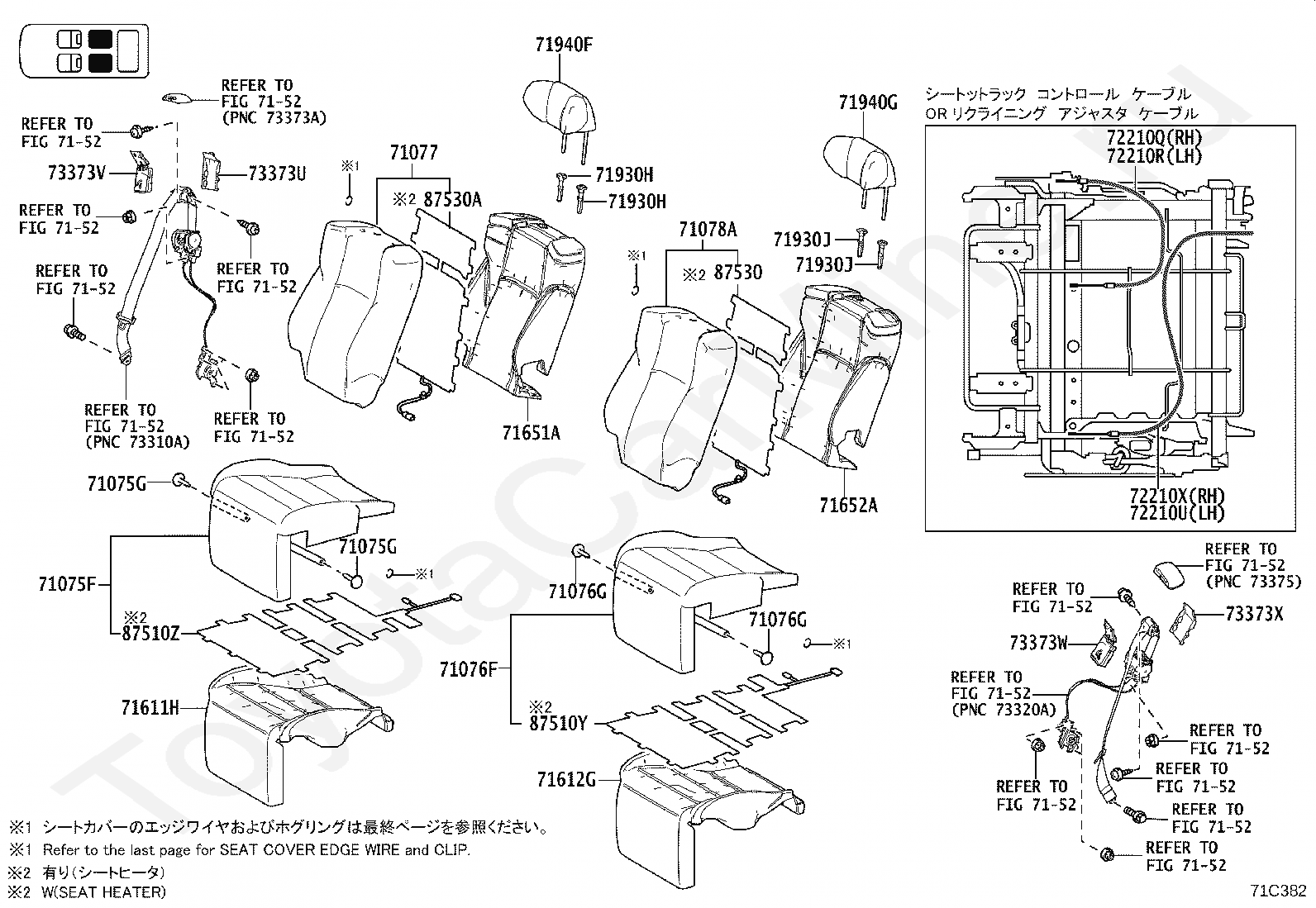

REAR SEAT & SEAT TRACK TOYOTA ALPHARD/VELLFIRE/HV







Код

Описание

71075F

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

71075G

CLIP, NO.1 SEAT CUSHION COVER(FOR RH SEAT)

71075G

CLIP, NO.1 SEAT CUSHION COVER(FOR RH SEAT)

71076F

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

71076G

CLIP, NO.1 SEAT CUSHION COVER(FOR LH SEAT)

71076G

CLIP, NO.1 SEAT CUSHION COVER(FOR LH SEAT)

71077

COVER SUB-ASSY, REAR NO.1 SEAT BACK, RH

71078A

COVER SUB-ASSY, REAR NO.1 SEAT BACK, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71611H

PAD, REAR NO.1 SEAT CUSHION, RH

71612G

PAD, REAR NO.1 SEAT CUSHION, LH

71651A

PAD, REAR NO.1 SEAT BACK, RH

71652A

PAD, REAR NO.1 SEAT BACK, LH

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71940F

HEADREST ASSY, NO.1 SEAT, RH

71940G

HEADREST ASSY, NO.1 SEAT, LH

72210Q

CABLE ASSY, NO.1 SEAT SLIDE, RH

72210R

CABLE ASSY, NO.1 SEAT SLIDE, LH

72210U

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

73373V

COVER, NO.1 SEAT SHOULDER BELT, RH NO.2

73373W

COVER, NO.1 SEAT SHOULDER BELT, LH NO.2

73373X

COVER, NO.1 SEAT SHOULDER BELT, LH NO.1

87510Y

HEATER ASSY, REAR NO.1 SEAT CUSHION, LH

87510Z

HEATER ASSY, REAR NO.1 SEAT CUSHION, RH

87530

HEATER ASSY, REAR NO.1 SEAT BACK, LH

87530A

HEATER ASSY, REAR NO.1 SEAT BACK, RH

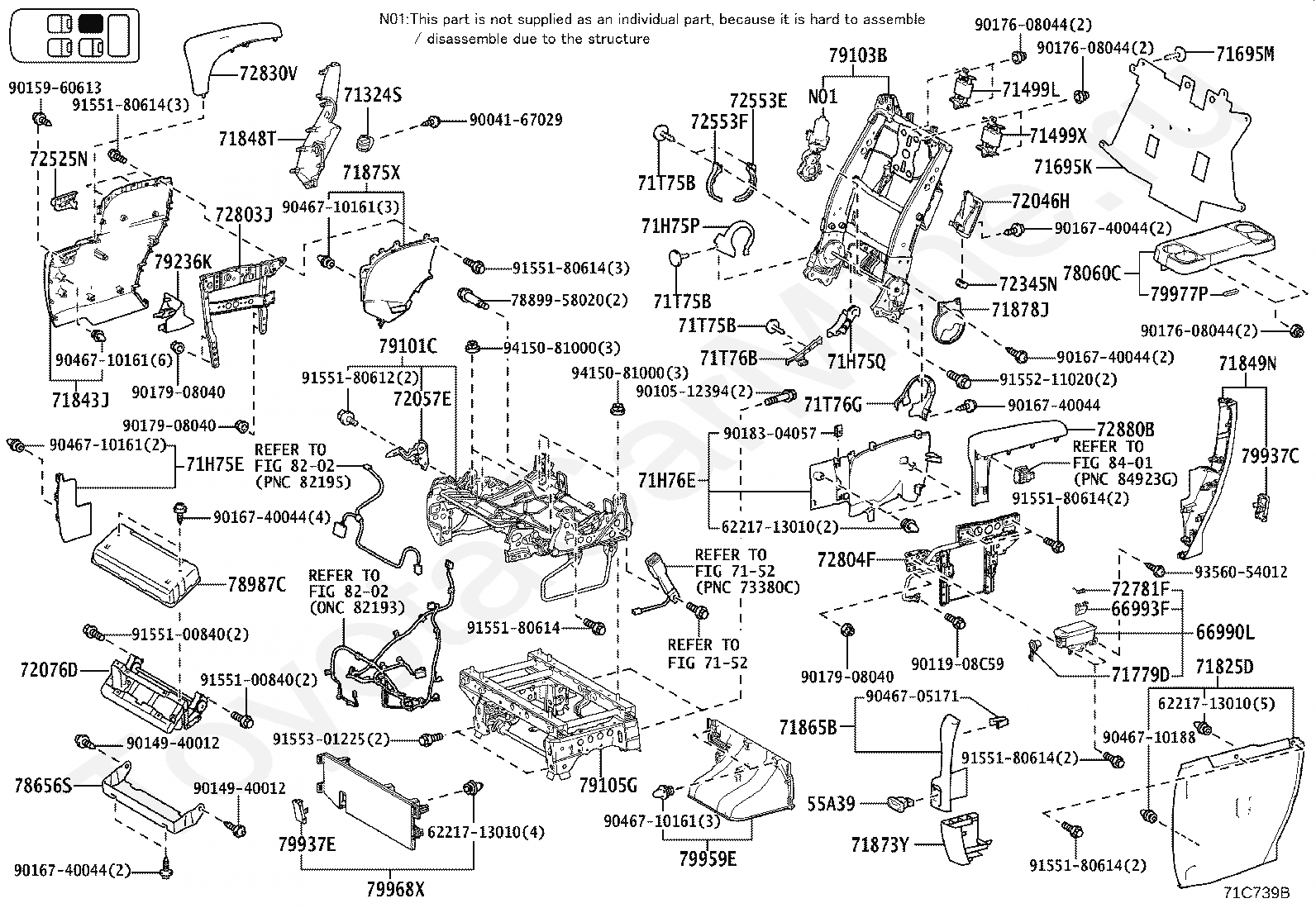

Код

Описание

55A39

COVER, NO.1 SEAT SPARE SWITCH HOLE(FOR RH SEAT)

6221713010

Крепеж

6221713010

Крепеж

6221713010

Крепеж

66990L

HOLDER ASSY, REAR NO.1 SEAT CUP, RH

66993F

PLATE, REAR NO.1 SEAT CUP HOLDER, RH

71324S

CUSHION, REAR NO.1 SEAT, RH

71499L

DAMPER, NO.1 SEAT BACK SPRING, RH

71499X

DAMPER, NO.1 SEAT BACK SPRING, RH NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

71695K

PROTECTOR, NO.1 SEAT BACK, RH

71695M

CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 RH

71779D

PLATE, REAR SEAT(FOR RH SEAT)

71825D

MOULDING, REAR NO.1 SEAT CUSHION, RH

71843J

COVER, REAR NO.1 SEAT RECLINING, NO.2 RH

71848T

CAP, NO.1 SEAT ADJUSTER COVER, RH

71849N

CAP, NO.1 SEAT ADJUSTER COVER, LH(FOR RH SEAT)

71865B

BEZEL, REAR NO.1 SEAT COVER, NO.1(FOR RH SEAT)

71873Y

SHIELD, REAR SEAT CUSHION, LOWER

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71H75E

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH SEAT)

71H75P

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT BACK)

71H75Q

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT BACK)

71H76E

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH SEAT)

71T75B

CLIP, RECLINING ADJUSTER INSIDE COVER, RH

71T75B

CLIP, RECLINING ADJUSTER INSIDE COVER, RH

71T75B

CLIP, RECLINING ADJUSTER INSIDE COVER, RH

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

71T76G

COVER, RECLINING ADJUSTER INSIDE, LH

72046H

COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.1(FOR RH SEAT)

72057E

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

72076D

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER INNER(FOR RH SEAT)

72345N

CAP, SEAT STAND FRAME, RH NO.1

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72553E

PROTECTOR, RECLINING COVER, RH NO.1

72553F

PROTECTOR, RECLINING COVER, RH NO.2

72781F

SPRING, REAR NO.1 SEAT PLATE, RH

72803J

FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, RH(FOR RH SEAT)

72804F

FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, LH(FOR RH SEAT)

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72880B

ARMREST ASSY, NO.1 SEAT, C RH(FOR RH SEAT)

78060C

TABLE ASSY, NO.1 SEAT SIDE

78656S

COVER, NO.1 SEAT LEGREST(FOR RH SEAT)

7889958020

Крепеж

78987C

COVER, REAR NO.1 SEAT FOOTREST, NO.1 RH

79101C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79236K

COVER, NO.1 SEAT LEG, NO.1

79937C

COVER, NO.1 SEAT LEG, NO.1(FOR RH SEAT)

79937E

COVER, NO.1 SEAT LEG, NO.2(FOR RH SEAT)

79959E

COVER, NO.1 SEAT LEG, RH

79968X

COVER, REAR NO.1 SEAT LEG SIDE, NO.5(FOR RH SEAT)

79977P

FELT, REAR SEAT SIDE TABLE

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

9004167029

Крепеж

9010512394

Крепеж

9011908C59

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9015960613

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9018304057

Крепеж

9046705171

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9046710188

Крепеж

9155100840

Крепеж

9155100840

Крепеж

9155180612

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155211020

Крепеж

9155301225

Крепеж

9356054012

Крепеж

9415081000

Крепеж

9415081000

Крепеж

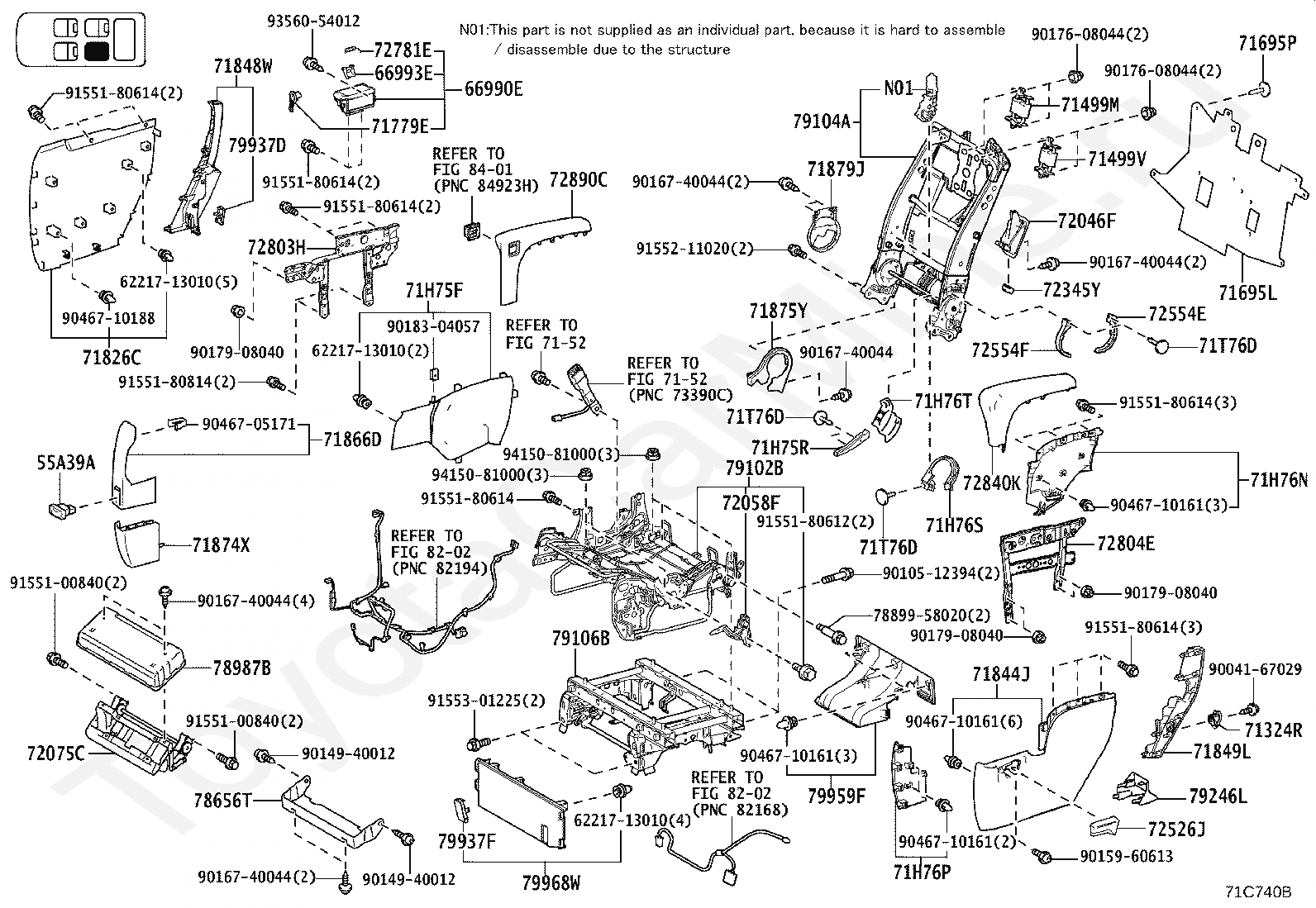

Код

Описание

55A39A

COVER, NO.1 SEAT SPARE SWITCH HOLE(FOR LH SEAT)

6221713010

Крепеж

6221713010

Крепеж

6221713010

Крепеж

66990E

HOLDER ASSY, REAR NO.1 SEAT CUP, LH

66993E

PLATE, REAR NO.1 SEAT CUP HOLDER, LH

71324R

CUSHION, REAR NO.1 SEAT, LH

71499M

DAMPER, NO.1 SEAT BACK SPRING, LH

71499V

DAMPER, NO.1 SEAT BACK SPRING, LH NO.2

7152

переход к группе запчастей

7152

переход к группе запчастей

71695L

PROTECTOR, NO.1 SEAT BACK, LH

71695P

CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 LH

71779E

PLATE, REAR SEAT(FOR LH SEAT)

71826C

MOULDING, REAR SEAT CUSHION, LH

71844J

COVER, REAR NO.1 SEAT RECLINING, NO.2 LH

71848W

CAP, NO.1 SEAT ADJUSTER COVER, RH(FOR LH SEAT)

71849L

CAP, NO.1 SEAT ADJUSTER COVER, LH

71866D

BEZEL, REAR NO.1 SEAT COVER, NO.2(FOR LH SEAT)

71874X

SHIELD, REAR SEAT CUSHION, LOWER LH

71875Y

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT BACK)

71879J

COVER, REAR NO.1 SEAT RECLINING, INNER LH

71H75F

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH SEAT)

71H75R

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

71H76P

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT)

71H76S

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT BACK)

71H76T

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT BACK)

71T76D

CLIP, RECLINING ADJUSTER INSIDE COVER, LH

71T76D

CLIP, RECLINING ADJUSTER INSIDE COVER, LH

71T76D

CLIP, RECLINING ADJUSTER INSIDE COVER, LH

72046F

COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.1(FOR LH SEAT)

72058F

LEVER SUB-ASSY, NO.1 SEAT LOCK CONTROL, LH

72075C

ARM SUB-ASSY, RECLINING ADJUSTER, LOWER INNER(FOR LH SEAT)

72345Y

CAP, NO.1 SEAT STAND FRAME, NO.1(FOR LH SEAT)

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72554E

PROTECTOR, RECLINING COVER, LH NO.1

72554F

PROTECTOR, RECLINING COVER, LH NO.2

72781E

SPRING, REAR NO.1 SEAT PLATE, LH

72803H

FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, RH(FOR LH SEAT)

72804E

FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, LH(FOR LH SEAT)

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72890C

ARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT)

78656T

COVER, NO.1 SEAT LEGREST(FOR LH SEAT)

7889958020

Крепеж

78987B

COVER, REAR NO.1 SEAT FOOTREST, NO.1 LH

79102B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79246L

COVER, NO.1 SEAT LEG, NO.2

79937D

COVER, NO.1 SEAT LEG, NO.1(FOR LH SEAT)

79937F

COVER, NO.1 SEAT LEG, NO.2(FOR LH SEAT)

79959F

COVER, NO.1 SEAT LEG, LH

79968W

COVER, REAR NO.1 SEAT LEG SIDE, NO.5(FOR LH SEAT)

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

9004167029

Крепеж

9010512394

Крепеж

9014940012

Крепеж

9014940012

Крепеж

9015960613

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9017908040

Крепеж

9018304057

Крепеж

9046705171

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9046710161

Крепеж

9046710188

Крепеж

9155100840

Крепеж

9155100840

Крепеж

9155180612

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180614

Крепеж

9155180814

Крепеж

9155211020

Крепеж

9155301225

Крепеж

9356054012

Крепеж

9415081000

Крепеж

9415081000

Крепеж

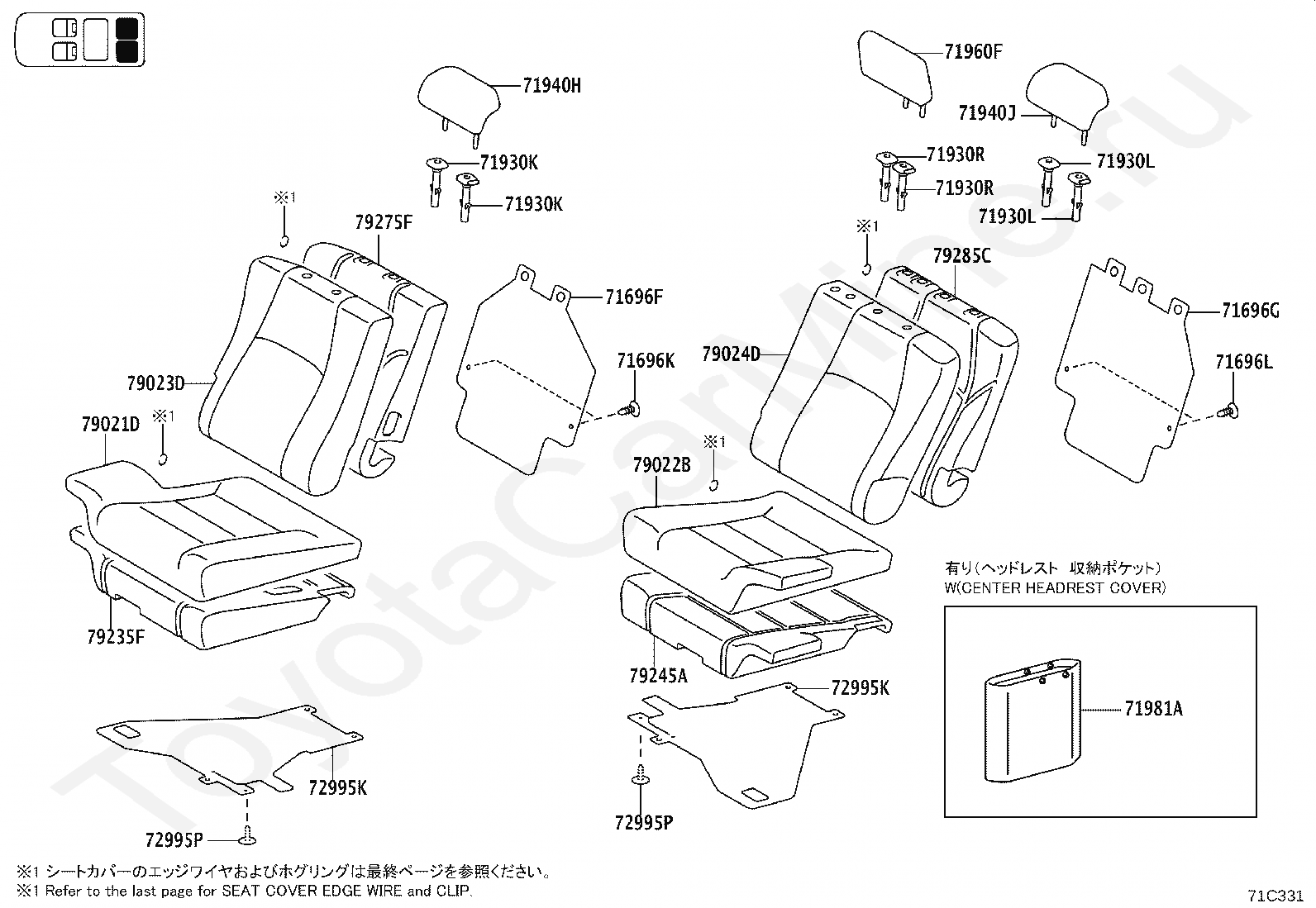

Код

Описание

71696F

PROTECTOR, NO.2 SEAT BACK, RH

71696G

PROTECTOR, NO.2 SEAT BACK, LH

71696K

CLIP, NO.2 SEAT BACK PROTECTOR, RH NO.1

71696L

CLIP, NO.2 SEAT BACK PROTECTOR, LH NO.1

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71940H

HEADREST ASSY, NO.2 SEAT, RH

71940J

HEADREST ASSY, NO.2 SEAT, LH

71960F

HEADREST ASSY, REAR NO.2 SEAT, CENTER

71981A

COVER, NO.2 SEAT HEADREST

72995K

COVER, REAR NO.2 SEAT CUSHION

72995K

COVER, REAR NO.2 SEAT CUSHION

72995P

CLIP, REAR SEAT CUSHION COVER

72995P

CLIP, REAR SEAT CUSHION COVER

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79235F

PAD, NO.2 SEAT CUSHION, RH

79245A

PAD, NO.2 SEAT CUSHION, LH

79275F

PAD, NO.2 SEAT BACK, RH

79285C

PAD, NO.2 SEAT BACK, LH

Код

Описание

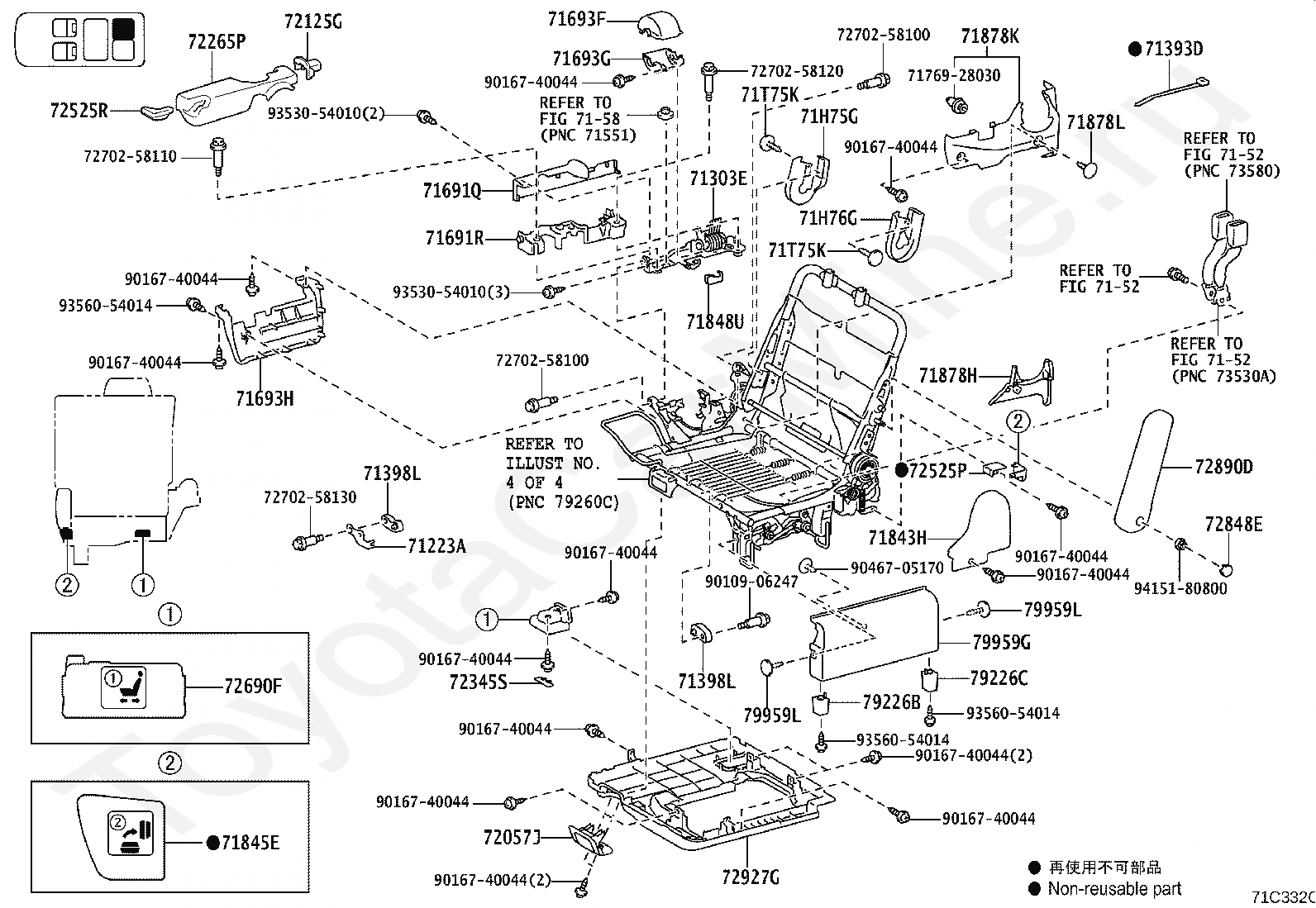

71223A

BRACKET, NO.2 SEAT CUSHION SIDE, RH

71303E

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

71393D

BAND, NO.2 SEAT CUSHION, RH NO.2

71398L

GUIDE, NO.2 SEAT CUSHION SUPPORT, RH

71398L

GUIDE, NO.2 SEAT CUSHION SUPPORT, RH

7152

переход к группе запчастей

71691Q

COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH

71691R

COVER, REAR NO.2 SEAT LOCK, UPPER NO.2 RH

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71693G

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.2

71693H

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.3

7176928030

Крепеж

71843H

COVER, NO.2 SEAT RECLINING, NO.2 RH INNER

71845E

CAP, REAR NO.2 SEAT COVER, RH

71848U

CAP, NO.2 SEAT ADJUSTER COVER, RH

71878H

COVER, REAR SEAT RECLINING, INNER RH

71878K

COVER, REAR NO.2 SEAT RECLINING, INNER RH

71878L

CLIP, REAR NO.2 SEAT RECLINING COVER, RH

71H75G

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 RH SEAT)

71H76G

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 RH SEAT)

71T75K

CLIP, RECLINING ADJUSTER INSIDE COVER(FOR REAR NO.2 RH SEAT)

71T75K

CLIP, RECLINING ADJUSTER INSIDE COVER(FOR REAR NO.2 RH SEAT)

72057J

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL(FOR RH SEAT)

72125G

COVER, SEAT TRACK LOCK PLATE, NO.1

72265P

COVER, SEAT TRACK UPPER RAIL, RH

72345S

CAP, NO.2 SEAT STAND FRAME, RH

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

72525R

HANDLE, RECLINING ADJUSTER RELEASE, RH

72690F

LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, RH

7270258100

Крепеж

7270258100

Крепеж

7270258110

Крепеж

7270258120

Крепеж

7270258130

Крепеж

72848E

CAP, NO.2 SEAT ARMREST, NO.1 RH

72890D

ARMREST ASSY, NO.2 SEAT, C LH(FOR RH SEAT)

72927G

COVER, REAR NO.2 SEAT CUSHION UNDER, RH

79226B

STOPPER, NO.2 SEAT CUSHION, RH FRONT

79226C

STOPPER, NO.2 SEAT CUSHION, RH REAR

79959G

COVER, NO.2 SEAT LEG, RH NO.1

79959L

CLIP, NO.2 SEAT LEG COVER, RH

79959L

CLIP, NO.2 SEAT LEG COVER, RH

9010906247

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9046705170

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9415180800

Крепеж

Код

Описание

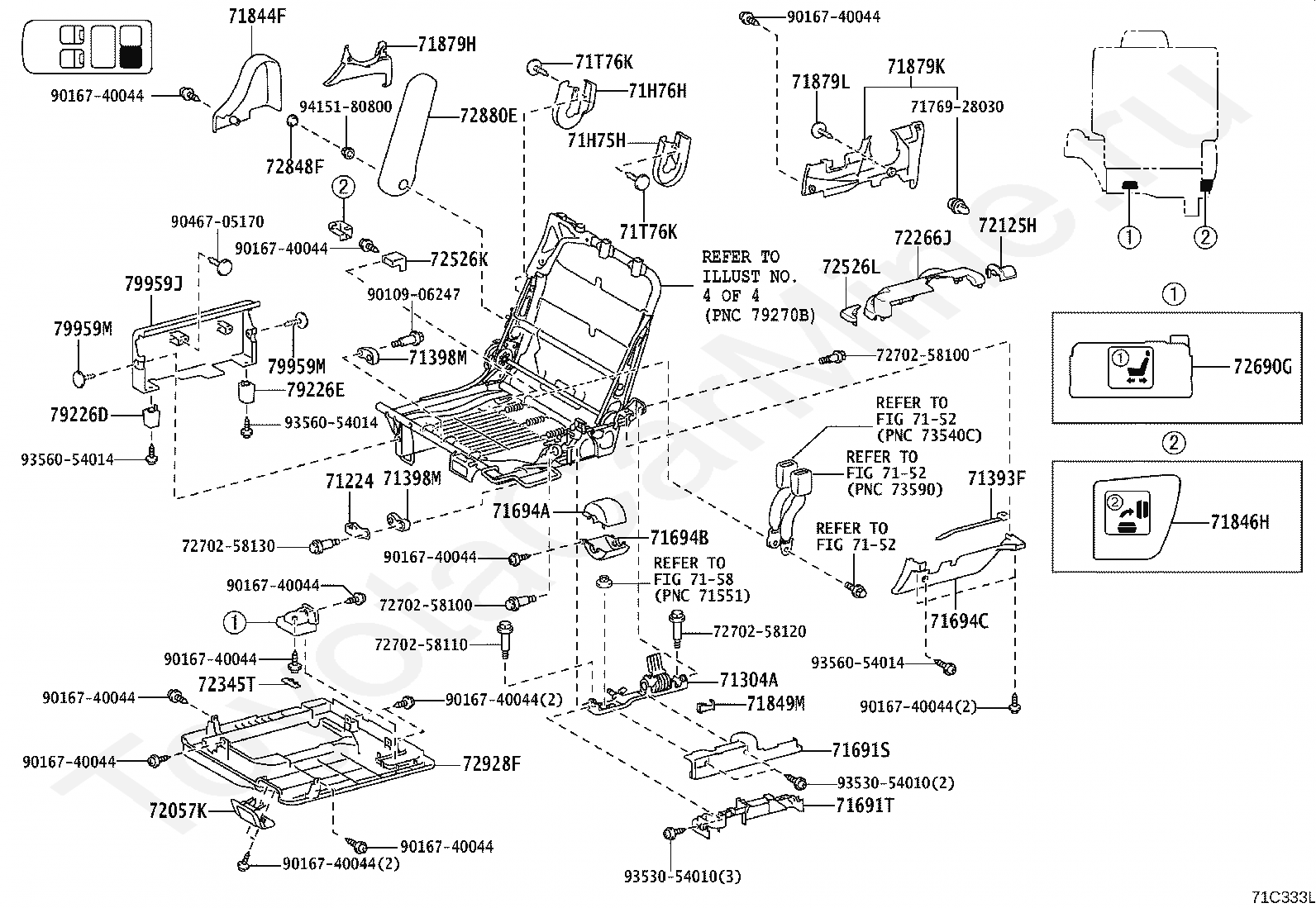

71224

BRACKET, NO.2 SEAT CUSHION SIDE, LH

71304A

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71393F

BAND, NO.2 SEAT CUSHION, LH NO.2

71398M

GUIDE, NO.2 SEAT CUSHION SUPPORT, LH

71398M

GUIDE, NO.2 SEAT CUSHION SUPPORT, LH

71691S

COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 LH

71691T

COVER, REAR NO.2 SEAT LOCK, UPPER NO.2 LH

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71694B

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.2

71694C

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.3

7176928030

Крепеж

71844F

COVER, NO.2 SEAT RECLINING, NO.2 LH INNER

71846H

CAP, REAR NO.2 SEAT COVER, LH

71849M

CAP, NO.2 SEAT ADJUSTER COVER, LH

71879H

COVER, REAR SEAT RECLINING, INNER LH

71879K

COVER, REAR NO.2 SEAT RECLINING, INNER LH

71879L

CLIP, REAR NO.2 SEAT RECLINING COVER, LH

71H75H

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 LH SEAT)

71H76H

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH SEAT)

71T76K

CLIP, RECLINING ADJUSTER INSIDE COVER(FOR REAR NO.2 LH SEAT)

71T76K

CLIP, RECLINING ADJUSTER INSIDE COVER(FOR REAR NO.2 LH SEAT)

72057K

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL(FOR LH SEAT)

72125H

COVER, SEAT TRACK LOCK PLATE, NO.2

72266J

COVER, SEAT TRACK UPPER RAIL, LH

72345T

CAP, NO.2 SEAT STAND FRAME, LH

72526K

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH

72526L

HANDLE, RECLINING ADJUSTER RELEASE, LH

72690G

LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, LH

7270258100

Крепеж

7270258100

Крепеж

7270258110

Крепеж

7270258120

Крепеж

7270258130

Крепеж

72848F

CAP, NO.2 SEAT ARMREST, NO.1 LH

72880E

ARMREST ASSY, NO.2 SEAT, C RH(FOR LH SEAT)

72928F

COVER, REAR NO.2 SEAT CUSHION UNDER, LH

79226D

STOPPER, NO.2 SEAT CUSHION, LH FRONT

79226E

STOPPER, NO.2 SEAT CUSHION, LH REAR

79959J

COVER, NO.2 SEAT LEG, LH NO.1

79959M

CLIP, NO.2 SEAT LEG COVER, LH

79959M

CLIP, NO.2 SEAT LEG COVER, LH

9010906247

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9046705170

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9415180800

Крепеж

Код

Описание

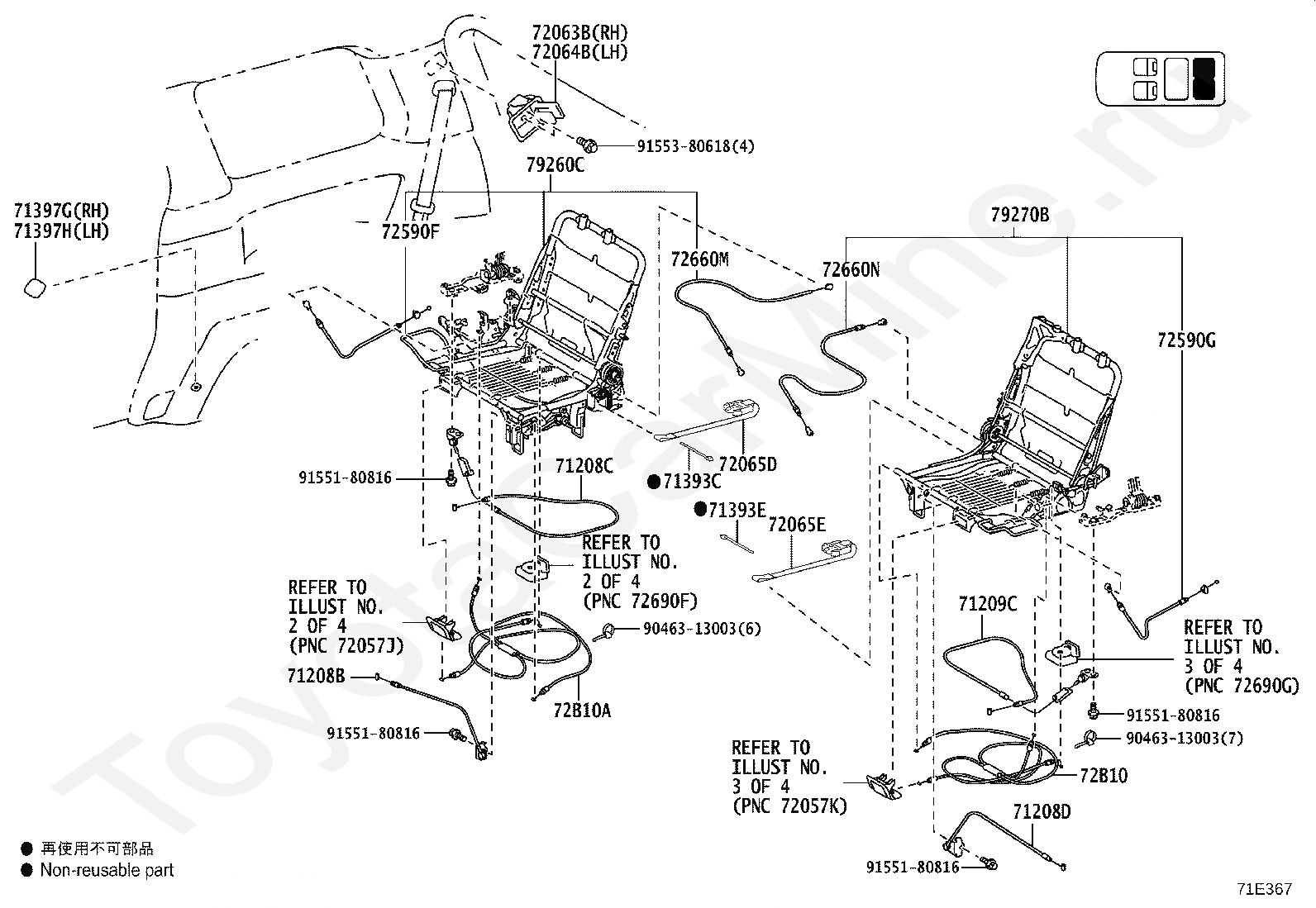

71208B

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1

71208C

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.2

71208D

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1

71209C

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.2

71393C

BAND, NO.2 SEAT CUSHION, RH NO.1

71393E

BAND, NO.2 SEAT CUSHION, LH NO.1

71397G

STOPPER, REAR SEAT, RH

71397H

STOPPER, REAR SEAT, LH

72063B

HOOK SUB-ASSY, REAR SEAT, RH

72064B

HOOK SUB-ASSY, REAR SEAT, LH

72065D

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

72065E

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72590F

CABLE ASSY, RECLINING REMOTE CONTROL, RH

72590G

CABLE ASSY, RECLINING REMOTE CONTROL, LH

72660M

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

72660N

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72B10

CABLE ASSY, REAR NO.2 SEAT TRACK CONTROL(FOR LH SEAT)

72B10A

CABLE ASSY, REAR NO.2 SEAT TRACK CONTROL(FOR RH SEAT)

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

9046313003

Крепеж

9046313003

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9155380618

Крепеж

Код

Описание

7114930050

Крепеж

7122758010

Крепеж

7122758020

Крепеж

9046816019

Крепеж

9046818008

Крепеж

> Запчасти ALPHARD/VELLFIRE/HV > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
