Япония

Модель

ALPHARD/VELLFIRE/HV

VIN

Дата

2011/10

Двигатель

3,5 литра, 24 клапана, DOHC, EFI

Класс

3.5Z TYPE

Фрейм

GGH20

КПП

АКПП, 6 скоростей

Опции

VELLFIRE 8-местный 544W

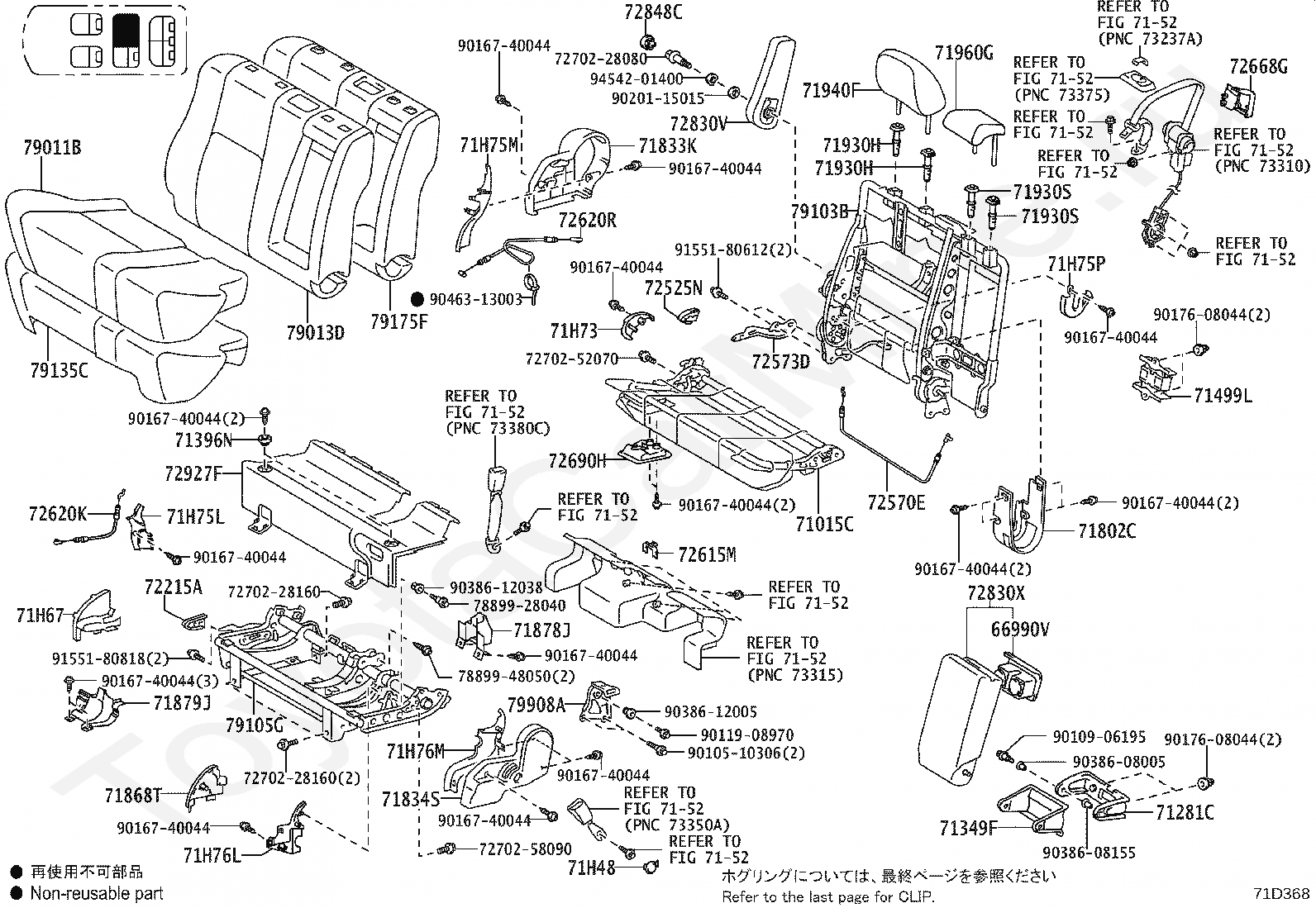

REAR SEAT & SEAT TRACK TOYOTA ALPHARD/VELLFIRE/HV







Код

Описание

66990V

HOLDER ASSY, CUP

71015C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

71281C

HINGE, NO.1 SEAT CENTER ARMREST

71349F

COVER, NO.1 SEAT BACK HINGE, RH

71396N

CUSHION, NO.1 SEAT SUPPORT, REAR(FOR RH SEAT)

71499L

DAMPER, NO.1 SEAT BACK SPRING, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71802C

COVER SUB-ASSY, RECLINING ADJUSTER, LH

71833K

COVER, NO.1 SEAT RECLINING, NO.1 RH OUTER

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71868T

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71879J

COVER, REAR NO.1 SEAT RECLINING, INNER LH

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71930S

SUPPORT ASSY, REAR NO.1 SEAT HEADREST, CENTER

71930S

SUPPORT ASSY, REAR NO.1 SEAT HEADREST, CENTER

71940F

HEADREST ASSY, NO.1 SEAT, RH

71960G

HEADREST ASSY, REAR NO.1 SEAT, CENTER

71H48

CAP, SEAT ADJUSTER COVER, RH NO.1

71H67

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

71H73

SHIELD, REAR SEAT CUSHION, LOWER RH

71H75L

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

71H75M

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT)

71H75P

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT BACK)

71H76L

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)

71H76M

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT)

72215A

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72573D

LEVER, NO.1 SEAT RECLINING CONTROL, RH

72615M

COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT)

72620K

CABLE ASSY, NO.1 SEAT WALK-IN, RH

72620R

CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)

72668G

BEZEL, NO.1 SEAT BACK LOCK, LOWER(FOR RH SEAT)

72690H

LEVER ASSY, NO.1 SEAT CUSHION LOCK RELEASE, RH

7270228080

Крепеж

7270228160

Крепеж

7270228160

Крепеж

7270252070

Крепеж

7270258090

Крепеж

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72830X

ARMREST ASSY, REAR SEAT, CENTER

72848C

CAP, NO.1 SEAT ARMREST, NO.1 RH

72927F

COVER, REAR SEAT CUSHION UNDER, RH

7889928040

Крепеж

7889948050

Крепеж

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

79908A

PLATE SUB-ASSY, SEAT HINGE, LH

9010510306

Крепеж

9010906195

Крепеж

9011908970

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017608044

Крепеж

9020115015

Крепеж

9038608005

Крепеж

9038608155

Крепеж

9038612005

Крепеж

9038612038

Крепеж

9046313003

Крепеж

9155180612

Крепеж

9155180818

Крепеж

9454201400

Крепеж

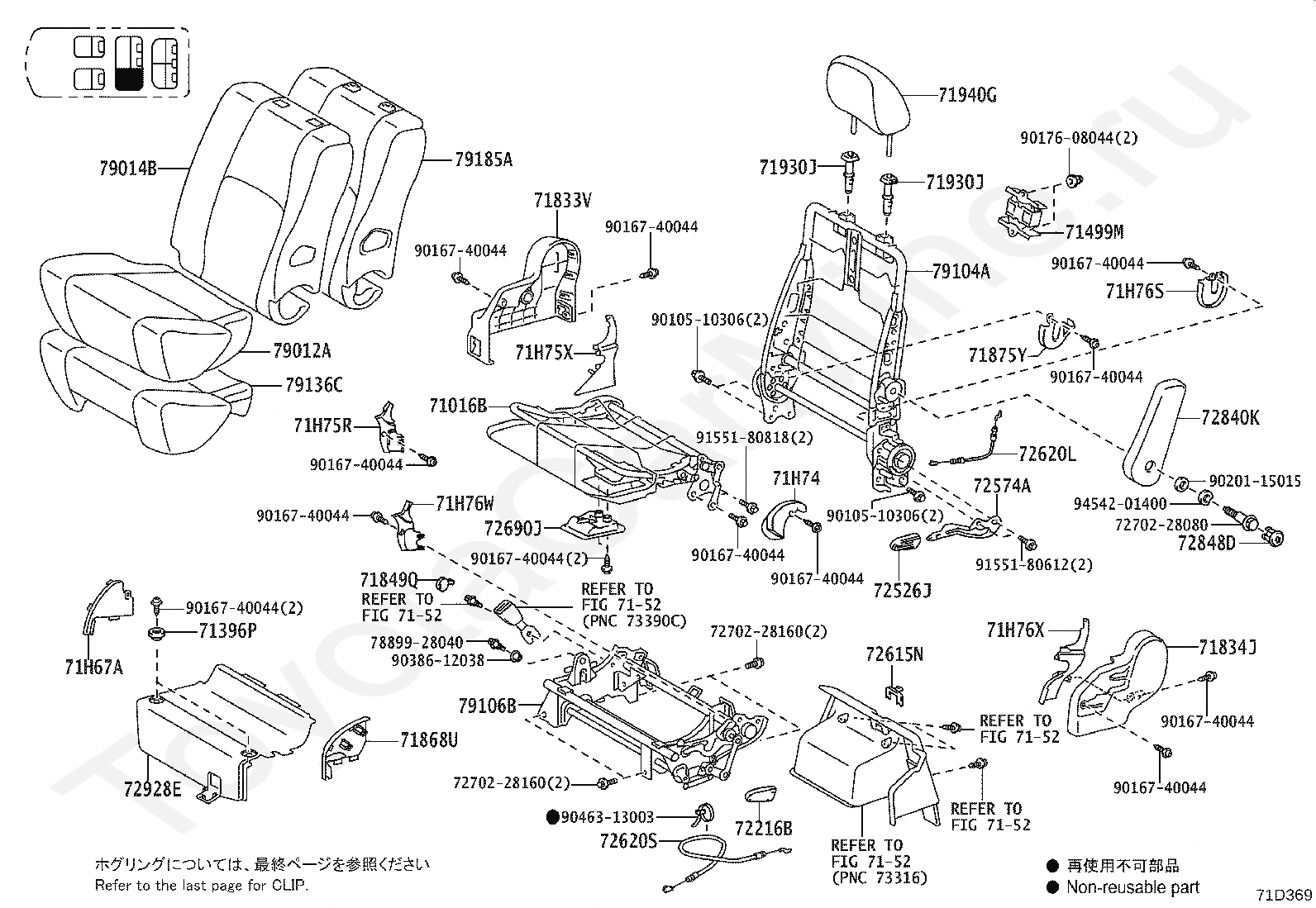

Код

Описание

71016B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

71396P

CUSHION, NO.1 SEAT SUPPORT, REAR(FOR LH SEAT)

71499M

DAMPER, NO.1 SEAT BACK SPRING, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834J

COVER, NO.1 SEAT RECLINING, NO.1 LH OUTER

71849Q

CAP, SEAT ADJUSTER COVER, LH NO.1

71868U

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (FOR LH SEAT)

71875Y

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT BACK)

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71940G

HEADREST ASSY, NO.1 SEAT, LH

71H67A

SHIELD, NO.1 SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT)

71H74

SHIELD, REAR SEAT CUSHION, LOWER LH

71H75R

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)

71H75X

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR LH SEAT)

71H76S

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT BACK)

71H76W

COVER, RECLINING ADJUSTER INSIDE, LH NO.5(FOR LH SEAT)

71H76X

COVER, RECLINING ADJUSTER INSIDE, LH NO.6(FOR LH SEAT)

72216B

LEVER, NO.1 SEAT TRACK HANDLE CONTROL, LH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72574A

LEVER, RECLINING CONTROL, LH

72615N

COVER, NO.1 SEAT BACK LOCK STRIKER(FOR LH SEAT)

72620L

CABLE ASSY, NO.1 SEAT WALK-IN, LH

72620S

CABLE ASSY, REAR NO.1 SEAT LOCK(FOR LH SEAT)

72690J

LEVER ASSY, NO.1 SEAT CUSHION LOCK RELEASE, LH

7270228080

Крепеж

7270228160

Крепеж

7270228160

Крепеж

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72848D

CAP, NO.1 SEAT ARMREST, NO.1 LH

72928E

COVER, REAR SEAT CUSHION UNDER, LH

7889928040

Крепеж

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

9010510306

Крепеж

9010510306

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9020115015

Крепеж

9038612038

Крепеж

9046313003

Крепеж

9155180612

Крепеж

9155180818

Крепеж

9454201400

Крепеж

Код

Описание

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71940H

HEADREST ASSY, NO.2 SEAT, RH

71940J

HEADREST ASSY, NO.2 SEAT, LH

71960F

HEADREST ASSY, REAR NO.2 SEAT, CENTER

72848E

CAP, NO.2 SEAT ARMREST, NO.1 RH

72848F

CAP, NO.2 SEAT ARMREST, NO.1 LH

72880E

ARMREST ASSY, NO.2 SEAT, C RH(FOR LH SEAT)

72890D

ARMREST ASSY, NO.2 SEAT, C LH(FOR RH SEAT)

72995K

COVER, REAR NO.2 SEAT CUSHION

72995K

COVER, REAR NO.2 SEAT CUSHION

72995P

CLIP, REAR SEAT CUSHION COVER

72995P

CLIP, REAR SEAT CUSHION COVER

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79235F

PAD, NO.2 SEAT CUSHION, RH

79245A

PAD, NO.2 SEAT CUSHION, LH

79275F

PAD, NO.2 SEAT BACK, RH

79285C

PAD, NO.2 SEAT BACK, LH

9415180800

Крепеж

9415180800

Крепеж

Код

Описание

71208B

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1

71208C

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.2

71223A

BRACKET, NO.2 SEAT CUSHION SIDE, RH

71303E

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

71393C

BAND, NO.2 SEAT CUSHION, RH NO.1

71393D

BAND, NO.2 SEAT CUSHION, RH NO.2

71398L

GUIDE, NO.2 SEAT CUSHION SUPPORT, RH

71398N

GUIDE, NO.2 SEAT CUSHION SUPPORT, RH NO.2

7152

переход к группе запчастей

71691Q

COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH

71691R

COVER, REAR NO.2 SEAT LOCK, UPPER NO.2 RH

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71693G

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.2

71693H

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.3

71693K

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.4

71769N

CLIP, REAR SEAT COVER, RH

71843H

COVER, NO.2 SEAT RECLINING, NO.2 RH INNER

71848U

CAP, NO.2 SEAT ADJUSTER COVER, RH

71878H

COVER, REAR SEAT RECLINING, INNER RH

71878K

COVER, REAR NO.2 SEAT RECLINING, INNER RH

72057E

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

72065D

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

72125G

COVER, SEAT TRACK LOCK PLATE, NO.1

72210S

CABLE ASSY, NO.2 SEAT SLIDE, RH

72265P

COVER, SEAT TRACK UPPER RAIL, RH

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

72551N

COVER, RECLINING HINGE, RH NO.2(FOR RH SEAT)

72552L

COVER, RECLINING HINGE, LH NO.2(FOR RH SEAT)

72590F

CABLE ASSY, RECLINING REMOTE CONTROL, RH

72660M

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

72690F

LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, RH

7270258100

Крепеж

7270258100

Крепеж

7270258110

Крепеж

7270258120

Крепеж

7270258130

Крепеж

72927G

COVER, REAR NO.2 SEAT CUSHION UNDER, RH

79226B

STOPPER, NO.2 SEAT CUSHION, RH FRONT

79226C

STOPPER, NO.2 SEAT CUSHION, RH REAR

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79959G

COVER, NO.2 SEAT LEG, RH NO.1

79959L

CLIP, NO.2 SEAT LEG COVER, RH

79959L

CLIP, NO.2 SEAT LEG COVER, RH

9010906247

Крепеж

9010906247

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9020615002

Крепеж

9020615002

Крепеж

9046313003

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

Код

Описание

71208D

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1

71209C

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.2

71304A

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71393E

BAND, NO.2 SEAT CUSHION, LH NO.1

71393F

BAND, NO.2 SEAT CUSHION, LH NO.2

71398M

GUIDE, NO.2 SEAT CUSHION SUPPORT, LH

71398P

GUIDE, NO.2 SEAT CUSHION SUPPORT, LH NO.2

7152

переход к группе запчастей

71691S

COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 LH

71691T

COVER, REAR NO.2 SEAT LOCK, UPPER NO.2 LH

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71694B

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.2

71694C

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.3

71694F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.4

71769P

CLIP, REAR SEAT COVER, LH

71769P

CLIP, REAR SEAT COVER, LH

71844F

COVER, NO.2 SEAT RECLINING, NO.2 LH INNER

71849M

CAP, NO.2 SEAT ADJUSTER COVER, LH

71879H

COVER, REAR SEAT RECLINING, INNER LH

71879K

COVER, REAR NO.2 SEAT RECLINING, INNER LH

72057G

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1

72065E

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72125H

COVER, SEAT TRACK LOCK PLATE, NO.2

72210T

CABLE ASSY, NO.2 SEAT SLIDE, LH

72266J

COVER, SEAT TRACK UPPER RAIL, LH

72526K

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH

72551S

COVER, RECLINING HINGE, RH NO.2(FOR LH SEAT)

72552Q

COVER, RECLINING HINGE, LH NO.2(FOR LH SEAT)

72590G

CABLE ASSY, RECLINING REMOTE CONTROL, LH

72660N

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72690G

LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, LH

7270258100

Крепеж

7270258100

Крепеж

7270258110

Крепеж

7270258120

Крепеж

72928F

COVER, REAR NO.2 SEAT CUSHION UNDER, LH

79226D

STOPPER, NO.2 SEAT CUSHION, LH FRONT

79226E

STOPPER, NO.2 SEAT CUSHION, LH REAR

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

79959J

COVER, NO.2 SEAT LEG, LH NO.1

79959M

CLIP, NO.2 SEAT LEG COVER, LH

79959M

CLIP, NO.2 SEAT LEG COVER, LH

9010906247

Крепеж

9010906247

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9020615002

Крепеж

9020615002

Крепеж

9046313003

Крепеж

9155180816

Крепеж

9155180816

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356054014

Крепеж

9356054014

Крепеж

Код

Описание

6451

переход к группе запчастей

72063B

HOOK SUB-ASSY, REAR SEAT, RH

72064B

HOOK SUB-ASSY, REAR SEAT, LH

9155380618

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

> Запчасти ALPHARD/VELLFIRE/HV > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
