Япония

Модель

ALPHARD G/V

VIN

Дата

2002/05

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

аналоговый спидометр

Фрейм

ANH15

КПП

АКПП, 4 ступени

Опции

8-местный 229W

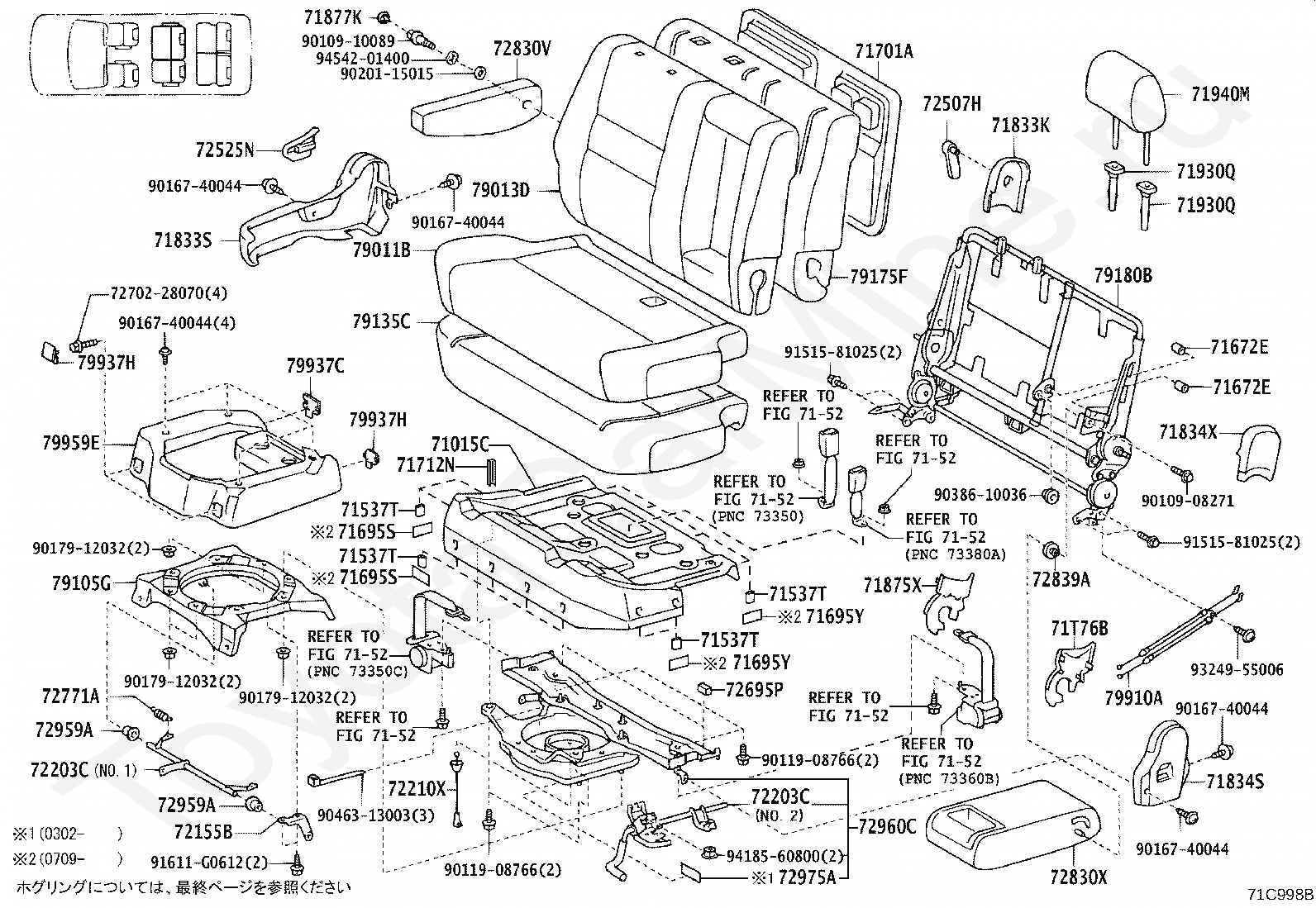

REAR SEAT & SEAT TRACK TOYOTA ALPHARD G/V







Код

Описание

71015C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71672E

SILENCER, REAR SEAT BACK, RH

71672E

SILENCER, REAR SEAT BACK, RH

71695S

PROTECTOR, REAR SEAT, NO.1

71695S

PROTECTOR, REAR SEAT, NO.1

71701A

BOARD SUB-ASSY, REAR SEAT BACK, RH

71712N

COVER, SIDE SEAT CUSHION, REAR

71833K

COVER, NO.1 SEAT RECLINING, NO.1 RH OUTER

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71834X

COVER, REAR SEAT RECLINING, NO.2 LH

71875X

COVER, RECLINING ADJUSTER INSIDE, RH

71877K

COVER, REAR SEAT ARMREST HOLE RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76B

COVER, RECLINING ADJUSTER INSIDE, LH

72155B

BRACKET, SEAT TRACK HANDLE SUPPORT

72203C

HANDLE SUB-ASSY, REAR SEAT TRACK, RH

72203C

HANDLE SUB-ASSY, REAR SEAT TRACK, RH

72210X

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH

72507H

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72695P

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

7270228070

Крепеж

72771A

SPRING, REAR SEAT TURN NO.1

72830V

ARMREST ASSY, REAR NO.1 SEAT, RH

72830X

ARMREST ASSY, REAR SEAT, CENTER

72839A

SHIM, REAR SEAT ARMREST HINGE

72959A

SPACER, REAR SEAT TURN SIDE

72959A

SPACER, REAR SEAT TURN SIDE

72960C

TABLE ASSY, NO.1 SEAT TURN, RH

72975A

PROTECTOR, REAR SEAT TURN PLATE

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

79180B

SPRING ASSY, NO.1 SEAT BACK, RH

79910A

CABLE ASSY, REAR SEAT TURN, NO.1

79937C

COVER, NO.1 SEAT LEG, NO.1(FOR RH SEAT)

79937H

COVER, REAR SEAT LEG, NO.2

79937H

COVER, REAR SEAT LEG, NO.2

79959E

COVER, NO.1 SEAT LEG, RH

9010908271

Крепеж

9010910089

Крепеж

9011908766

Крепеж

9011908766

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017912032

Крепеж

9017912032

Крепеж

9017912032

Крепеж

9020115015

Крепеж

9038610036

Крепеж

9046313003

Крепеж

9151581025

Крепеж

9151581025

Крепеж

91611G0612

Крепеж

9324955006

Крепеж

9418560800

Крепеж

9454201400

Крепеж

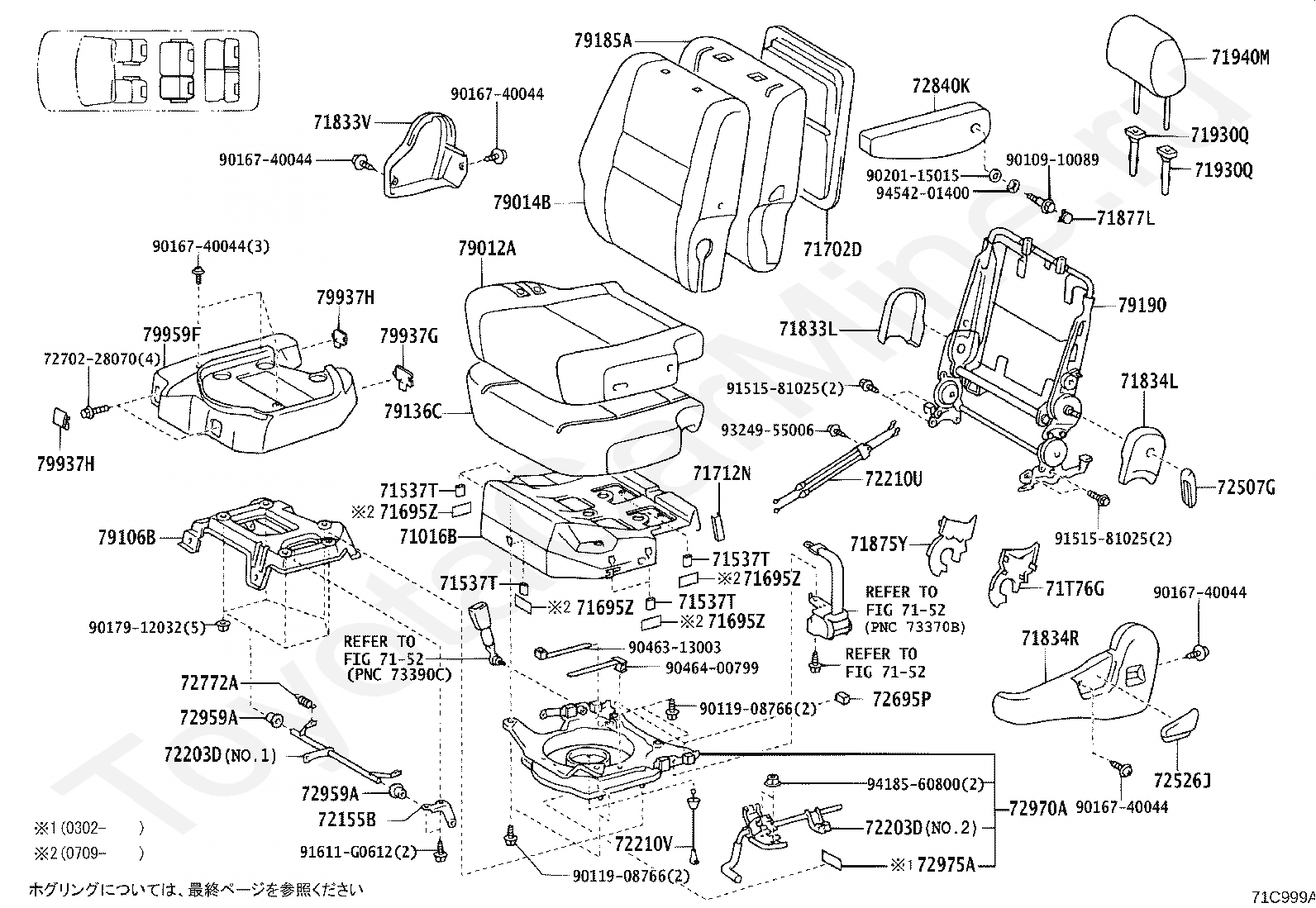

Код

Описание

71016B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71537T

PROTECTOR, REAR SEAT CUSHION, NO.1

71695Z

PROTECTOR, REAR SEAT, NO.1 LH

71695Z

PROTECTOR, REAR SEAT, NO.1 LH

71695Z

PROTECTOR, REAR SEAT, NO.1 LH

71695Z

PROTECTOR, REAR SEAT, NO.1 LH

71702D

BOARD SUB-ASSY, REAR SEAT BACK, LH

71712N

COVER, SIDE SEAT CUSHION, REAR

71833L

COVER, REAR SEAT RECLINING, RH

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834L

COVER, REAR SEAT RECLINING, LH

71834R

COVER, REAR SEAT RECLINING, LH

71875Y

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT BACK)

71877L

COVER, REAR SEAT ARMREST HOLE LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

71T76G

COVER, RECLINING ADJUSTER INSIDE, LH

72155B

BRACKET, SEAT TRACK HANDLE SUPPORT

72203D

HANDLE SUB-ASSY, REAR SEAT TRACK, LH

72203D

HANDLE SUB-ASSY, REAR SEAT TRACK, LH

72210U

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH

72210V

CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1

72507G

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72695P

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

7270228070

Крепеж

72772A

SPRING, REAR SEAT TURN NO.2

72840K

ARMREST ASSY, REAR NO.1 SEAT, LH

72959A

SPACER, REAR SEAT TURN SIDE

72959A

SPACER, REAR SEAT TURN SIDE

72970A

TABLE ASSY, NO.1 SEAT TURN, LH

72975A

PROTECTOR, REAR SEAT TURN PLATE

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79190

SPRING ASSY, NO.1 SEAT BACK, LH

79937G

COVER, REAR SEAT LEG, NO.2

79937H

COVER, REAR SEAT LEG, NO.2

79937H

COVER, REAR SEAT LEG, NO.2

79959F

COVER, NO.1 SEAT LEG, LH

9010910089

Крепеж

9011908766

Крепеж

9011908766

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017912032

Крепеж

9020115015

Крепеж

9046313003

Крепеж

9046400799

Крепеж

9151581025

Крепеж

9151581025

Крепеж

91611G0612

Крепеж

9324955006

Крепеж

9418560800

Крепеж

9454201400

Крепеж

Код

Описание

7124858010

Крепеж

71303E

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

7152

переход к группе запчастей

7152

переход к группе запчастей

71691Q

COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71695T

PROTECTOR, REAR SEAT, NO.2

71843

COVER, REAR SEAT RECLINING, NO.2 RH

71878G

COVER, NO.3 SEAT RECLINING, INNER RH

71878H

COVER, REAR SEAT RECLINING, INNER RH

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71878K

COVER, REAR NO.2 SEAT RECLINING, INNER RH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

72057E

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

72065D

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

72210Y

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1

72210Y

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1

72211H

HANDLE, SEAT TRACK ADJUSTING, RH

72226A

BRACKET, SEAT TRACK, NO.1

72265P

COVER, SEAT TRACK UPPER RAIL, RH

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

72551V

CLIP(FOR RECLINING HINGE)

72551V

CLIP(FOR RECLINING HINGE)

72551V

CLIP(FOR RECLINING HINGE)

72665H

COVER, REAR SEAT BACK LOCK

72665J

COVER, REAR SEAT LOCK, RH

72681E

HOOK, REAR SEAT

7270258060

Крепеж

7282558010

Крепеж

72877F

COVER, SEAT ARMREST

72890D

ARMREST ASSY, NO.2 SEAT, C LH(FOR RH SEAT)

72927F

COVER, REAR SEAT CUSHION UNDER, RH

72995F

COVER, REAR SEAT CUSHION, RH

7889958010

Крепеж

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79275F

PAD, NO.2 SEAT BACK, RH

79621B

STOPPER, NO.2 SEAT CUSHION

79621B

STOPPER, NO.2 SEAT CUSHION

79959G

COVER, NO.2 SEAT LEG, RH NO.1

9010508271

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9020120016

Крепеж

9020612003

Крепеж

9046313003

Крепеж

9321056016

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356054008

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9454201400

Крепеж

Код

Описание

7124858010

Крепеж

71302H

STOPPER SUB-ASSY, REAR SEAT LEG

71304A

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

71615F

PAD, REAR SEAT CUSHION, E

71691Q

COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71695T

PROTECTOR, REAR SEAT, NO.2

71844H

COVER, REAR SEAT RECLINING, NO.2 LH

71879G

COVER, NO.3 SEAT RECLINING, INNER LH

71879H

COVER, REAR SEAT RECLINING, INNER LH

71879J

COVER, REAR NO.1 SEAT RECLINING, INNER LH

71879K

COVER, REAR NO.2 SEAT RECLINING, INNER LH

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

72057G

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1

72065E

HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

72125G

COVER, SEAT TRACK LOCK PLATE, NO.1

72125H

COVER, SEAT TRACK LOCK PLATE, NO.2

72210Z

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2

72210Z

CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2

72211J

HANDLE, SEAT TRACK ADJUSTING, LH

72266J

COVER, SEAT TRACK UPPER RAIL, LH

72526K

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH

72551V

CLIP(FOR RECLINING HINGE)

72551V

CLIP(FOR RECLINING HINGE)

72551V

CLIP(FOR RECLINING HINGE)

72665H

COVER, REAR SEAT BACK LOCK

72666F

COVER, REAR SEAT LOCK, LH

72681E

HOOK, REAR SEAT

7270258060

Крепеж

7282558010

Крепеж

72877F

COVER, SEAT ARMREST

72880E

ARMREST ASSY, NO.2 SEAT, C RH(FOR LH SEAT)

72928E

COVER, REAR SEAT CUSHION UNDER, LH

72995K

COVER, REAR NO.2 SEAT CUSHION

7889958010

Крепеж

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

79285C

PAD, NO.2 SEAT BACK, LH

79621B

STOPPER, NO.2 SEAT CUSHION

79621B

STOPPER, NO.2 SEAT CUSHION

79959J

COVER, NO.2 SEAT LEG, LH NO.1

9010508235

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9020120016

Крепеж

9020612003

Крепеж

9046313003

Крепеж

9046816019

Крепеж

9321056016

Крепеж

9353054010

Крепеж

9353054010

Крепеж

9356054008

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9356054014

Крепеж

9454201400

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
