Каталог

Ближний Восток

Модель

AGYA/WIGO

VIN

Дата

2014/01

Двигатель

1 литр

Класс

MULTI INFORMATION DISPLAY

Фрейм

B100

КПП

механика

Опции

левый руль 5 дверей WIGO D64G

Боковая панель кузова TOYOTA AGYA/WIGO

Код

Описание

5701

переход к группе запчастей

59199A

SEAL, NOISE SHUTTER, NO.2

60131

PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61131C

PILLAR, FRONT BODY, OUTER RH

61201

RAIL SUB-ASSY, ROOF SIDE, RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61247B

REINFORCEMENT, ROOF SIDE RAIL, INNER RH

61311B

PILLAR, CENTER BODY, OUTER RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61411

PANEL, ROCKER, OUTER RH

9004871113

Крепеж

9004871141

Крепеж

Код

Описание

5701

переход к группе запчастей

59199A

SEAL, NOISE SHUTTER, NO.2

60132

PILLAR SUB-ASSY, CENTER BODY, NO.2 LH

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61132B

PILLAR, FRONT BODY, OUTER LH

61202

RAIL SUB-ASSY, ROOF SIDE, LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61248B

REINFORCEMENT, ROOF SIDE RAIL, INNER LH

61312B

PILLAR, CENTER BODY, OUTER LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61412

PANEL, ROCKER, OUTER LH

9004871113

Крепеж

9004871141

Крепеж

Код

Описание

5701

переход к группе запчастей

61233A

RAIL, ROOF SIDE, INNER NO.2 RH

61503B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

61605A

REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH

61607H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

61611

PANEL, QUARTER, RH

61611E

REINFORCEMENT, QUARTER PANEL, RH

61617B

PANEL, QUARTER INNER, LOWER RH

61625G

EXTENSION, QUARTER PANEL, REAR RH

61627A

EXTENSION, QUARTER PANEL, LOWER RH

61641C

GUSSET, QUARTER WHEEL HOUSE, FRONT RH

61645K

GUSSET, QUARTER WHEEL HOUSE INNER, RH

61661A

EXTENSION, QUARTER PANEL TO UPPER BACK, RH

61665B

REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

61695A

BRACE, QUARTER PANEL, RH

61731B

PANEL, ROOF SIDE, INNER RH

61764B

REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

61768B

REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

61771B

FRAME, BACK DOOR OPENING UPPER CORNER, RH

62155B

PAD, QUARTER PANEL

64118A

REINFORCEMENT, UPPER BACK, NO.4 RH

65637

LINER, REAR WHEEL HOUSE, RH

9004A35005

Крепеж

9004A46323

Крепеж

9004A46323

Крепеж

9004A46380

Крепеж

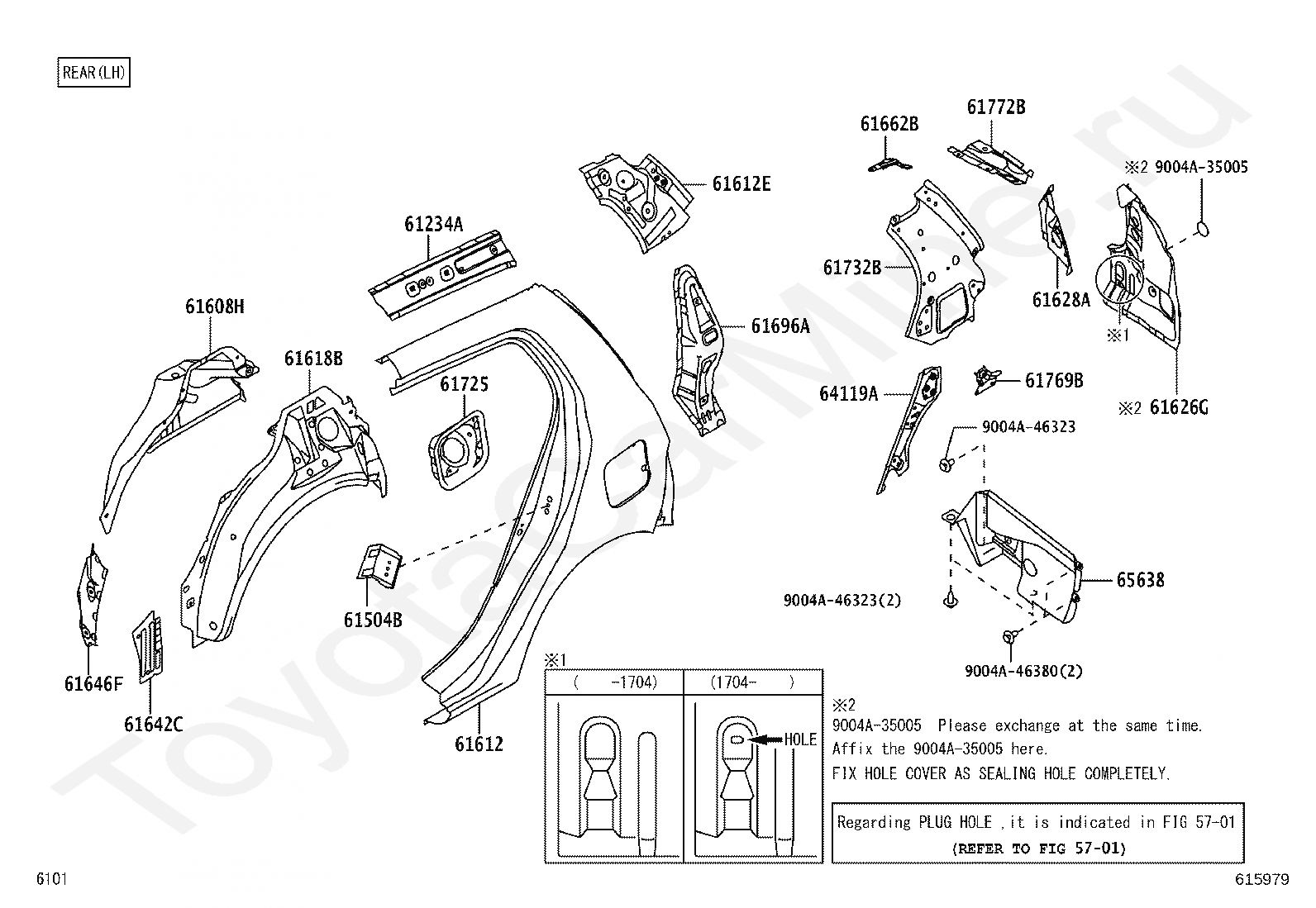

Код

Описание

5701

переход к группе запчастей

61234A

RAIL, ROOF SIDE, INNER NO.2 LH

61504B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

61608H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH

61612

PANEL, QUARTER, LH

61612E

REINFORCEMENT, QUARTER PANEL, LH

61618B

PANEL, QUARTER, INNER LOWER LH

61626G

EXTENSION, QUARTER PANEL, REAR LH

61628A

EXTENSION, QUARTER PANEL, LOWER LH

61642C

GUSSET, QUARTER WHEEL HOUSE, FRONT LH

61646F

GUSSET, QUARTER WHEEL HOUSE INNER, LH

61662B

EXTENSION, QUARTER PANEL TO UPPER BACK, LH

61696A

BRACE, QUARTER PANEL, LH

61725

BOX, FUEL INLET

61732B

PANEL, ROOF SIDE, INNER LH

61769B

REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

61772B

FRAME, BACK DOOR OPENING UPPER CORNER, LH

64119A

REINFORCEMENT, UPPER BACK, NO.4 LH

65638

LINER, REAR WHEEL HOUSE, LH

9004A35005

Крепеж

9004A46323

Крепеж

9004A46323

Крепеж

9004A46380

Крепеж
