Европа

Модель

4-RUNNER TRUCK (JPP)

VIN

Дата

1989/04

Двигатель

2,4 литра, EFI

Кузов

4 двери

Класс

SR-5 TYPE,GLX TYPE

Фрейм

RN130

КПП

механика МКПП, 5 скоростей

Опции

фургон GRAMS электронная система впрыска топлива США CBU JPP

Кресла TOYOTA 4-RUNNER TRUCK (JPP)







Код

Описание

71071B

COVER, FRONT SEAT CUSHION(FOR BENCH TYPE)

71073B

COVER, FRONT SEAT BACK(FOR BENCH TYPE)

71311

PIN, FRONT SEAT HINGE

71379A

STOPPER, FRONT SEAT VERTICAL HANDLE

71511B

PAD, FRONT SEAT CUSHION(FOR BENCH TYPE)

71551B

PAD, FRONT SEAT BACK(FOR BENCH TYPE)

71561B

PAD, FRONT SEAT BACK, UPPER

71561B

PAD, FRONT SEAT BACK, UPPER

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610B

SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)

71630B

SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE)

71739

CUSHION, SEAT SUPPORT

71897

HOOK, SEAT COVER SIDE

9046818071

Крепеж

9046818071

Крепеж

9356015025

Крепеж

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71739

CUSHION, SEAT SUPPORT

71739

CUSHION, SEAT SUPPORT

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9356015025

Крепеж

9356015025

Крепеж

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71182

HOLDER, FRONT SEAT ARMREST

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71739

CUSHION, SEAT SUPPORT

71739

CUSHION, SEAT SUPPORT

71897

HOOK, SEAT COVER SIDE

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72830E

ARMREST ASSY, FRONT SEAT

72833A

PLATE, SEAT CENTER ARMREST, INNER

9010106025

Крепеж

9017908146

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9356015025

Крепеж

9356015025

Крепеж

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71581A

PAD, FRONT SEAT BACK CORNER, A

71581A

PAD, FRONT SEAT BACK CORNER, A

71582

PAD, FRONT SEAT BACK CORNER, B

71582

PAD, FRONT SEAT BACK CORNER, B

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71739

CUSHION, SEAT SUPPORT

71739

CUSHION, SEAT SUPPORT

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72457

KNOB, VERTICAL SEAT ADJUSTER

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

72791

LEVER, LUMBAR SUPPORT

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9052001002

Крепеж

9052001006

Крепеж

9356015025

Крепеж

9356015025

Крепеж

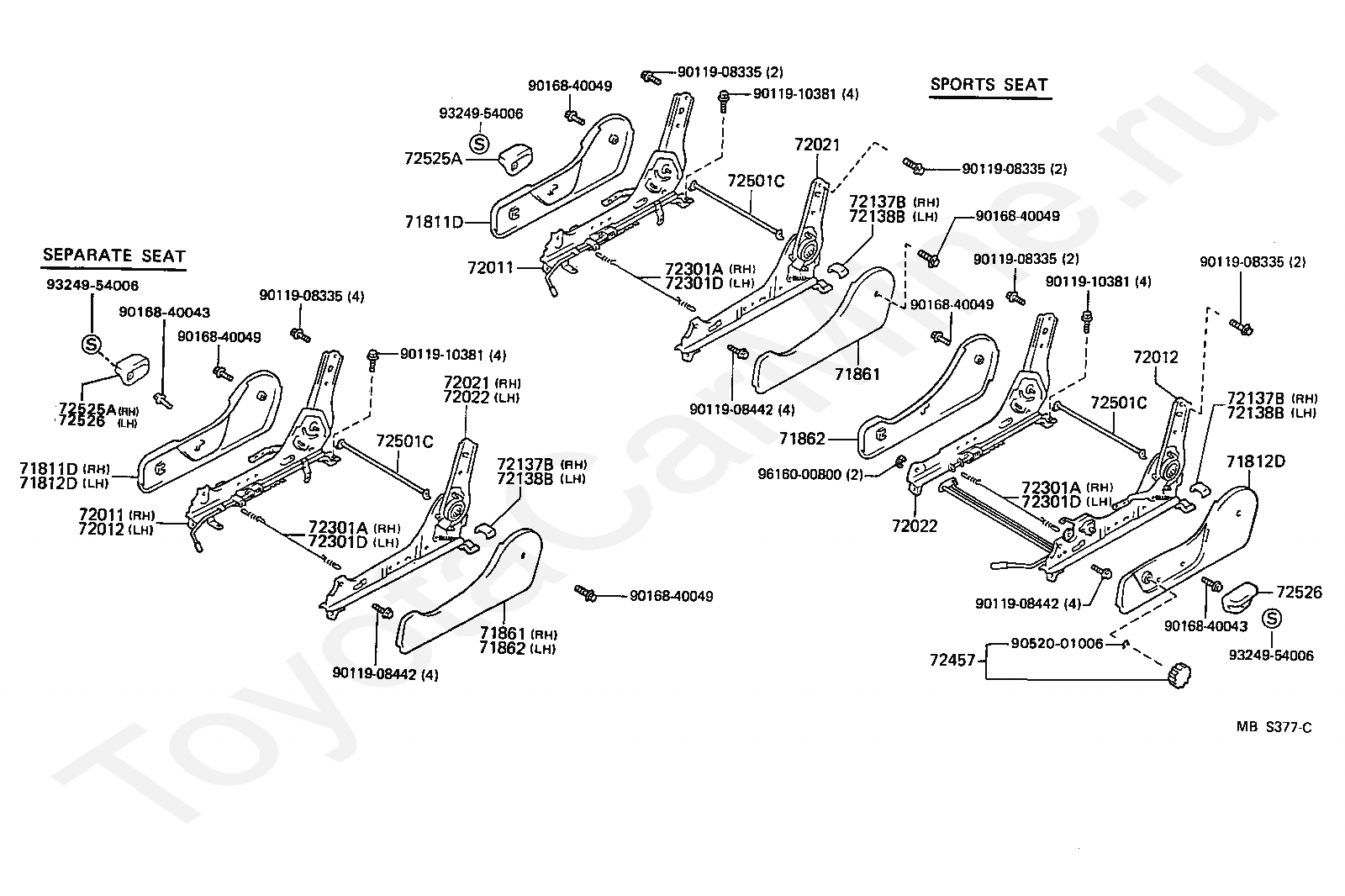

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137B

COVER, SEAT TRACK, RH

72137B

COVER, SEAT TRACK, RH

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72138B

COVER, SEAT TRACK, LH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72210

CABLE ASSY, SEAT TRACK CONTROL

72210

CABLE ASSY, SEAT TRACK CONTROL

72210

CABLE ASSY, SEAT TRACK CONTROL

72210E

CABLE ASSY, SEAT TRACK CONTROL(FOR WALK IN)

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72520D

ADJUSTER ASSY, RECLINING SEAT, OUTER LH

72520D

ADJUSTER ASSY, RECLINING SEAT, OUTER LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72540A

ADJUSTER ASSY, RECLINING SEAT, INNER LH

72540A

ADJUSTER ASSY, RECLINING SEAT, INNER LH

72551B

COVER, RECLINING HINGE, RH

9011908335

Крепеж

9011908335

Крепеж

9011908335

Крепеж

9011908335

Крепеж

9011908335

Крепеж

9011908335

Крепеж

9011908442

Крепеж

9011908442

Крепеж

9011908442

Крепеж

9011908442

Крепеж

9011908442

Крепеж

9011908442

Крепеж

9011908442

Крепеж

9011908442

Крепеж

9011910084

Крепеж

9011910381

Крепеж

9011910381

Крепеж

9011910381

Крепеж

9011910381

Крепеж

9011910381

Крепеж

9015480002

Крепеж

9016840011

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9017908073

Крепеж

9038612053

Крепеж

9050618036

Крепеж

9324954006

Крепеж

9324954006

Крепеж

9324954006

Крепеж

9324954006

Крепеж

9356055014

Крепеж

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72137B

COVER, SEAT TRACK, RH

72137B

COVER, SEAT TRACK, RH

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72138B

COVER, SEAT TRACK, LH

72138B

COVER, SEAT TRACK, LH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72457

KNOB, VERTICAL SEAT ADJUSTER

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72501C

PIPE SUB-ASSY, RECLINING CONNECTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011908335

Крепеж

9011908335

Крепеж

9011908335

Крепеж

9011908335

Крепеж

9011908335

Крепеж

9011908442

Крепеж

9011908442

Крепеж

9011908442

Крепеж

9011910381

Крепеж

9011910381

Крепеж

9011910381

Крепеж

9016840043

Крепеж

9016840043

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9016840049

Крепеж

9052001006

Крепеж

9324954006

Крепеж

9324954006

Крепеж

9324954006

Крепеж

9616000800

Крепеж

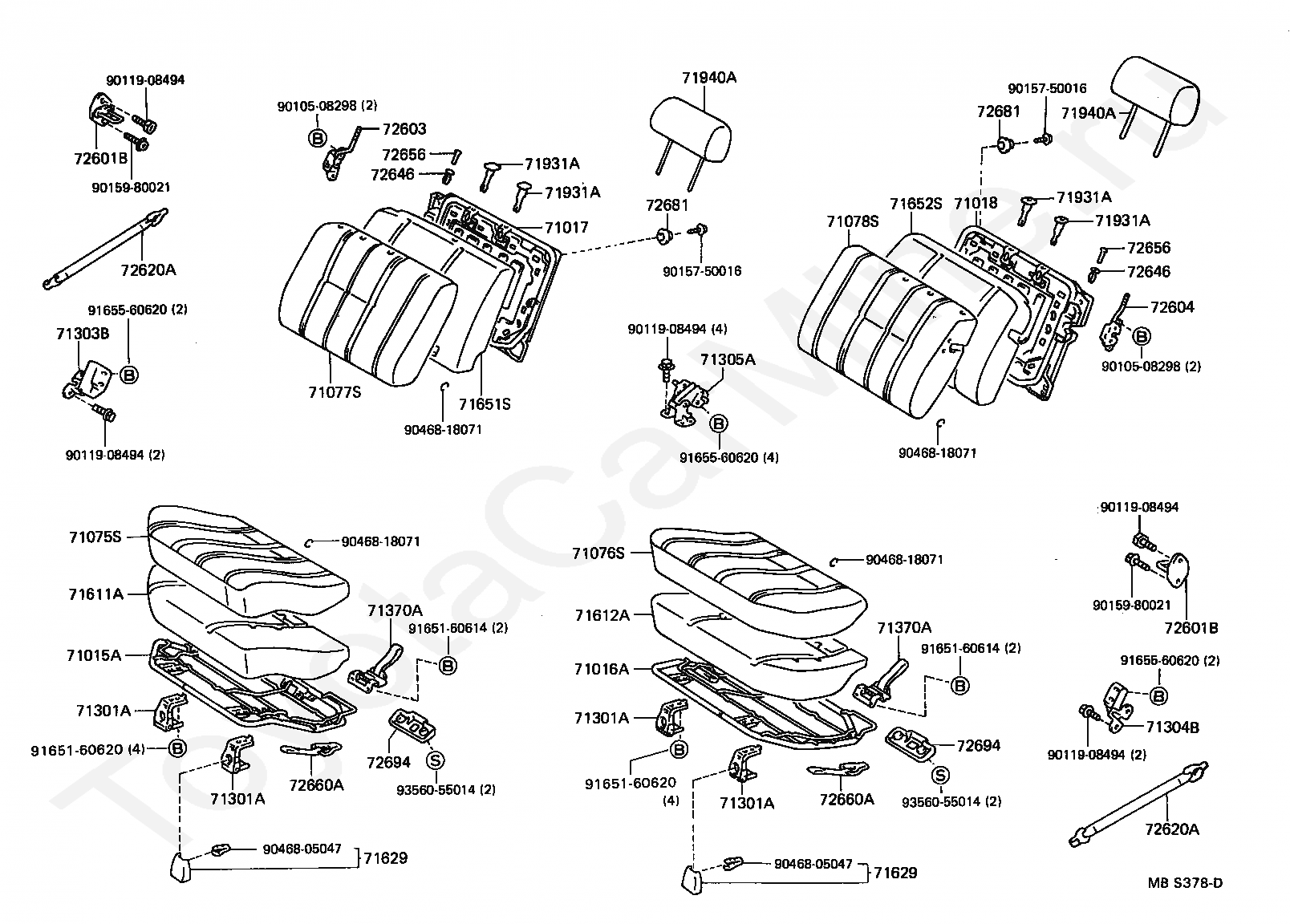

Код

Описание

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71303B

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

71304B

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71344A

PLATE, REAR SEAT CUSHION HINGE

71495

SPRING, REAR SEAT CUSION

71611

PAD, REAR SEAT CUSHION

71628E

SPACER, REAR SEAT CUSHION

71629A

COVER, REAR SEAT CUSHION HINGE, RH

71639

COVER, REAR SEAT CUSHION HINGE, LH

71691D

COVER, REAR SEAT CUSHION HINGE, UPPER RH

71692D

COVER, REAR SEAT CUSHION HINGE, UPPER LH

71693

COVER, REAR SEAT CUSHION HINGE, LOWER RH

71694

COVER, REAR SEAT CUSHION HINGE, LOWER LH

72955A

PLATE, REAR SEAT TURN LOCK, NO.1

72956

PLATE, REAR SEAT TURN LOCK, NO.2

9017908146

Крепеж

9165660614

Крепеж

9356054012

Крепеж

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71301A

HINGE SUB-ASSY, REAR SEAT CUSHION

71301A

HINGE SUB-ASSY, REAR SEAT CUSHION

71301A

HINGE SUB-ASSY, REAR SEAT CUSHION

71301A

HINGE SUB-ASSY, REAR SEAT CUSHION

71303B

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

71304B

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71370A

HOLDER ASSY, REAR SEAT CUSHION

71370A

HOLDER ASSY, REAR SEAT CUSHION

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71629

COVER, REAR SEAT CUSHION HINGE

71629

COVER, REAR SEAT CUSHION HINGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72603

LOCK SUB-ASSY, REAR SEAT BACK, RH

72604

LOCK SUB-ASSY, REAR SEAT BACK, LH

72620A

PROTECTOR ASSY, REAR SEAT BACK

72620A

PROTECTOR ASSY, REAR SEAT BACK

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72656

BUTTON, REAR SEAT BACK STOP RELEASE

72656

BUTTON, REAR SEAT BACK STOP RELEASE

72660A

SUPPORT ASSY, REAR SEAT CUSHION

72660A

SUPPORT ASSY, REAR SEAT CUSHION

72681

HOOK, REAR SEAT BACK LOCK, LOWER

72681

HOOK, REAR SEAT BACK LOCK, LOWER

72694

COVER, REAR SEAT CUSHION LOCK

72694

COVER, REAR SEAT CUSHION LOCK

9010508298

Крепеж

9010508298

Крепеж

9011908494

Крепеж

9011908494

Крепеж

9011908494

Крепеж

9011908494

Крепеж

9011908494

Крепеж

9015750016

Крепеж

9015750016

Крепеж

9015980021

Крепеж

9015980021

Крепеж

9046805047

Крепеж

9046805047

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160620

Крепеж

9165160620

Крепеж

9165560620

Крепеж

9165560620

Крепеж

9165560620

Крепеж

9356055014

Крепеж

9356055014

Крепеж

> Запчасти 4-RUNNER TRUCK (JPP) > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
