Каталог

Европа

Модель

4-RUNNER TRUCK

VIN

Дата

1987/08

Двигатель

2,4 литра

Кузов

LOW DECK (STANDARD DECK)

Класс

DELUX SPECIFICATION

Фрейм

RN55

КПП

механика МКПП, 5 скоростей

Опции

RENT-A-CAR SPECIFICATION PACKAGE B GRAMS 0,5 тонны SINGAPORE TAXI USA CBR IV

Рулевая рейка и наконечники TOYOTA 4-RUNNER TRUCK







Код

Описание

4501

переход к группе запчастей

4501

переход к группе запчастей

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45406

ROD SUB-ASSY, TIE, RH

45406A

NUT, CASTLE(FOR TIE ROD)

45406A

NUT, CASTLE(FOR TIE ROD)

45407

ROD SUB-ASSY, TIE, LH

45409A

BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

45409C

NUT(FOR IDLER ARM SUPPORT)

45409D

BUSH(FOR IDLER ARM)

45409D

BUSH(FOR IDLER ARM)

45409E

SEAL, DUST(FOR IDLER ARM SUPPORT)

45451

ROD, STEERING RELAY

45460

ROD ASSY, TIE, RH

45461

ROD, STEERING TIE

45461

ROD, STEERING TIE

45466

CLAMP, TIE ROD END

45466

CLAMP, TIE ROD END

45470

ROD ASSY, TIE, LH

45490

ARM ASSY, STEERING IDLER

45490A

NUT, CASTLE(FOR IDLER ARM)

45611

ARM, STEERING KNUCKLE, RH

45611A

BOLT, KNUCKLE STOPPER

45611A

BOLT, KNUCKLE STOPPER

45612

ARM, STEERING KNUCKLE, LH

45619

COVER, KNUCKLE STOPPER

45619

COVER, KNUCKLE STOPPER

45700

DAMPER ASSY, STEERING

45700A

NUT(FOR STEERING DAMPER)

45700A

NUT(FOR STEERING DAMPER)

45700A

NUT(FOR STEERING DAMPER)

45700D

CUSHION, STEERING DAMPER

45700D

CUSHION, STEERING DAMPER

45700F

RETAINER, STEERING DAMPER CUSHION

45700F

RETAINER, STEERING DAMPER CUSHION

45700F

RETAINER, STEERING DAMPER CUSHION

9010108057

Крепеж

9017010021

Крепеж

9017010082

Крепеж

9017010082

Крепеж

9020110012

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9453101000

Крепеж

9453101000

Крепеж

9538103020

Крепеж

9538103022

Крепеж

9538103022

Крепеж

9538103022

Крепеж

9538103022

Крепеж

9538103022

Крепеж

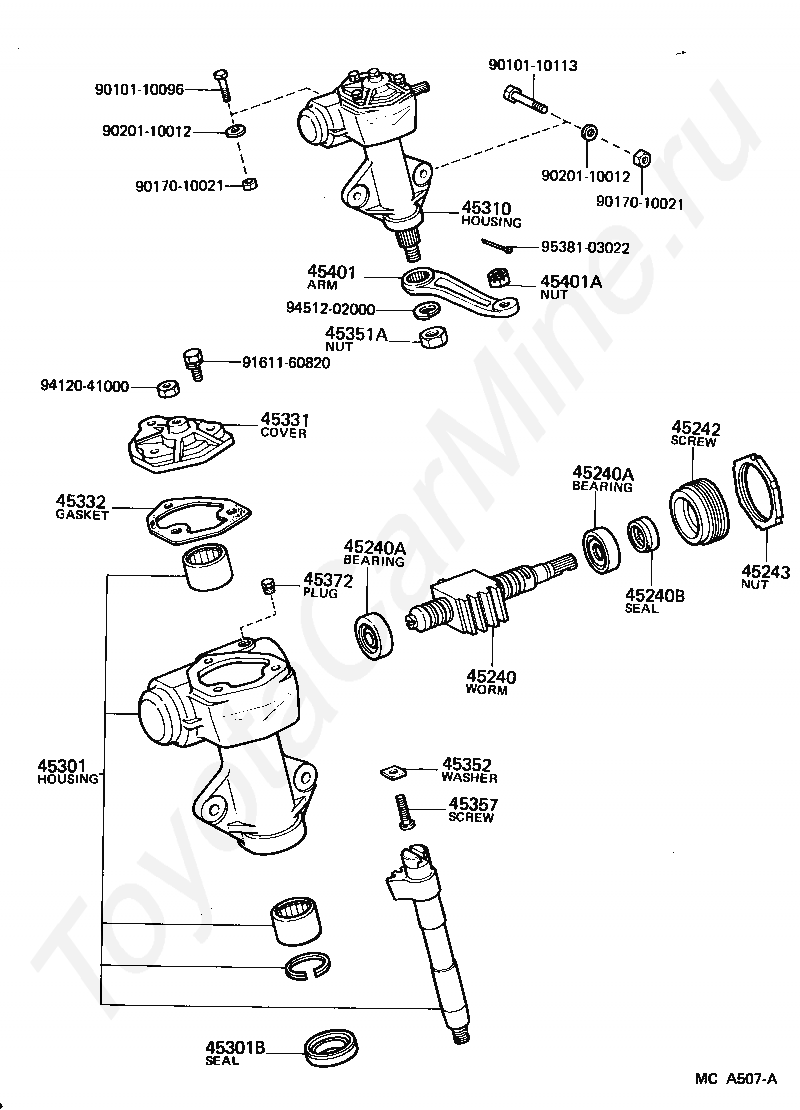

Код

Описание

45240

WORM ASSY, STEERING

45240A

BEARING(FOR STEERING WORM)

45240A

BEARING(FOR STEERING WORM)

45240B

SEAL, OIL(FOR STEERING WORM)

45242

SCREW, WORM BEARING ADJUSTING

45243

NUT, WORM BEARING ADJUSTING SCREW LOCK

45301

HOUSING SUB-ASSY, STEERING GEAR

45301B

SEAL, OIL(FOR SECTOR SHAFT)

45310

HOUSING ASSY, STEERING GEAR

45331

COVER, SECTOR SHAFT END

45332

GASKET, SECTOR SHAFT END COVER

45351A

NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

45352

WASHER, SECTOR SHAFT THRUST

45357

SCREW, SECTOR SHAFT ADJUSTING

45372

PLUG, STEERING GEAR HOUSING OIL

45401

ARM SUB-ASSY, PITMAN

45401A

NUT, CASTLE(FOR PITMAN ARM)

9010110096

Крепеж

9010110113

Крепеж

9017010021

Крепеж

9017010021

Крепеж

9020110012

Крепеж

9020110012

Крепеж

9161160820

Крепеж

9412041000

Крепеж

9451202000

Крепеж

9538103022

Крепеж

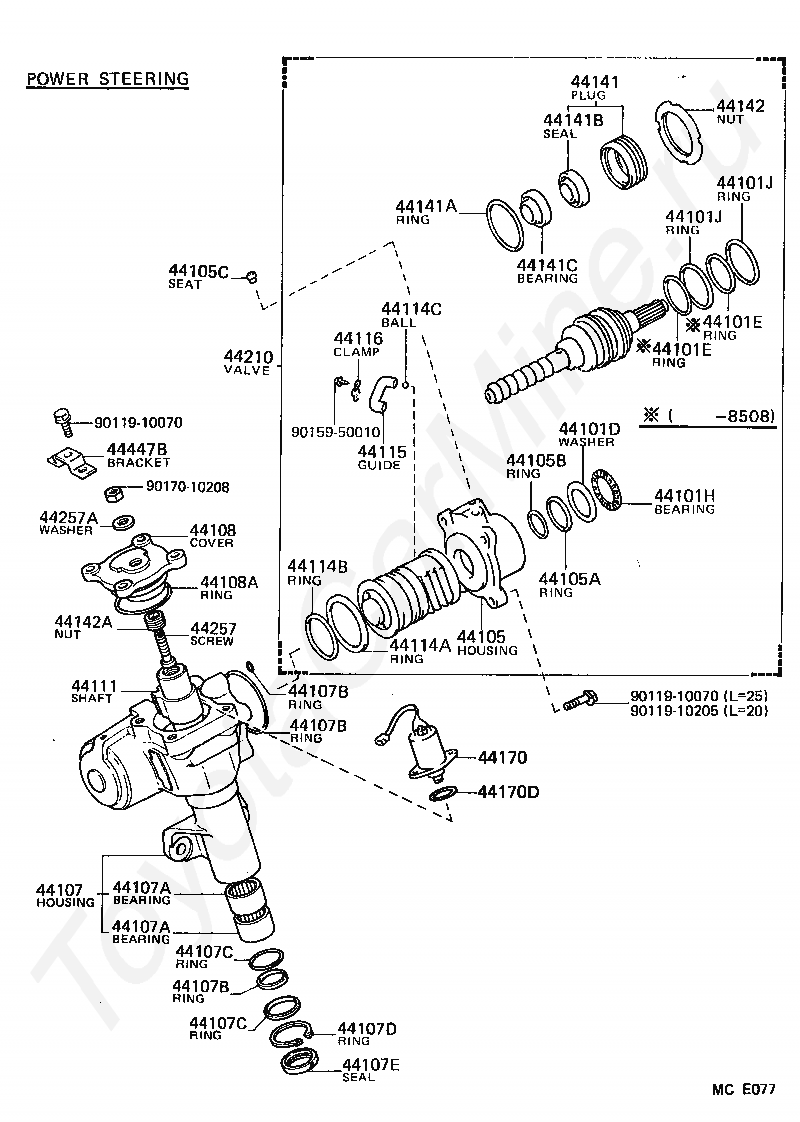

Код

Описание

04044

WARM KIT, POWER STEERING

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

04455A

GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

44110

GEAR ASSY, POWER STEERING

44111A

NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

44251

ARM, PITMAN

44251A

NUT, CASTLE(FOR PITMAN ARM)

9010110096

Крепеж

9010110113

Крепеж

9017010021

Крепеж

9017010021

Крепеж

9020110012

Крепеж

9020110012

Крепеж

9451202000

Крепеж

9538103022

Крепеж

Код

Описание

44101D

WASHER, PLATE(FOR STEERING WORM)

44101E

RING, O(FOR STEERING WORM)

44101E

RING, O(FOR STEERING WORM)

44101H

BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44105

HOUSING SUB-ASSY, VALVE

44105A

RING, O(FOR VALVE HOUSING)

44105B

RING(FOR VALVE HOUSING)

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107D

RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44108

COVER SUB-ASSY, SIDE

44108A

RING, O(FOR SIDE COVER)

44111

SHAFT, CROSS

44114A

RING(FOR POWER PISTON NUT)

44114B

RING, O(FOR POWER PISTON NUT)

44114C

BALL(FOR POWER PISTON NUT)

44115

GUIDE, BALL

44116

CLAMP, BALL GUIDE

44141

PLUG, ADJUSTER

44141A

RING, O(FOR ADJUSTER PLUG)

44141B

SEAL, OIL(FOR ADJUSTER PLUG)

44141C

BEARING(FOR ADJUSTER PLUG)

44142

NUT, LOCK

44142A

NUT, LOCK, NO.1

44170

VALVE ASSY, SOLENOID(FOR POWER STEERING)

44170D

RING, O(FOR POWER STEERING SOLENOID VALVE)

44210

VALVE ASSY, POWER STEERING CONTROL

44257

SCREW, CROSS SHAFT ADJUSTING

44257A

WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)

44447B

BRACKET, HOSE SUPPORT, NO.1

9011910070

Крепеж

9011910070

Крепеж

9011910205

Крепеж

9015950010

Крепеж

9017010208

Крепеж
